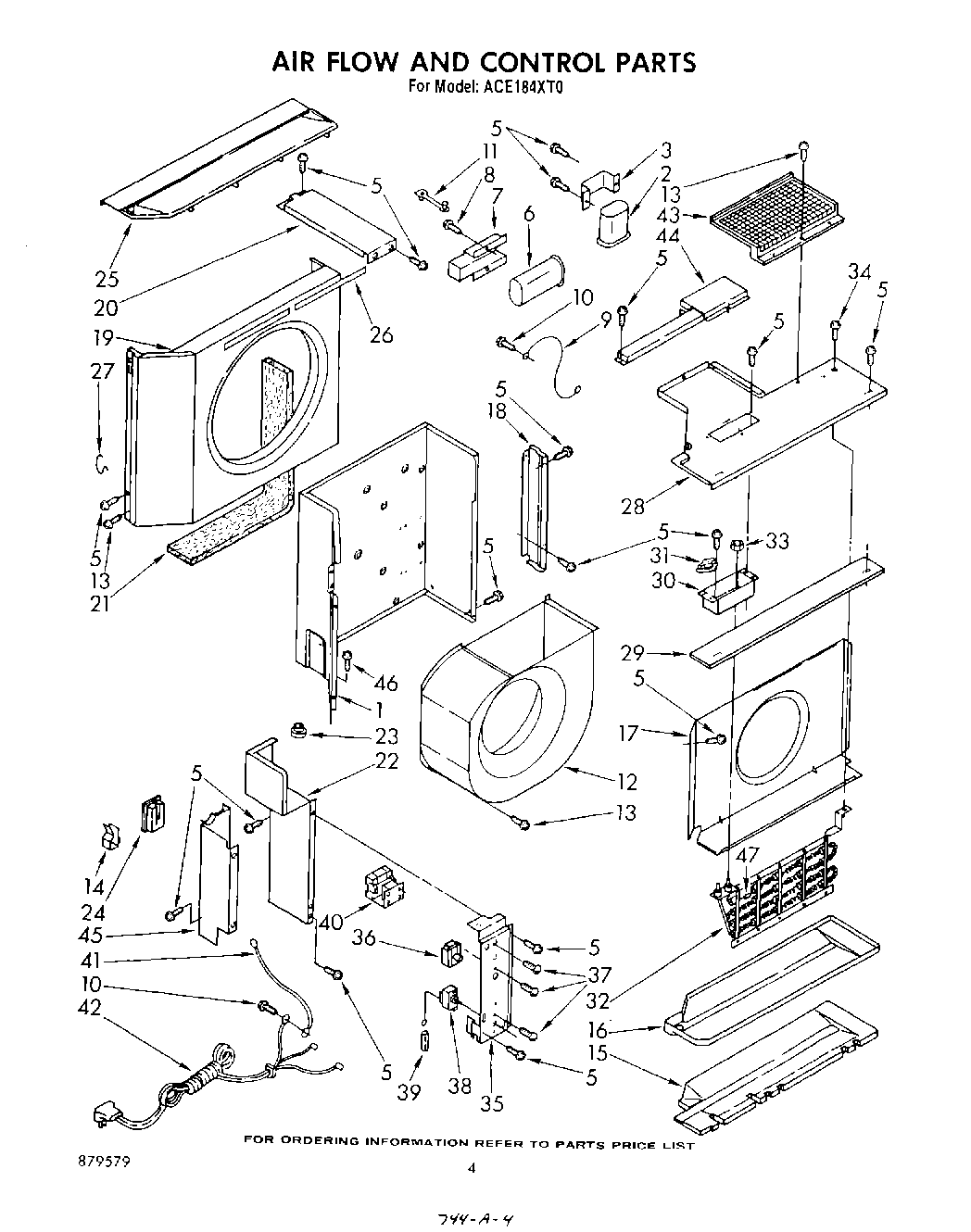

ACE184XT0 03 – AIRFLOW AND CONTROL

Products

Position	Product
1	Wall, Dividing
2	Capacitor, Run
3	Bracket (Lower)
5	WP308685 Whirlpool Microwave Screw
5	WP489069 Whirlpool Compactor Screw
6	Capacitor, Fan
7	Bracket, Fan Capacitor (Shield)
9	Wire, Ground (2)
10	WPW10141604 Whirlpool Screw
11	Clamp, Cable
12	Housing, Blower Wheel
13	WP488729 Whirlpool Refrigerator Door Screw
14	Clamp, Cable
15	Insulation, Pan
16	Pan, Condensate
17	Deflector, Heater
18	Plate, Adapter
19	Shroud, Condenser
20	support, unit (2)
21	Seal, Condenser Fin
22	Extension, Dividing Wall
23	Bushing
24	Seal, Tube
25	Cover, Condenser Shroud
26	seal, strip (shroud) (side)
26	WP854334 Whirlpool Air Conditioner Sealing Strip
27	Clip, Shroud (2)
28	Cover, Evaporator
29	Insulation, Cover
30	Bracket, Heater
31	Switch, Limit
32	Heater, Air
33	WP488826 Whirlpool Nut
34	WP488234 Whirlpool Air Conditioner Screw
35	Panel, Control
36	Switch, Rotary
37	Screw, 6-32 x .175
38	Control, Temperature
39	Sleeve, Insulator
40	Contactor
41	Wire, Ground
42	Cable, Appliance
43	Guard, Evaporator Impeller
44	Cover, Heater
45	Cover, Controls
46	Screw, 8 x 3/8
47	Fuse, Heater
