ACE184XT1 04 – CABINET

ACE184XT1 04 – CABINET

Written by

in

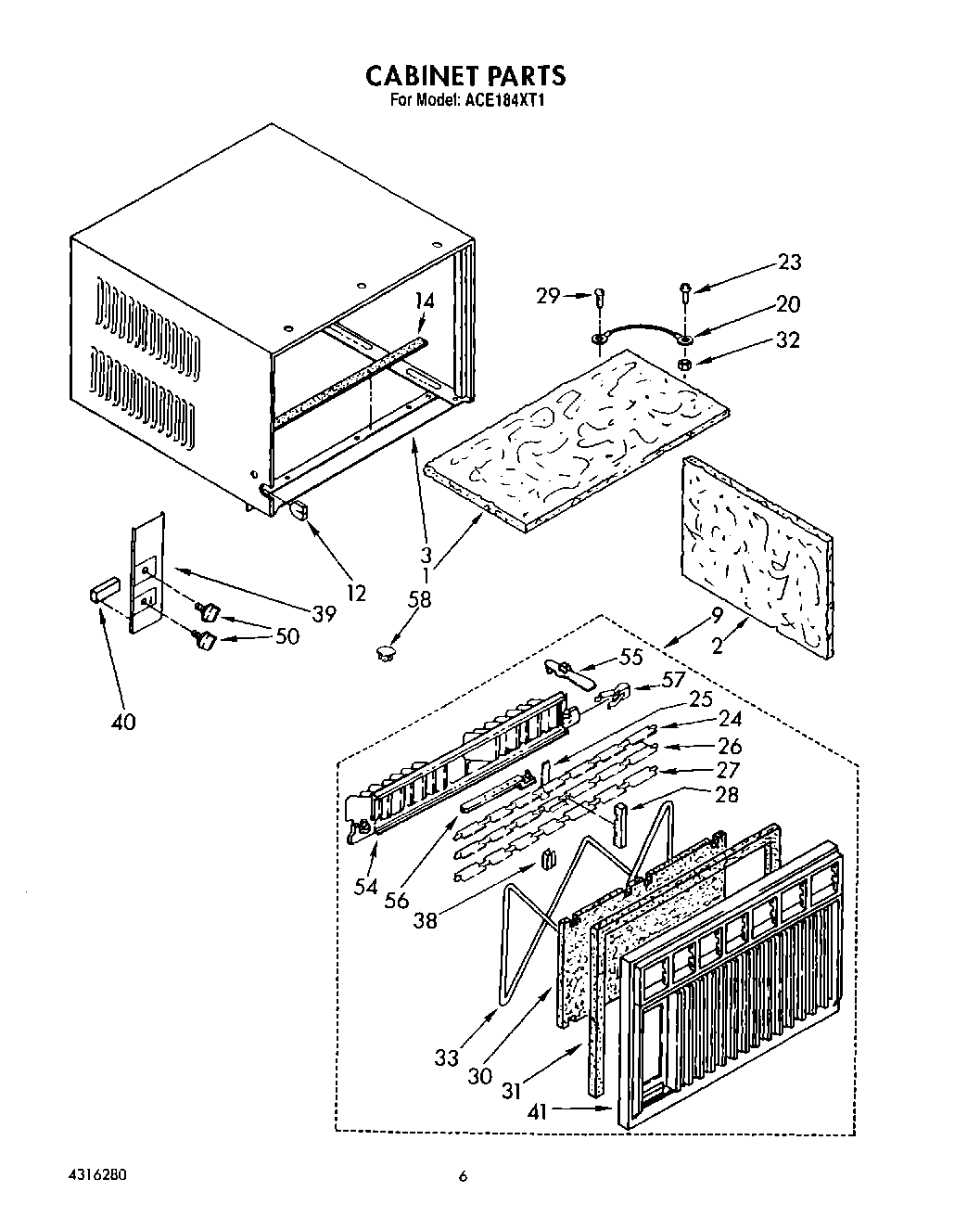

ACE184XT1 04 – CABINET

Products

PositionProduct
1Insulation Cabinet
2Cabinet Insulation (Left Side)
2Cabinet Insulation (Right Side)
3Cabinet
9Front, Cabinet (Complete)
12Grommet, Appliance Cable
14Seal, Bottom
20Ground Wire (Base To Cabinet)
23Screw, 8 x 3/8
24Louver, Horizontal (4)
25Retainer (4)
26Louver, Horizontal (Handle)
27Louver, Horizontal (Relieved)
28Rack, Louver (2)
29Screw, 8 x 3/8
30Filter, Air
31Seal, Front (Top & Sides)
31Seal, Front (Bottom)
32WP486255 Whirlpool Air Conditioner Nut
33Retainer, Filter
38Clip, Retainer (4)
39Plate, Escutcheon
40Spacer, Escutcheon Plate (2)
41Frame, Front
50Knob, Control
54Louver, Vertical
55Handle, Vertical Louver (2)
56Link, Vertical Louver (2)
57Detent Spring (2)
58Cover, Hole
