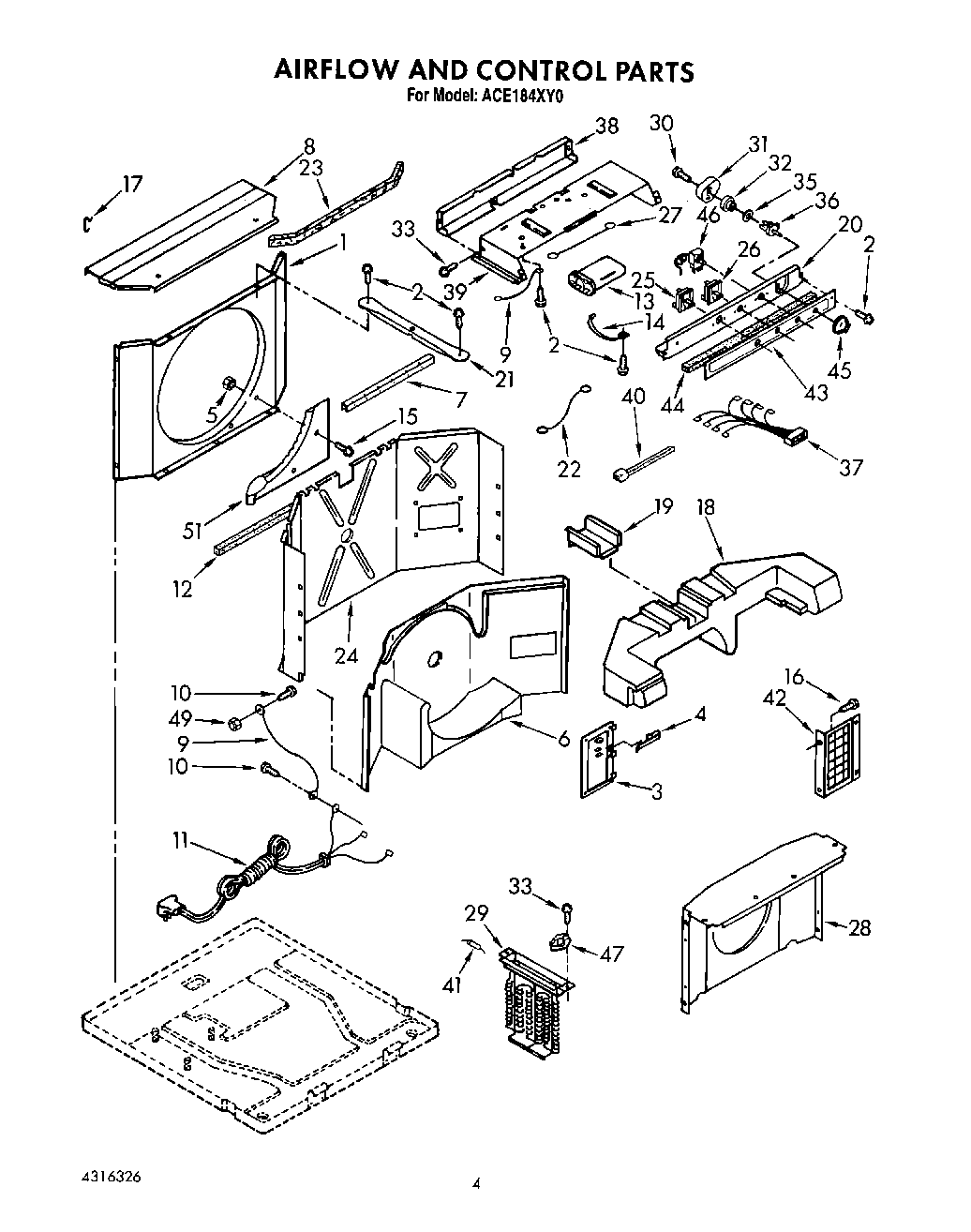

ACE184XY0 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	WP489069 Whirlpool Compactor Screw
3	Door, Exhaust
4	Spring, Door
5	WP488130 Whirlpool Air Conditioner Nut
6	Scroll (Lower)
7	Grommet, Divider Wall
8	Top, Condenser
9	Wire, Ground
10	Screw, 8 x 3/8
11	Cord, Appliance
12	Seal, Condensate Cup
13	Capacitor, Running
14	Bracket, Capacitor
15	Screw 8-18 x .295
16	Screw, 8-18 x 3/8
17	Clip, Shroud
18	Scroll, Upper
19	Raceway, Wiring
20	Panel, Control
21	Support, Unit (2)
22	Wire, Control
23	Seal, Shroud
24	Dividing Wall
25	Switch, Rotary
26	Switch, Fan
27	Wire, Thermostat To Switch
28	Shroud Assembly, Evaporator
29	Element, Heating
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
33	Screw, 6-32 x .175
34	Grill, Rear
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring Control Box
38	Control Box
39	Back Panel, Control Box
40	WPW10339879 Whirlpool Wire Tie
41	Fuse Link Asy
42	Impeller Guard (2)
43	Escutcheon
44	WP854334 Whirlpool Air Conditioner Sealing Strip
45	Knob, Controls (4)
46	Control, Temperature
47	Limit Switch
49	WP486255 Whirlpool Air Conditioner Nut
51	Cup, Condensate
