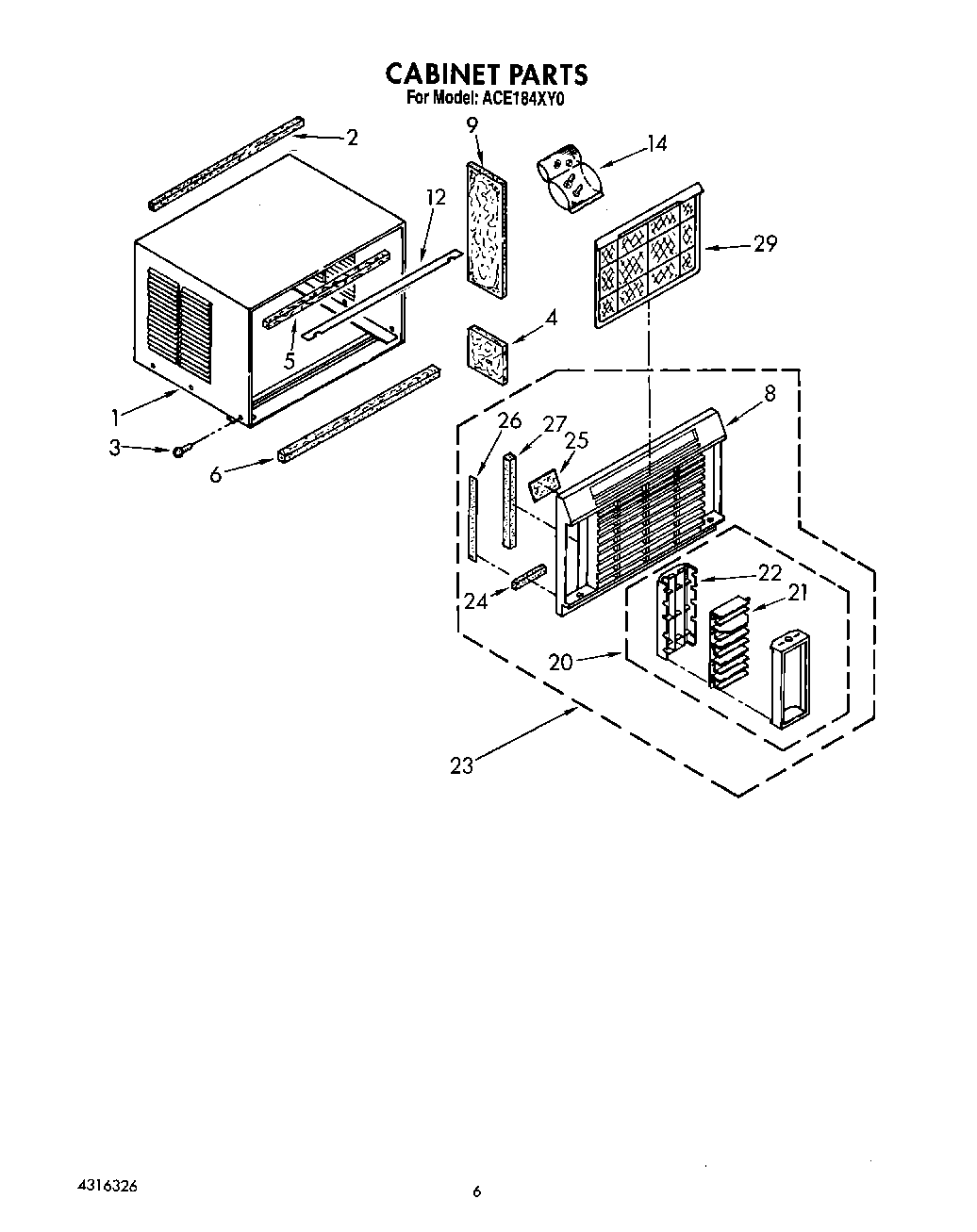

ACE184XY0 03 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
4Insulation, Cabinet Side (2)
5Seal, Top
6Seal
8Cabinet Front
9Insulation, Cabinet Side (2)
12Seal
14Bag, Accessory
20Cartridge, Complete
21Horzontal Louver
22Ribs, Vertical
23Front, Complete
24Seal (Right Side)
25Seal (Left Side)
25Seal (Right Side)
26WP854334 Whirlpool Air Conditioner Sealing Strip
27Seal (Left Side)
29Filter
