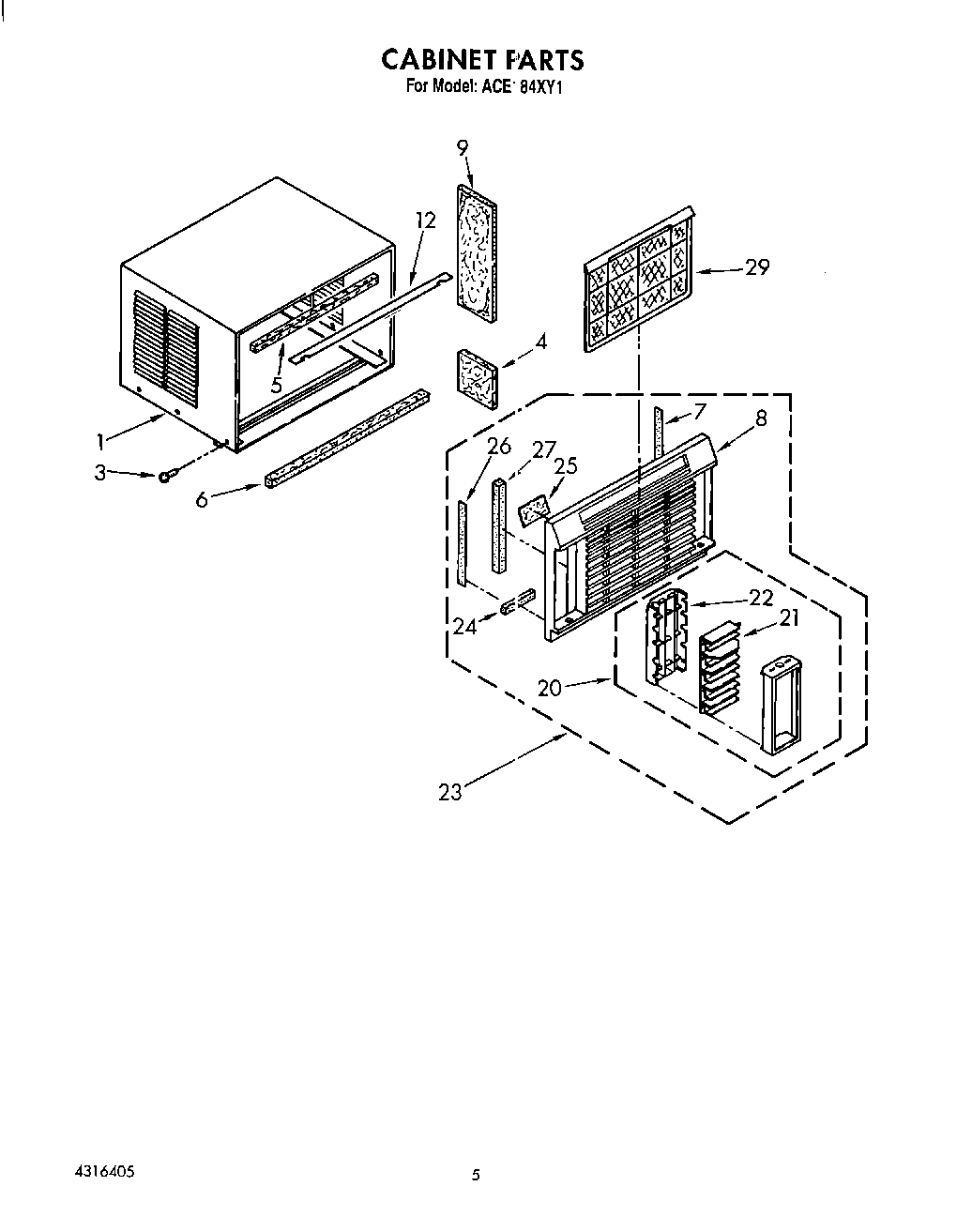

ACE184XY1 03 – CABINET

Products

PositionProduct
1Cabinet
3WP489069 Whirlpool Compactor Screw
4Insulation, Cabinet Side (2)
5Seal, Top
6Seal
7Seal (2)
8Cabinet Front
9Insulation, Cabinet Side (2)
12Seal
20Cartridge, Complete
21Horzontal Louver
22Ribs, Vertical
23Front, Complete
24Seal (Right Side)
25Seal (Right Side)
25Seal (Left Side)
26WP854334 Whirlpool Air Conditioner Sealing Strip
27Seal (Left Side)
29Filter
