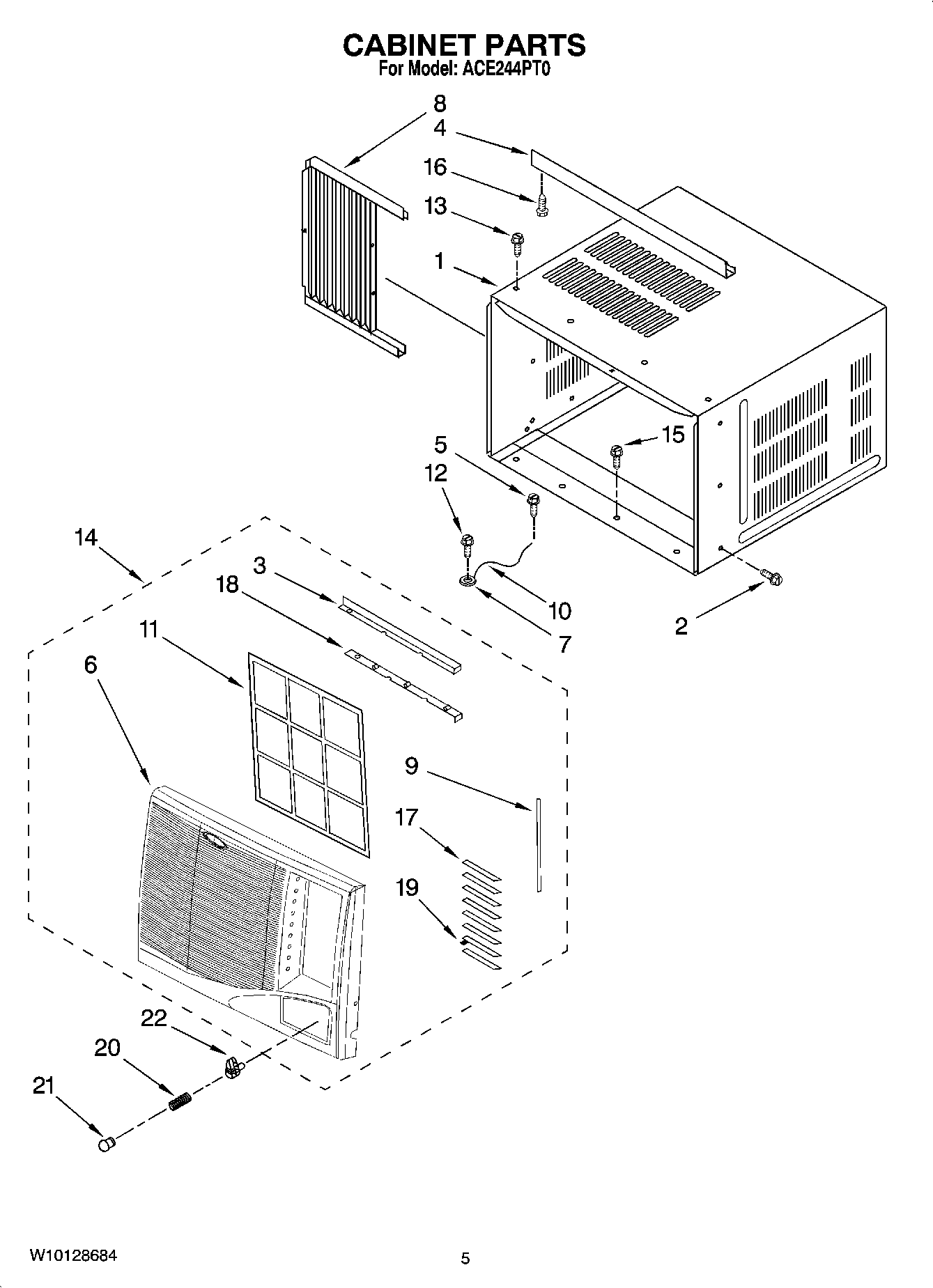

ACE244PT0 03 – CABINET PARTSadmin2025-04-26T10:51:16+00:00ACE244PT0 03 – CABINET PARTS ProductsPositionProduct1CABINET2SCREW3Membrane4Channel, Top5SCREW6Front, Cabinet7SCREW8Curtain Assembly Right & Left Side9Guide, Linkage10Ground Wire11Filter12WASHER13Screw (8)14Front, Cabinet Assembly15SCREW16Screw17Guide, Louver18Guide, Filter (Down)18Guide, Filter (Up)19Guide, Louver20SPRING21Button22Knob (Left)22Knob (Right)
