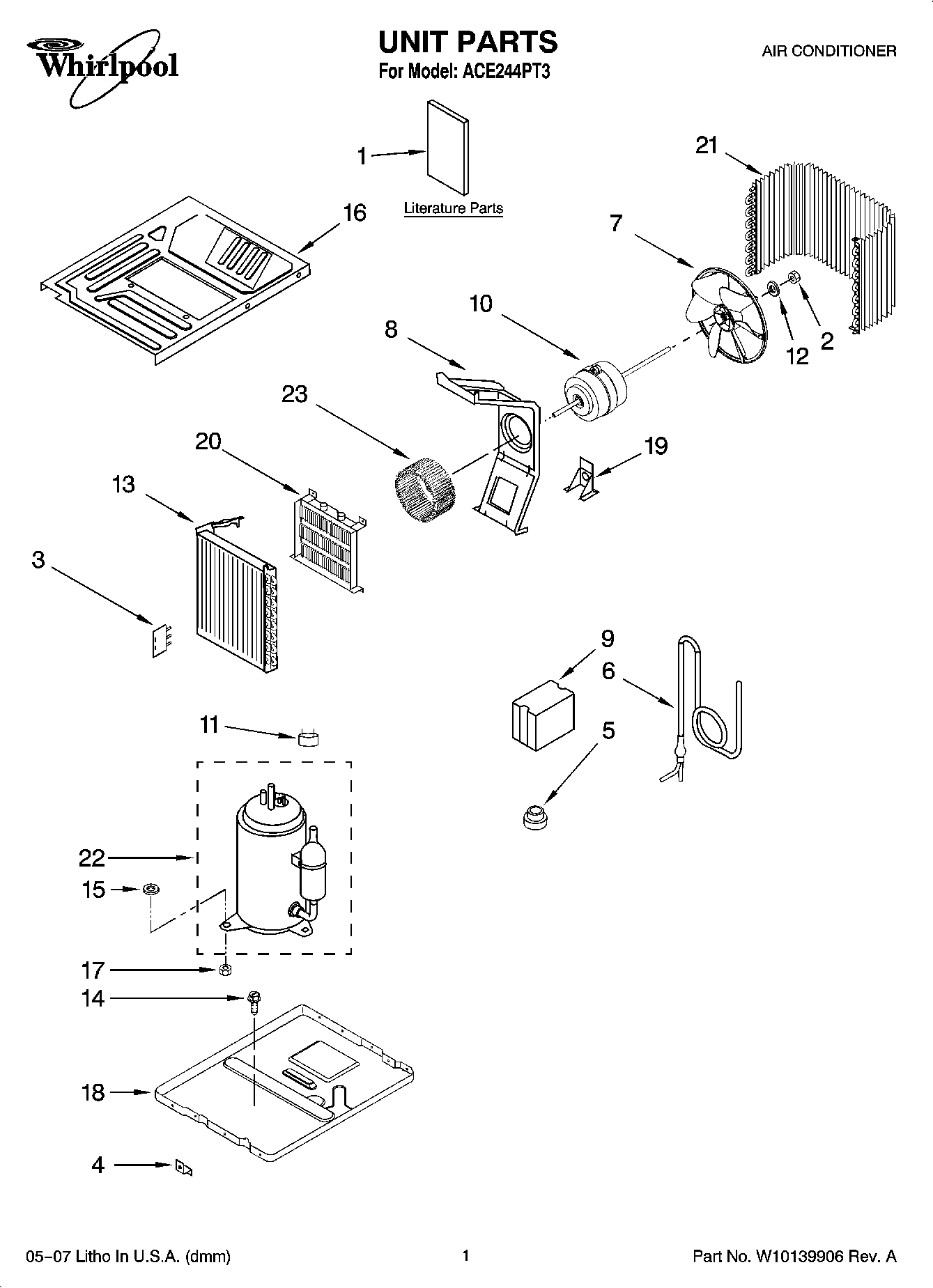

ACE244PT3 01 – UNIT PARTS

Products

Position	Product
1	Wiring Diagram
1	Energy Guide
1	Use & Care Guide
2	Nut W/Washer
3	Support, Tube Sensor
4	CLIP
5	Drain Plug
6	Tube, Restrictor
7	Blade, Fan
8	Bracket, Fan Motor
9	Relay
10	Motor, Fan
11	OVERLOAD
12	WASHER
13	EVAPORATOR
14	W11245710 Whirlpool Refrigerator Screw
15	Gasket
16	CABINET
17	Nut W/Washer
18	BASE
19	Support
20	HEATER
21	Screw
22	Compressor Assy. With Overload
23	Wheel, Blower
