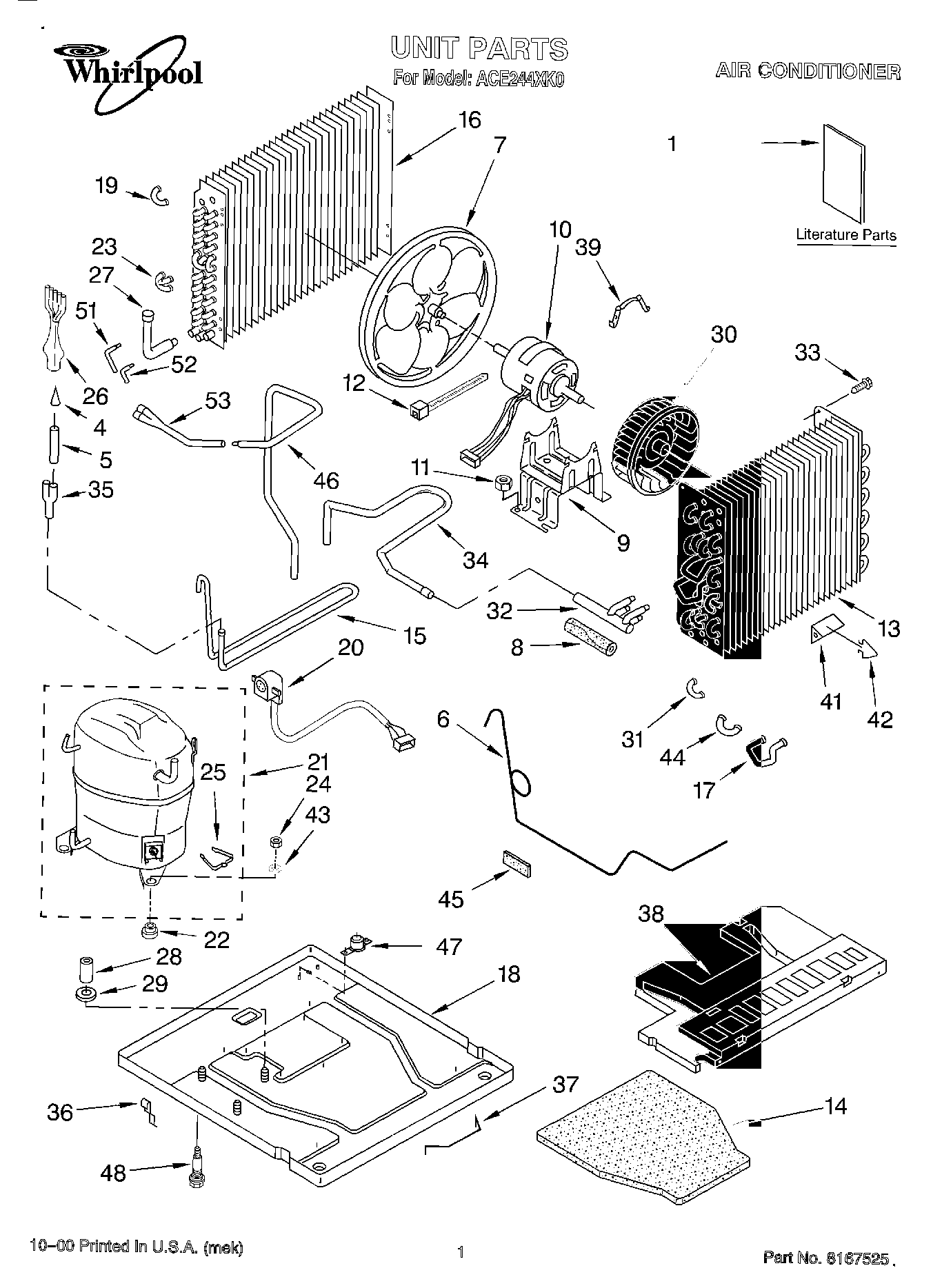

ACE244XK0 01 – UNIT, LITERATURE

Products

PositionProduct
1Energy Guide
1Wiring Diagram
1Use & Care Guide
4Strainer
5Tube, Outlet (Includes Illus. 4)
6Tube, Restrictor (4)
7Blade, Fan (Condenser)
8Seal, Suction Tube
9Bracket, Fan Motor
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12WPW10339879 Whirlpool Wire Tie
13Evaporator
14Insulation, Base (Bottom)
15Wetloop
16Condenser
17Bend, Return (Evaporator – 2)
18Base
20Harness, Wiring
21Compressor
22Grommet (3)
23Bend, Return (3-Way)
24Locknut (3)
25Retainer, Terminal Cover
26Distributor
27Tube, Wetloop Connect
28Spacer, Grommet
29Sleeve, Mounting
30Wheel, Blower (Evaporator)
31Tube, Riser (2)
32Manifold, Suction
33WP489069 Whirlpool Compactor Screw
34Tube, Suction
35Tube, Flow Divider
36Clamp (2)
37WPL 647971
38Pan, Drain
39WPY015825 Whirlpool Motor Clip
41Anticipator
42Clip, Anticipator
43W11236646 Whirlpool Washer Assembly
44Bend, Return Condenser (1)
45Seal, Restrictor Tube
46Tube, Discharge
47Valve, Condensate
48Bolt, Compressor
51Tube, Feeder
52Tube, Feeder
53Tube, Discharge Top Assembly (Includes 51 & 52)
