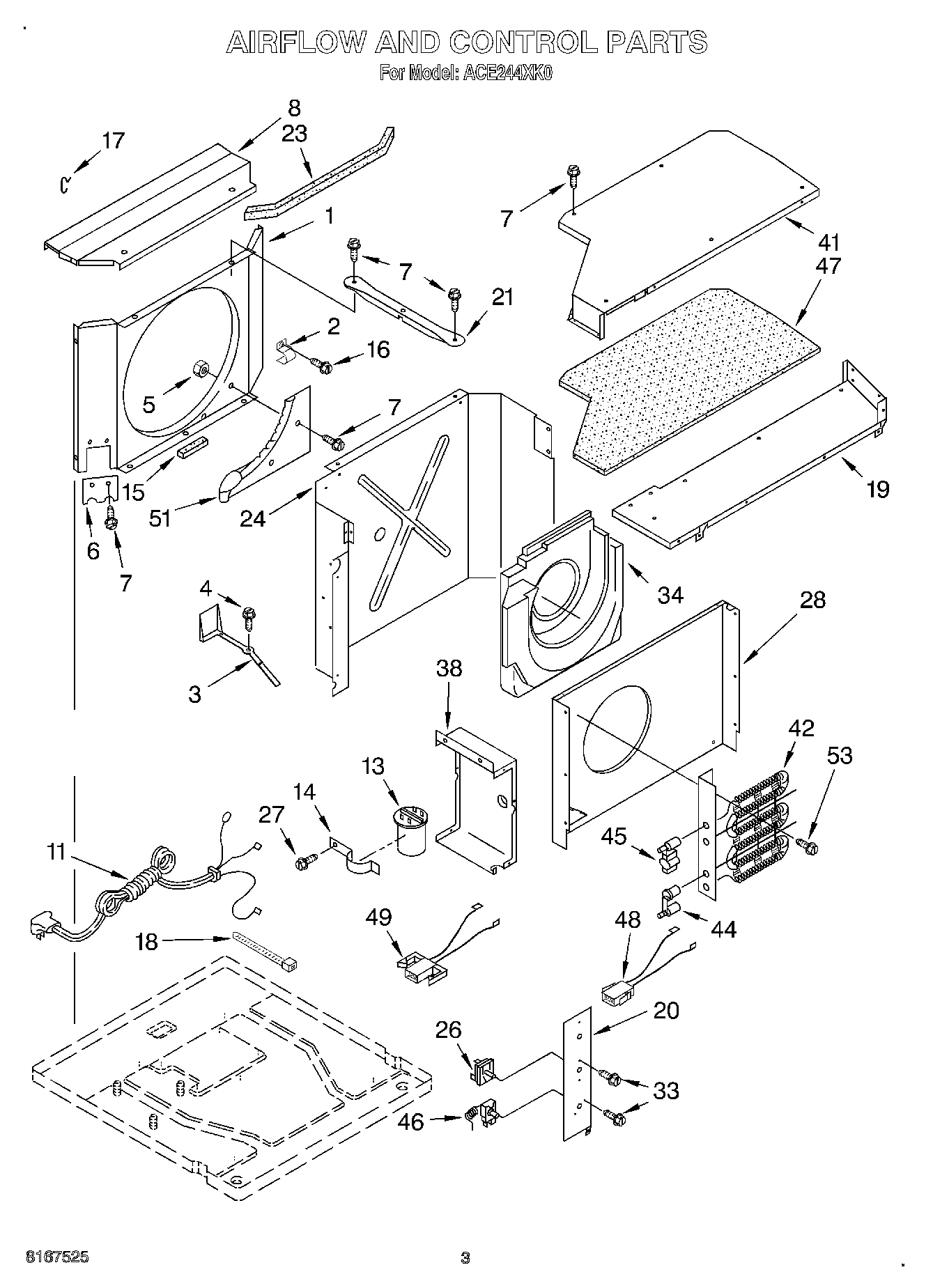

ACE244XK0 02 – AIRFLOW AND CONTROL

ACE244XK0 02 – AIRFLOW AND CONTROL

Written by

in

ACE244XK0 02 – AIRFLOW AND CONTROL

Products

PositionProduct
1Shroud, Condenser
2Clip, Wet Loop
3Door, Exhaust
4Screw, 8-18 x .437
5WP488130 Whirlpool Air Conditioner Nut
6Clip, Nylon
7Screw, 8 x 3/8
8Top, Condenser
11Cord, Appliance
13Capacitor
14Bracket, Capacitor
15Seal, Condensate Cup
17Clip, Shroud (2)
18WPW10339879 Whirlpool Wire Tie
19Top, Evaporator Shroud
20Panel, Control
21Support, Unit (2)
23Seal, Shroud
24Dividing Wall
26Switch Rotary
28Shroud Assembly, Evaporator
33Screw, 6-32 x .175
34Housing, Air
38Control Box (R.S.)
41Cover, Top
42Element, Heating
44Link, Fuse
45Switch, Limit
46Control, Temperature
47Insulation, Top Cover
48Harness, Heater
49Wire Harness, Heater
51Cup, Condensate
53WP489069 Whirlpool Compactor Screw
