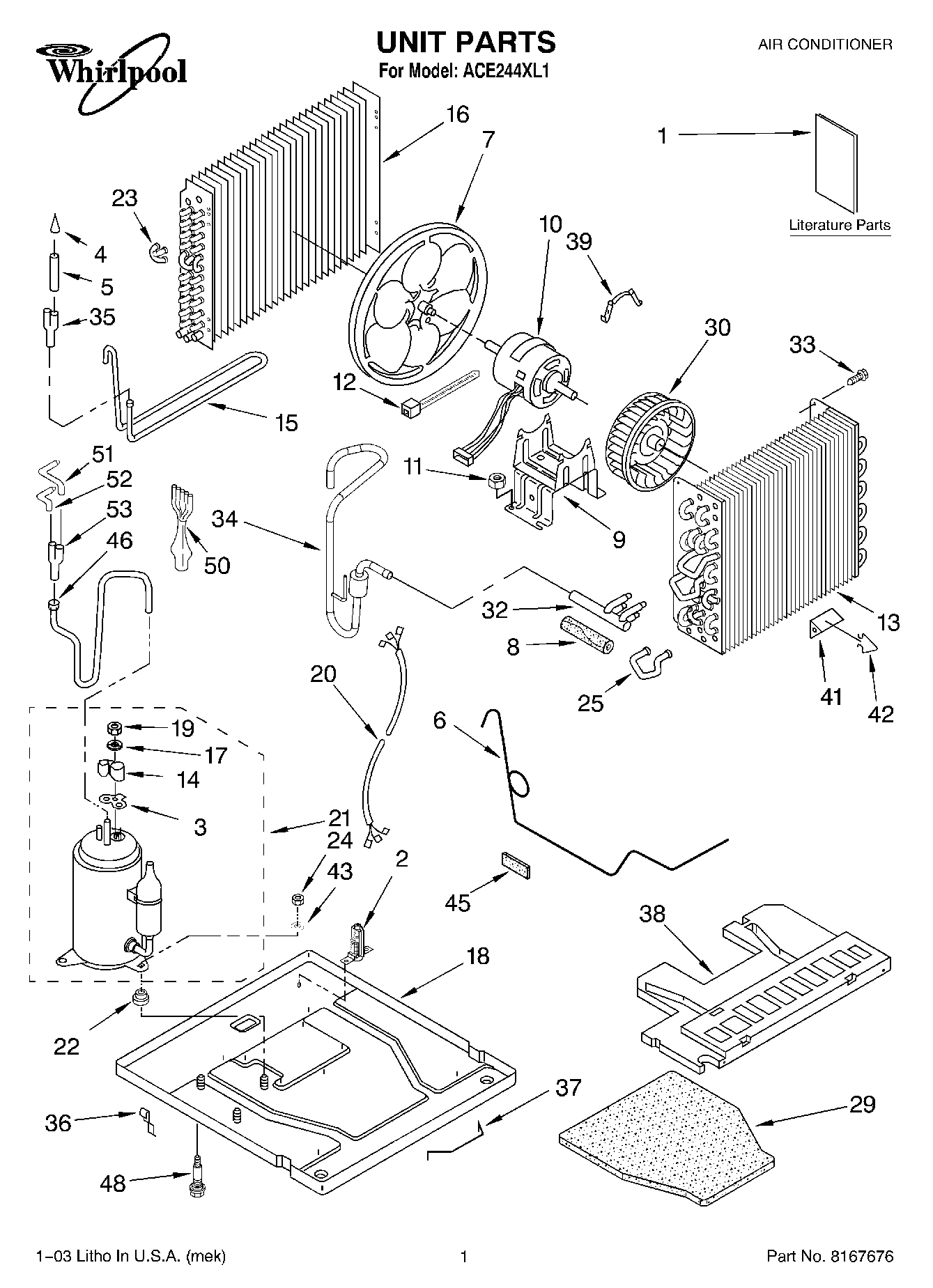

ACE244XL1 01 – UNIT PARTS

Products

Position	Product
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
1	Energy Guide
2	Valve, Drain Pan
3	Gasket, Terminal Cover
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan (Condenser)
8	Seal, Suction Tube Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Cover, Terminal
15	Wet, Loop
16	Condenser
17	Gasket
18	Base
19	W10833054 Whirlpool Air Conditioner Mounting Nut
20	Harness, Wiring Compressor
21	Compressor
22	Grommet (3)
23	Bend, Return (3-Way)
24	Locknut (3)
25	Tube, Crossover
29	Insulation, Base (Bottom)
30	Wheel, Blower (Evaporator)
32	Manifold, Suction
33	WP489069 Whirlpool Compactor Screw
34	Tube, Suction
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
45	Seal, Restrictor Tube
46	Tube, Discharge
48	Bolt, Compressor
50	Distributor
51	Tube, Feeder
52	Tube, Feeder
53	REFRIGERANT CHARGE 42.50 oz.
53	Tube, Flow Divider
