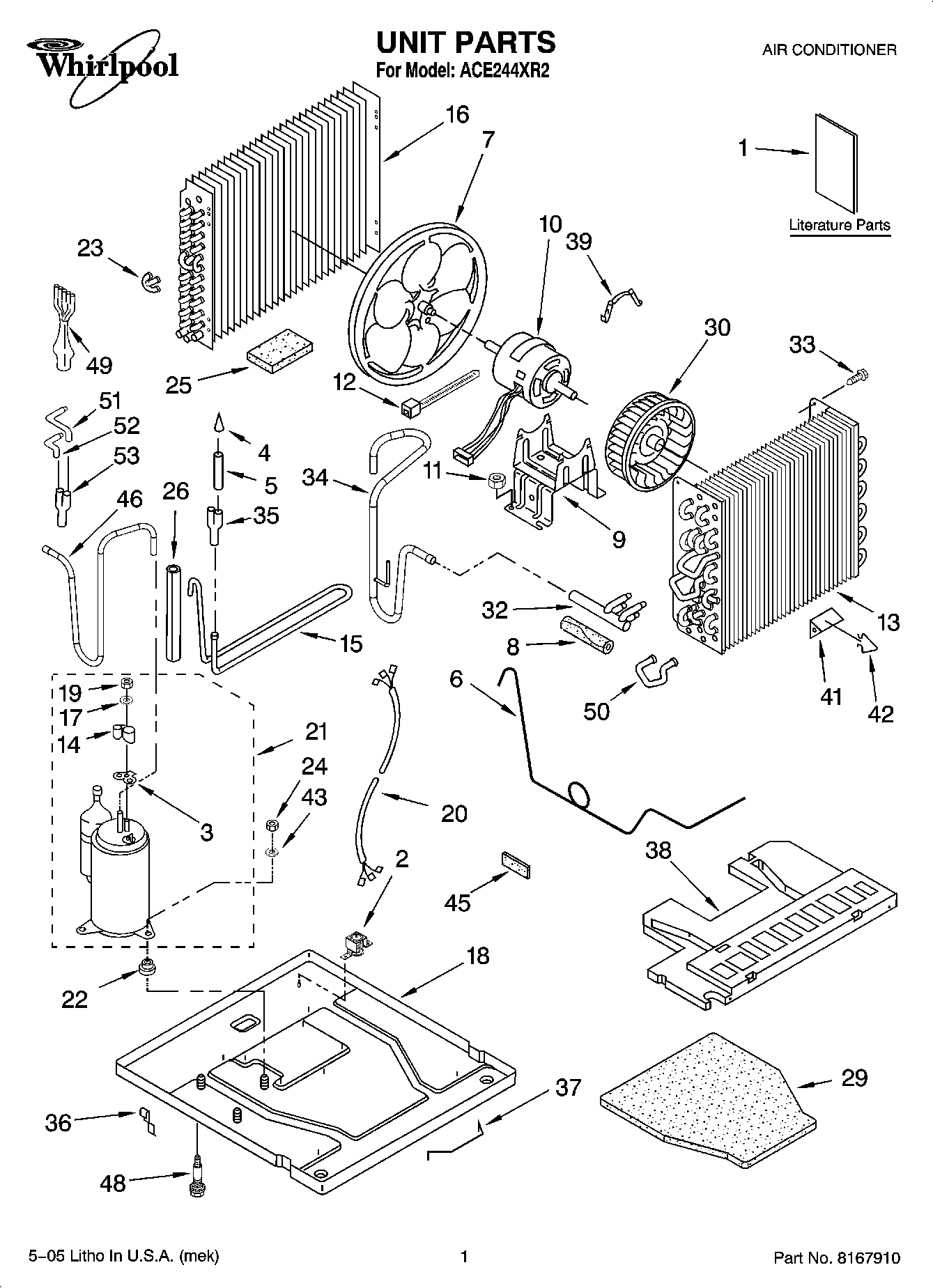

ACE244XR2 01 – UNIT PARTS

Products

Position	Product
1	Energy Guide
1	Wiring Diagram
1	Use & Care Guide
2	Valve, Drain Pan
3	Gasket, Terminal Cover
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (2)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Cover, Terminal
15	Wet, Loop
16	CONDENSER
17	Washer
18	Base
19	W10833054 Whirlpool Air Conditioner Mounting Nut
20	Harness, Wiring Compressor
21	Compressor
22	Grommet (3)
23	Bend, Return (3-Way)
24	Locknut (3)
25	Putty, Sound Dampener
26	WPL 1162344
29	Insulation, Base (Bottom)
30	Wheel, Blower (Evaporator)
32	Manifold, Suction
33	WP489069 Whirlpool Compactor Screw
34	Tube, Suction
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
45	Seal, Restrictor Tube
46	Tube, Discharge
48	Bolt, Compressor
49	Distributor
50	Tube, Crossover
51	Tube, Feeder
52	Tube, Feeder
53	Tube, Flow Divider
53	REFRIGERANT CHARGE 46.75 oz.
