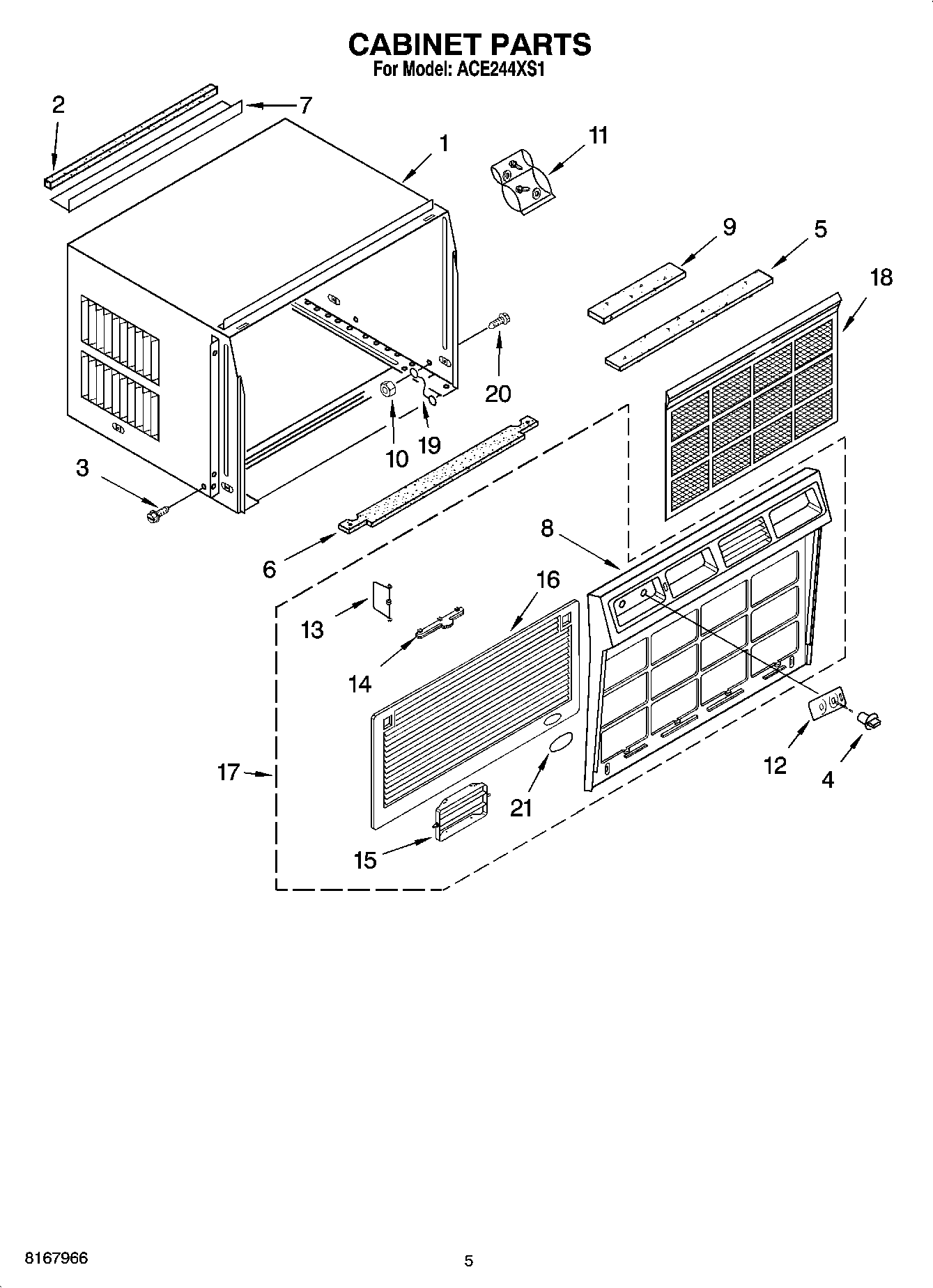

ACE244XS1 03 – CABINET PARTS

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
4	WP8031121 Whirlpool Air Conditioner Control Knob
5	Seal, Front Large
6	Seal
7	Angle (Top)
8	Frame, Front
9	Seal
10	WP486255 Whirlpool Air Conditioner Nut
11	Bag, Accessory
12	ESCUTCHEON
13	Louver, Verticle
14	Link, Verticle Louver (2)
15	Cartridge
16	Door, Filter
17	Front, Complete
18	Filter
19	Wire, Ground
20	WP488234 Whirlpool Air Conditioner Screw
21	Nameplate
