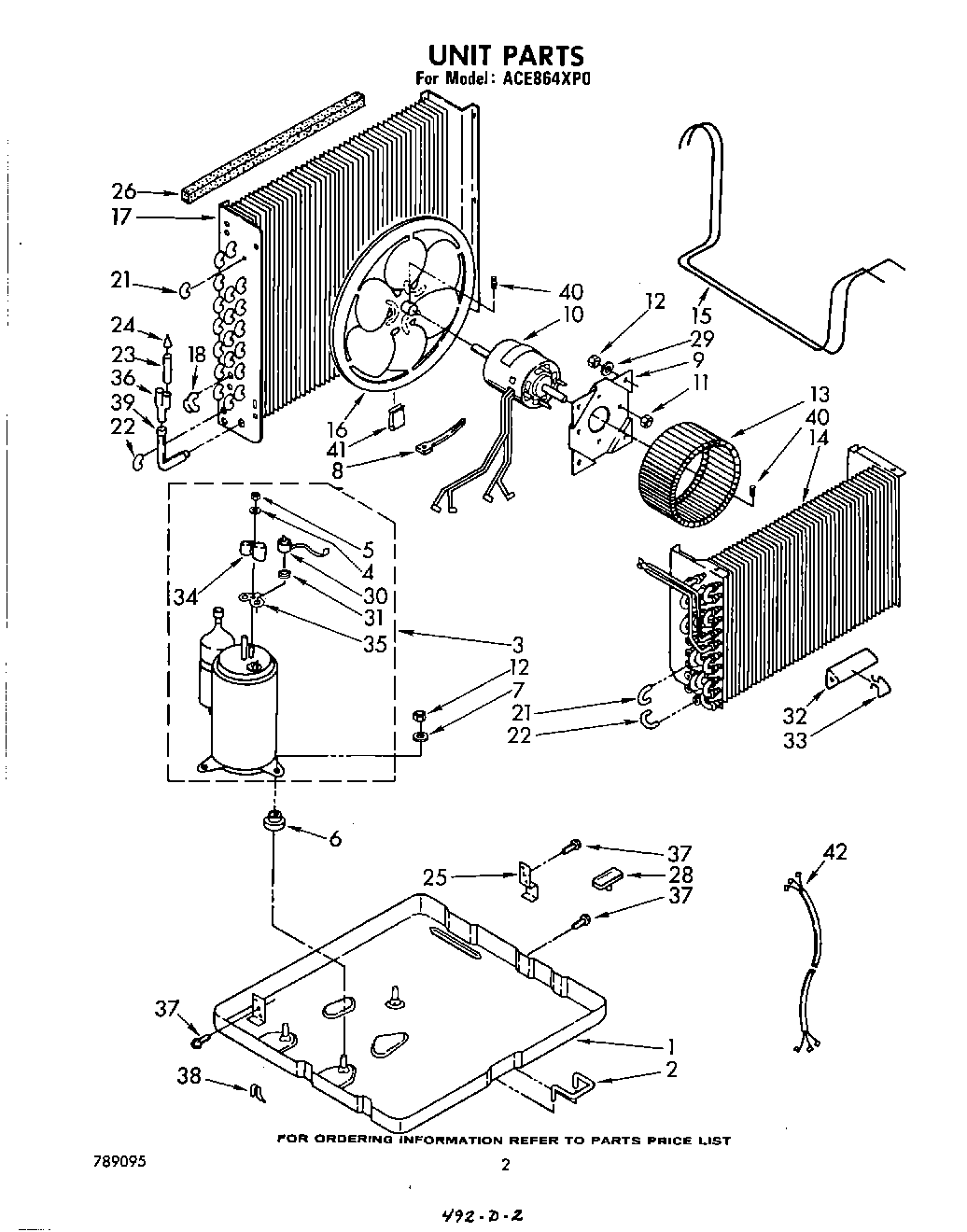

ACE864XP0 02 – UNIT

Products

Position	Product
1	Base Assembly
2	WPL 647971
3	compressor
4	Gasket, Nut
5	WP950027 Whirlpool Mounting Nut
6	WP950021 Whirlpool Grommet
7	WP120393 Whirlpool Washer Assembly
8	WPW10339879 Whirlpool Wire Tie
9	WPL 998024
10	Motor
11	WP488130 Whirlpool Air Conditioner Nut
12	Nut, Hex (4)
13	Wheel, Blower
14	Evaporator
15	Tube, Restrictor (40.0“ Length)
16	Blade, Fan
17	Condenser
18	Bend, Return (3-Way)
21	Bend, Return Evaporator (11)
22	Bend, Return Evaporator (4)
23	Tube & Strainer (Includes Item 23)
24	Strainer
25	WPL 647824
26	WP854334 Whirlpool Air Conditioner Sealing Strip
28	WPL 647850
29	Washer, Repair (4)
30	Overload
31	Spring, Overload
32	Anticipator
33	Clip, Anticipator
34	WP950036 Whirlpool Cover Assembly
35	WP950035 Whirlpool Cover Gasket
36	Tube, Flow Divider
37	WP489069 Whirlpool Compactor Screw
38	Clamp, Restrictor Tube
39	Tube, Outlet
40	Setscrew, 5/16 x 1/4
41	Clip, Balancing
42	Kit, Evaporator Repair (Aluminum Epoxy)
42	978026 Whirlpool Refrigerator Primary Valve
42	978027 Whirlpool Refrigerator Primary Valve
42	WP978025 Whirlpool Refrigerator Valve
42	VALVE, ACCESS (1/2“)
42	VALVE, ACCESS (5/8“)
42	978030 Whirlpool Refrigerator Valve
42	Harness, Wiring
42	No Drip Tape (For Sweating Tubes)
42	Oil, Turbine 1 Fl. Oz.
