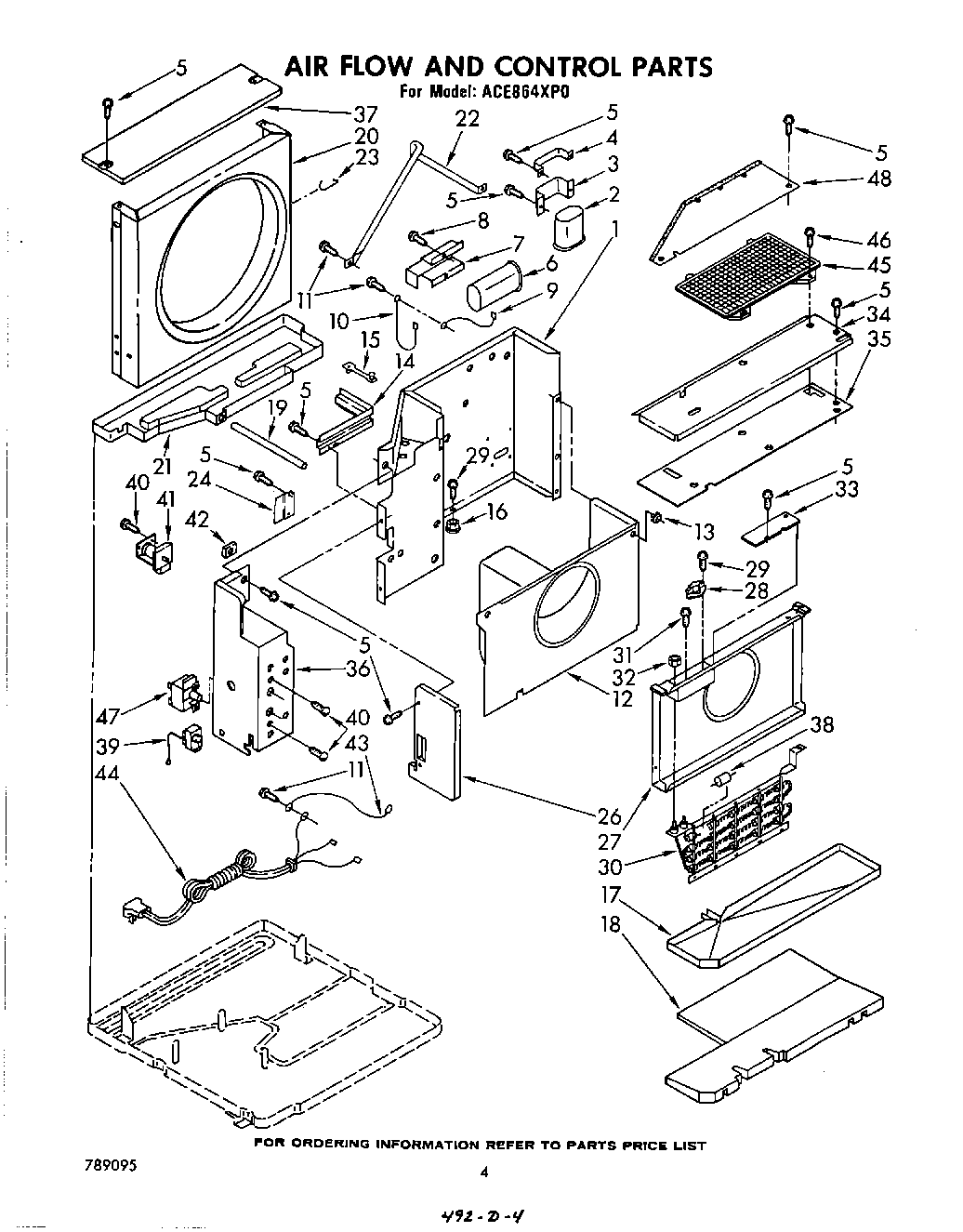

ACE864XP0 03 – AIRFLOW AND CONTROL

Products

Position	Product
1	Wall
2	WPL 951516
3	Bracket (Lower)
4	Bracket (Upper)
5	WP489069 Whirlpool Compactor Screw
6	capacitor, fan
7	Bracket, Fan Motor Capacitor
9	Ground Wire
10	Wire, Ground
11	WPW10141604 Whirlpool Screw
12	Housing, Blower Wheel
13	Fastener, snap (2)
14	Channel, Wiring
15	Clamp, Cable
16	Clip, Speed
17	Pan, Evaporator Condensate
18	Insulation, Condensate Pan
19	Tube, Condensate
20	Shroud
21	Pan, Condensate
22	Support, Unit
23	Clip, Shroud (3)
24	Baffle
26	Dividing Wall Assembly, L.S.
27	Deflector, Heat Assembly
28	Switch, Limit
29	Screw, 8 x 3/8
30	Heater, Air
31	WP488234 Whirlpool Air Conditioner Screw
32	WP488826 Whirlpool Nut
33	Cover, Wire Enclosure
34	Cover, Evaporator
35	Insulation, Evaporator Cover
36	box, control
37	Cover, Shroud (Condenser)
38	Fuse, Heater
39	Control, Temperature
40	Screw, 6-32 x .175
41	Contactor
42	Grommet
43	Wire, Ground
44	Cable, Appliance
45	Guard, Evaporator Impeller
46	WP488729 Whirlpool Refrigerator Door Screw
47	Switch, Rotary
48	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
48	Wire, 25“ Roll (White 12 GA.)
48	Wire, 25“ Roll (Black 12 GA.)
48	212643 Whirlpool Refrigerator Permagum Sealer
48	Insulation, Base
48	Lacquer, Starlight Gray (1/2 Pt. Uncut)
48	Cover, Discharge Assembly
48	Wire, Red, (25 Ft.)
