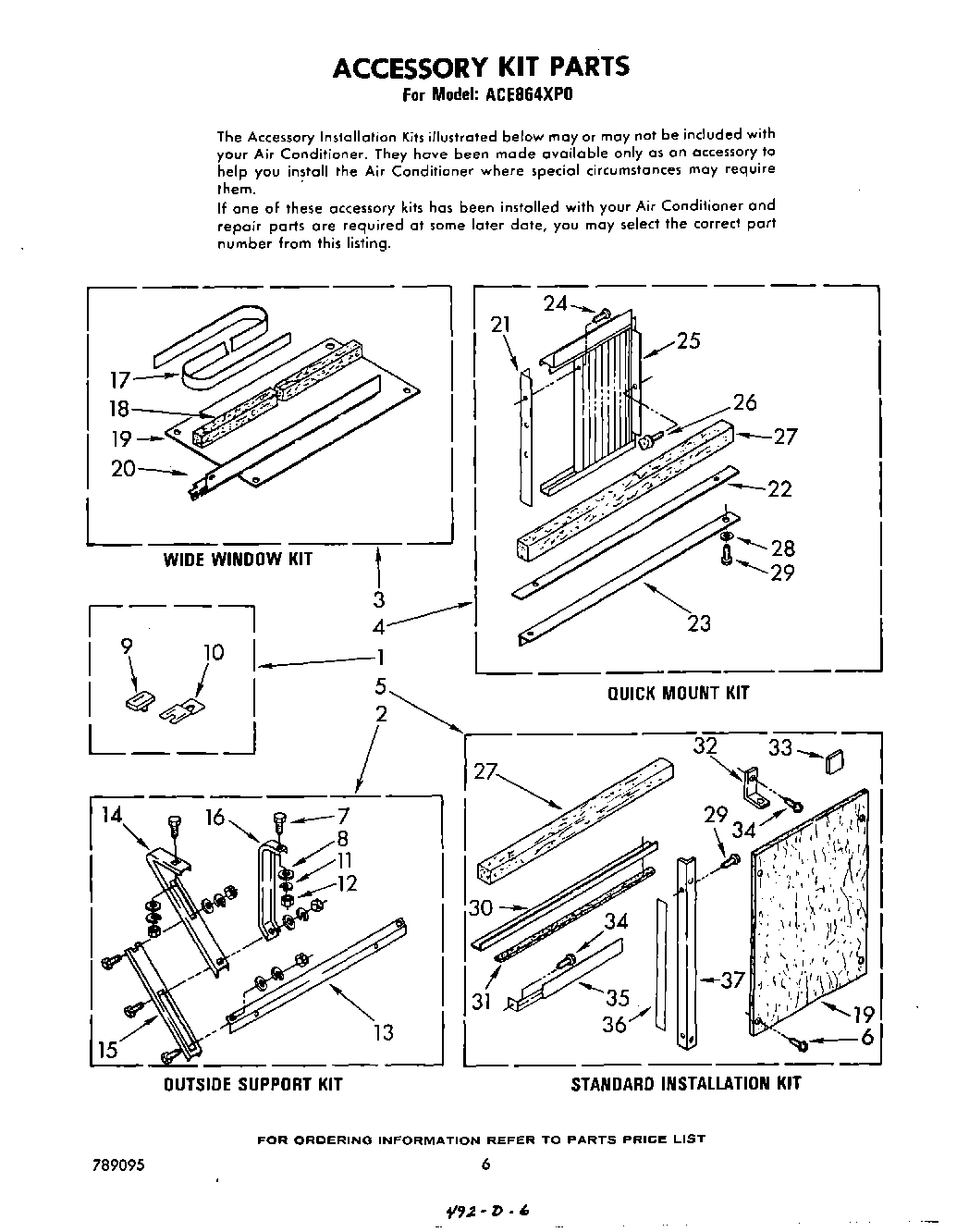

ACE864XP0 04 – ACCESSORY KIT , LITERATURE

Products

Position	Product
1	Kit, Condensate Cup
2	Kit, Outside Support
3	Kit, Wide Window
4	Kit, Quick Mount
5	Kit, Standard Installation
6	WP965173 Whirlpool Dishwasher Screw
7	Bolt, 1/4 x 3/4 (6)
8	WP120393 Whirlpool Washer Assembly
9	WPL 647850
10	Support, Cup
11	Lockwasher (6)
12	Nut, Hex (6)
13	Bracket, Support
14	Support, Cabinet (2)
15	Extension, Support (2)
16	Retainer, Cabinet (2)
18	Gasket, Meeting Rail
19	Bracket, R.S.
20	Bracket, Mounting (L.S.)
20	Bracket, Mounting (R.S.)
21	Retainer, Curtain (2)
22	Strip, Seal
23	Channel, Bottom
24	Screw, 8 x 7/16
25	Curtain Housing Assembly, R.S.
25	Curtain Housing Assembly, L.S.
26	Thumbscrew (2)
27	Gasket, Meeting Rail
28	Washer (2)
29	WP308685 Whirlpool Microwave Screw
30	Angle, Top
31	Strip, Seal
32	Bracket
33	Spacer, Block (4)
34	Screw, Wood 8-15 x .750
35	Bracket, R.S.
35	Bracket, L.S.
36	Strip, Seal
37	Angle (2)
