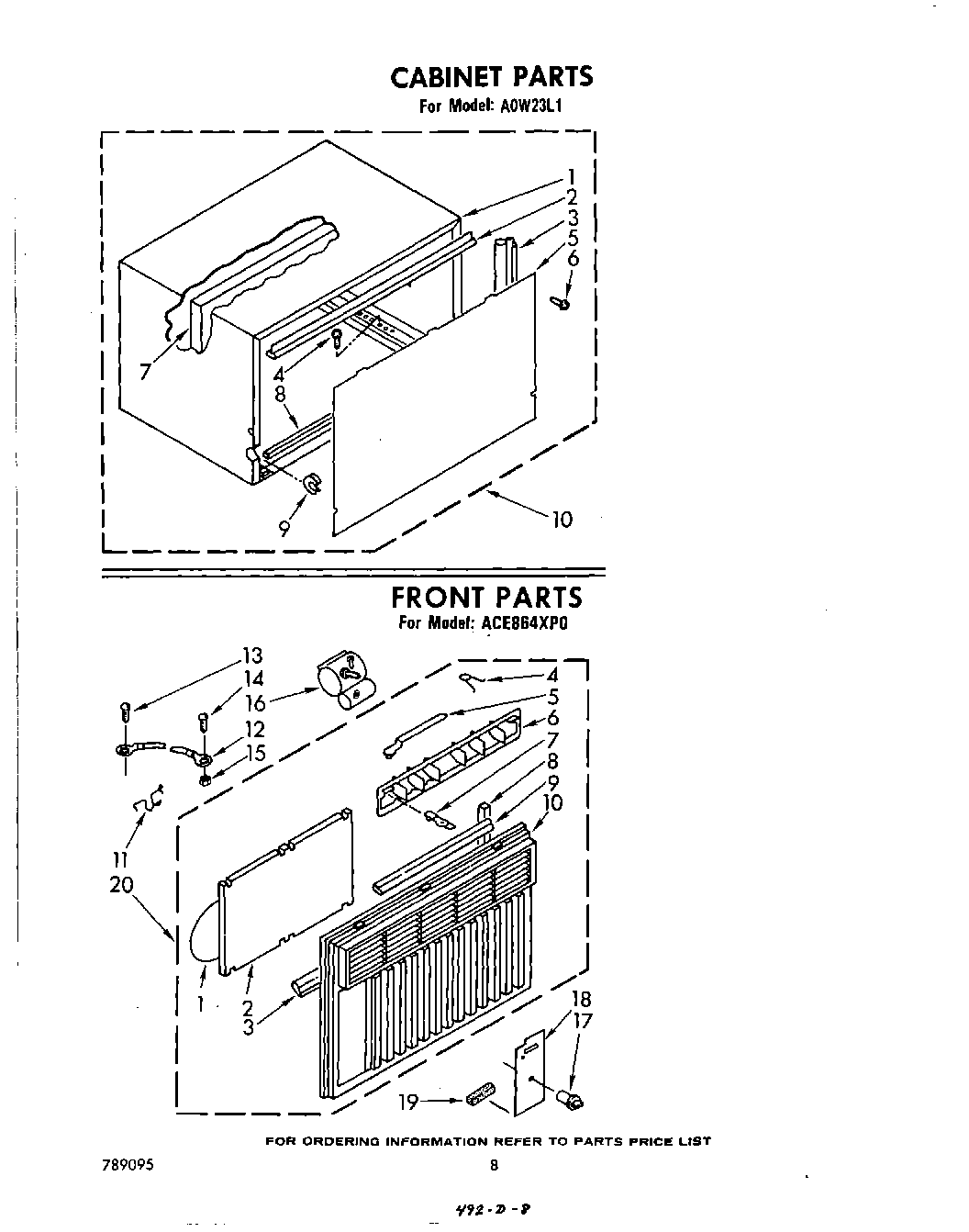

ACE864XP0 05 – CABINET , FRONTadmin2025-04-26T10:51:12+00:00ACE864XP0 05 – CABINET , FRONT
Products
| Position | Product |
|---|
| A9 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| A17 | Knob, Control |
| A6 | Louver, Vertical |
| A7 | Handle, Vertical Louver (2) |
| A5 | Link, Vertical Louver (2) |
| A4 | Detent Spring (2) |
| A2 | Filter |
| A18 | Plate, Escutcheon |
| A10 | Front, Cabinet |
| A16 | Bag, Accessory |
| A1 | Retainer, Filter |
| A20 | (See Optional Parts) |
| A15 | WP486255 Whirlpool Air Conditioner Nut |
| A12 | Wire, Ground |
| A14 | Screw, 8 x 3/8 |
| A13 | Screw, 8 x 3/8 |
| A19 | Spacer, Escutcheon Plate (3) |
| A3 | Seal |
| A8 | Seal |
| A11 | Clip (2) |
| 1 | cabinet (requires insulation no. 649939) |
| 4 | Screw (Window Lock Bracket) |
| 5 | Panel, Front |
| 6 | WP487353 Whirlpool Refrigerator Screw |
| 7 | seal, weather |
| 8 | Seal |
| 9 | Grommet, Appliance Cable |
| 10 | cabinet assembly |
| 20 | cabinet, front assembl |
