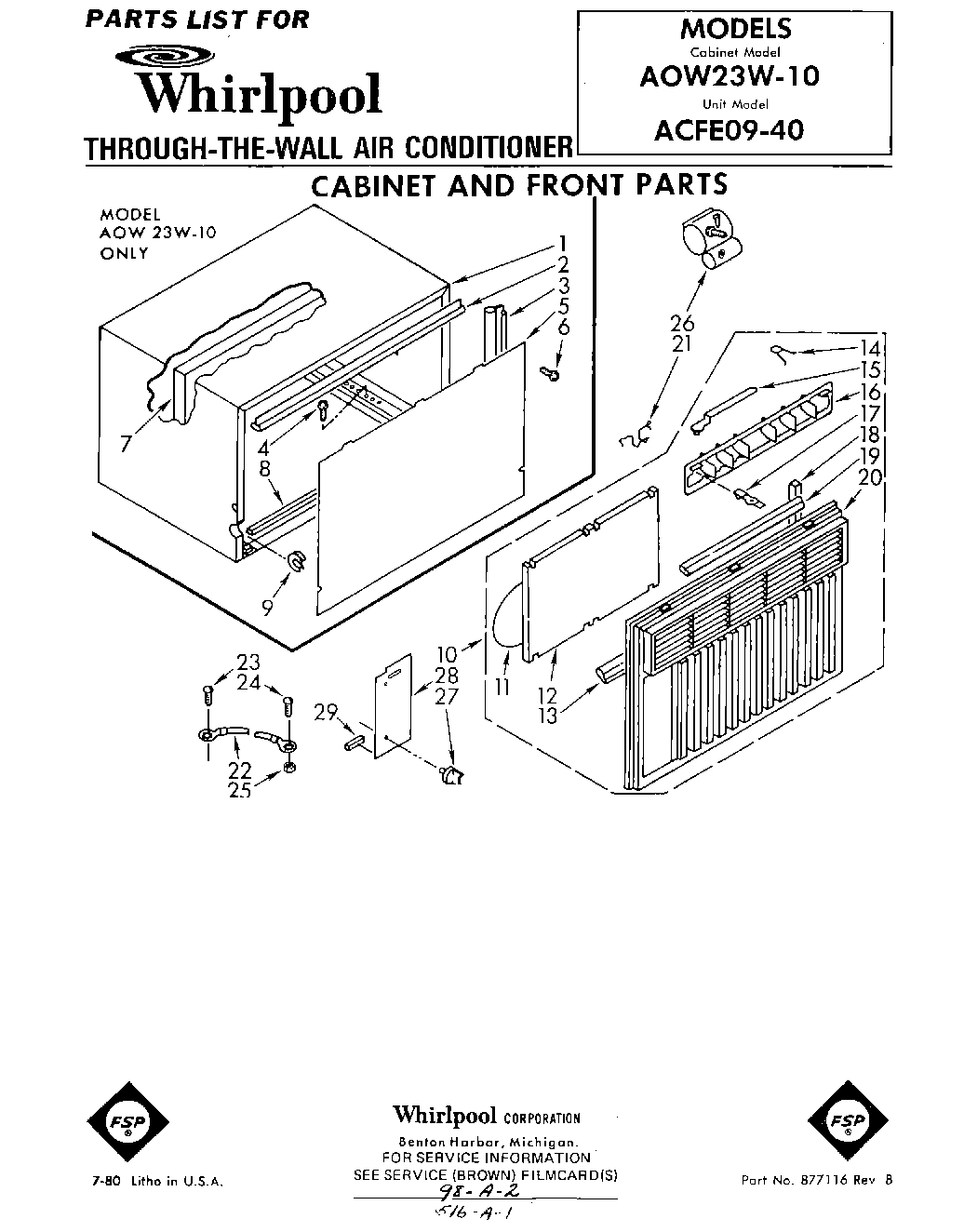

ACFE0940 01 – CABINET AND FRONTadmin2025-04-26T10:53:02+00:00ACFE0940 01 – CABINET AND FRONT
Products
| Position | Product |
|---|
| 1 | cabinet (requires insulation no. 649939) |
| 4 | Screw (Window Lock Bracket) |
| 5 | Panel, Front |
| 6 | WP487353 Whirlpool Refrigerator Screw |
| 7 | seal, weather |
| 8 | Seal |
| 9 | Grommet, Appliance Cable |
| 10 | Front, Cabinet Assembly |
| 11 | Retainer, Filter |
| 12 | Filter |
| 13 | Seal |
| 14 | Detent Spring (2) |
| 15 | Link, Vertical Louver (2) |
| 16 | Louver, Vertical |
| 17 | Handle, Vertical Louver (2) |
| 18 | Seal |
| 19 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 20 | front, cabinet |
| 21 | Clip (2) |
| 22 | Wire, Ground |
| 23 | Screw, 8 x 3/8 |
| 24 | Screw, 8 x 3/8 |
| 25 | WP486255 Whirlpool Air Conditioner Nut |
| 26 | accessory bag |
| 27 | Knob, Control |
| 28 | Escutcheon, Plate |
| 29 | Spacer, Escutcheon Plate (3) |
