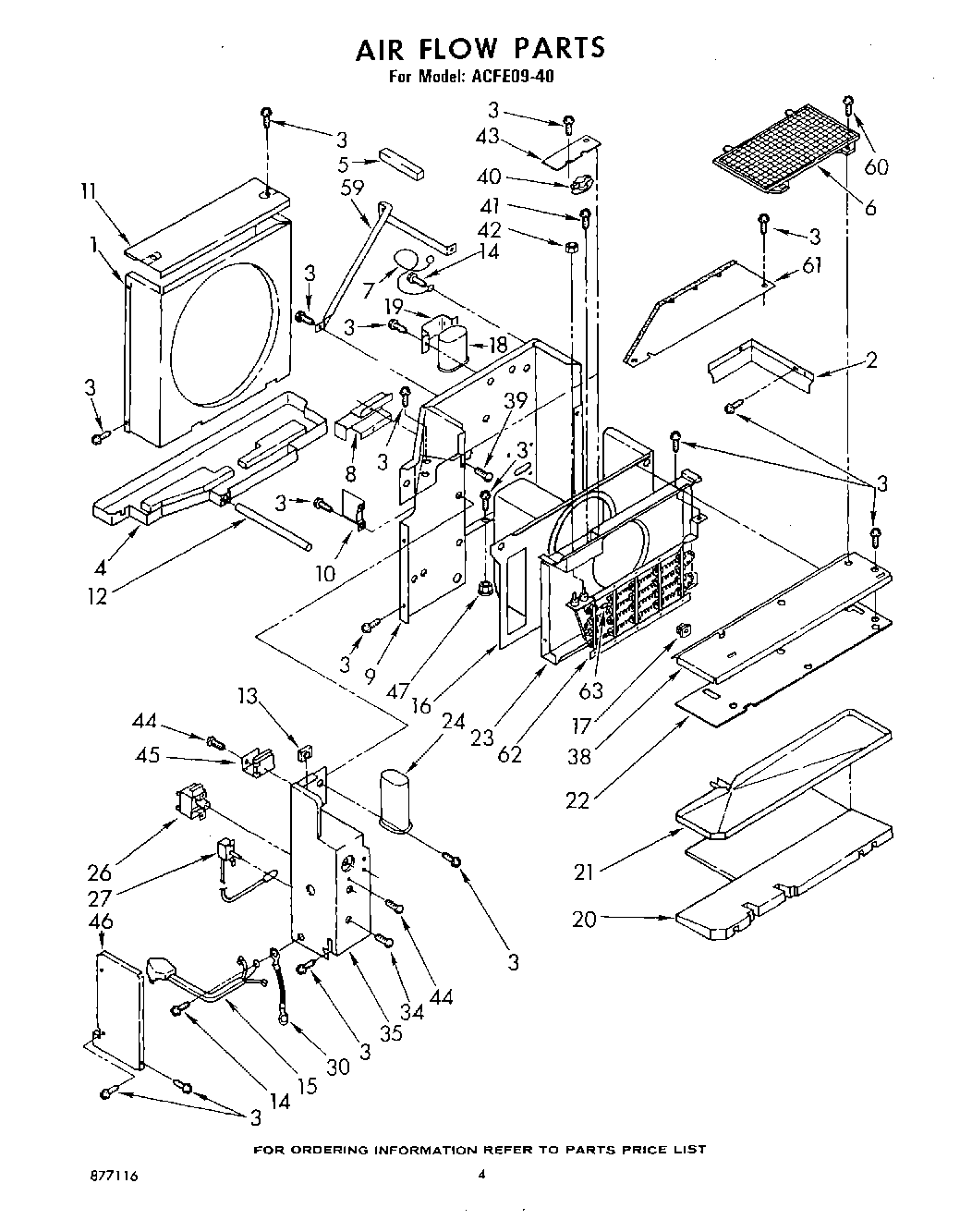

ACFE0940 03 – AIR FLOW

Products

Position	Product
1	Shroud
2	Channel, Wiring
3	WP489069 Whirlpool Compactor Screw
3	Screw, Repair
4	Pan, Condensate
5	WP854334 Whirlpool Air Conditioner Sealing Strip
6	Guard, Evaporator Impeller
7	Ground Wire
8	Bracket, Fan Motor Capacitor
9	Wall
10	Baffle
11	Cover, Shroud (Condenser)
12	Tube, Condensate
13	Grommet
14	WPW10141604 Whirlpool Screw
15	Cable, Appliance
16	Housing, Blower Wheel
17	Fastener, snap (2)
18	Capacitor, Compressor Running
19	Bracket (Lower)
19	Bracket (Upper)
20	Insulation, Condensate Pan
21	Pan, Evaporator Condensate
22	Insulation, Evaporator Cover
23	Deflector, Heat Assembly
24	Capacitor, Fan
26	Switch, Pushbutton
27	Control, Temperature
30	Wire, Ground
34	Screw, 6-20 x .362
35	Box, Control
38	Cover, Evaporator
40	Switch, Limit
41	Screw, 8 x 3/8
42	WP488826 Whirlpool Nut
43	Cover, Wire Enclosure
44	Screw, 6-32 x .175
45	Contactor
46	Dividing Wall Assembly, L.S.
47	Clip, Speed
59	Support, Unit
60	WP488729 Whirlpool Refrigerator Door Screw
61	Cover, Discharge Assembly
62	Heater, Air
63	Fuse, Heater
