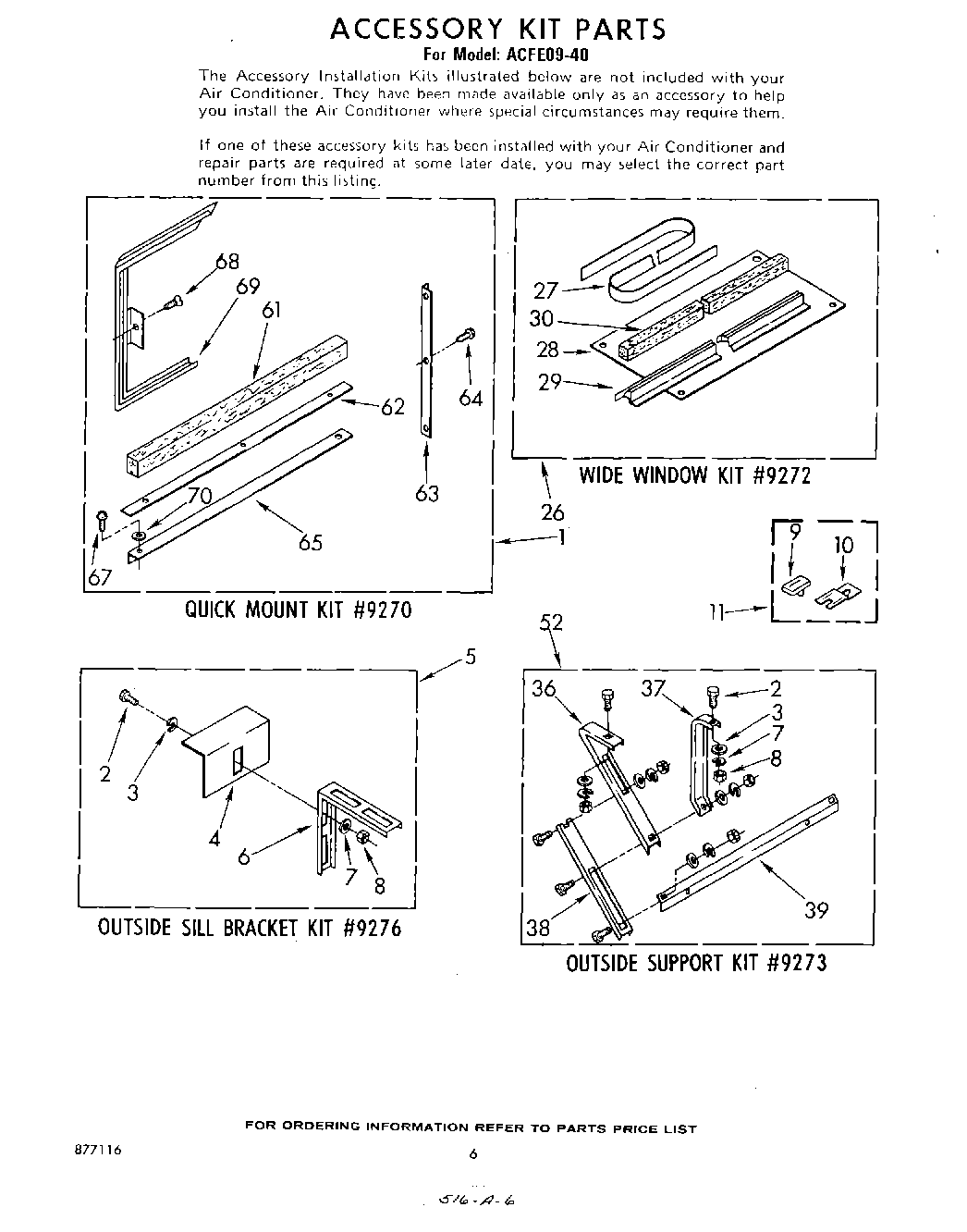

ACFE0940 04 – ACCESSORY KITadmin2025-04-26T10:53:23+00:00ACFE0940 04 – ACCESSORY KIT
Products
| Position | Product |
|---|
| 1 | Kit, Quick Mount |
| 2 | Bolt, 1/4 x 3/4 (6) |
| 3 | WP120393 Whirlpool Washer Assembly |
| 4 | Bracket, Sill Mounting (2) |
| 5 | Kit, Outside Sill Bracket |
| 6 | Bracket, Rail Support (2) |
| 7 | Lockwasher (6) |
| 8 | Nut, Hex (6) |
| 9 | WPL 647850 |
| 10 | Support, Cup |
| 11 | Kit, Condensate Cup |
| 26 | Kit, Wide Window |
| 27 | Strip, Seal |
| 28 | Board, Filler |
| 29 | Bracket, Mounting (R.S.) |
| 29 | Bracket, Mounting (L.S.) |
| 30 | Gasket, Meeting Rail |
| 36 | Support, Cabinet (2) |
| 37 | Retainer, Cabinet (2) |
| 38 | Extension, Support (2) |
| 39 | Bracket, Support |
| 52 | Kit, Outside Support |
| 61 | Gasket, Meeting Rail |
| 62 | Strip, Seal |
| 63 | Retainer, Curtain (2) |
| 64 | Screw, 8 x 7/16 |
| 65 | Channel, Bottom |
| 67 | WP308685 Whirlpool Microwave Screw |
| 68 | Thumbscrew (2) |
| 69 | Curtain Housing Assembly, R.S. |
| 69 | Curtain Housing Assembly, L.S. |
| 70 | Washer (2) |
| 70 | Instructions, Installation (Kit, Quick Mount) |
| 70 | Instructions, Installation (Kit, Wide Window) |
| 70 | Instructions, Installation (Outside Sill Kit) |
| 70 | Instructions, Installation (Kit, Outside Support) |
| 70 | Instructions, Installation (Kit, Standard Installa |
