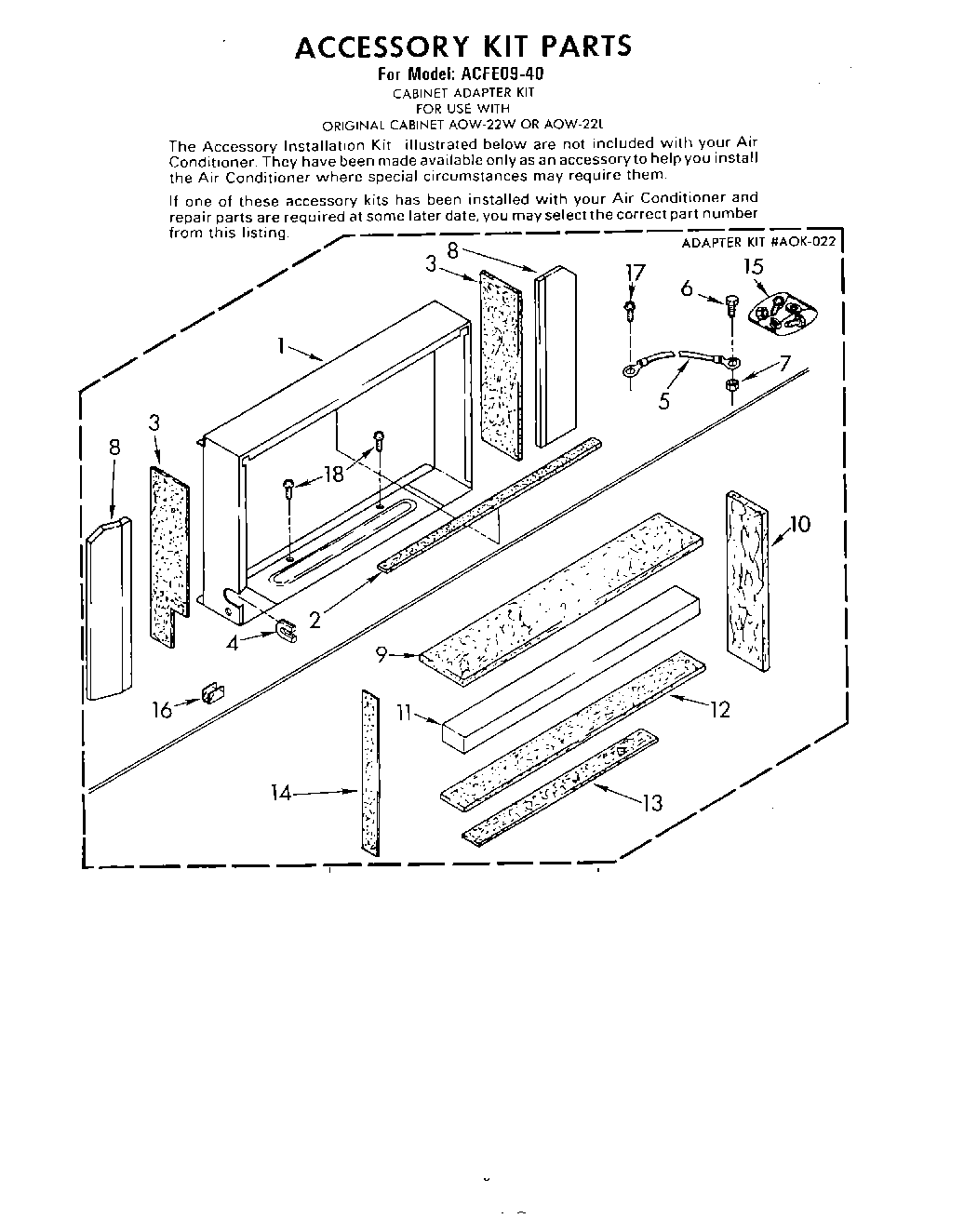

ACFE0940 05 – ACCESSORY KIT PARTS

Products

Position	Product
2	Insulation, Top
3	Insulation, Cabinet Extension (R.S.)
3	Insulation, Cabinet Extension (L.S.)
4	Grommet, Appliance Cable
5	Wire, Ground
6	Screw, 8 x 3/8
7	WP486255 Whirlpool Air Conditioner Nut
8	Spacer Assembly, Rear (R.S.)
8	Spacer Assembly, Rear (L.S.)
9	Insulation, Cabinet (Front Top)
10	Insulation, Cabinet (2) (Front Sides)
11	Stop
12	Seal, Cabinet Bottom
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Seal, Unit Side (2)
15	Bag, Accessory
16	Clip (12)
17	Screw, 8 x 3/8
18	Screw, 8 x 3/8
