ACFW0940 01 – CABINET AND FRONT
Written by
in

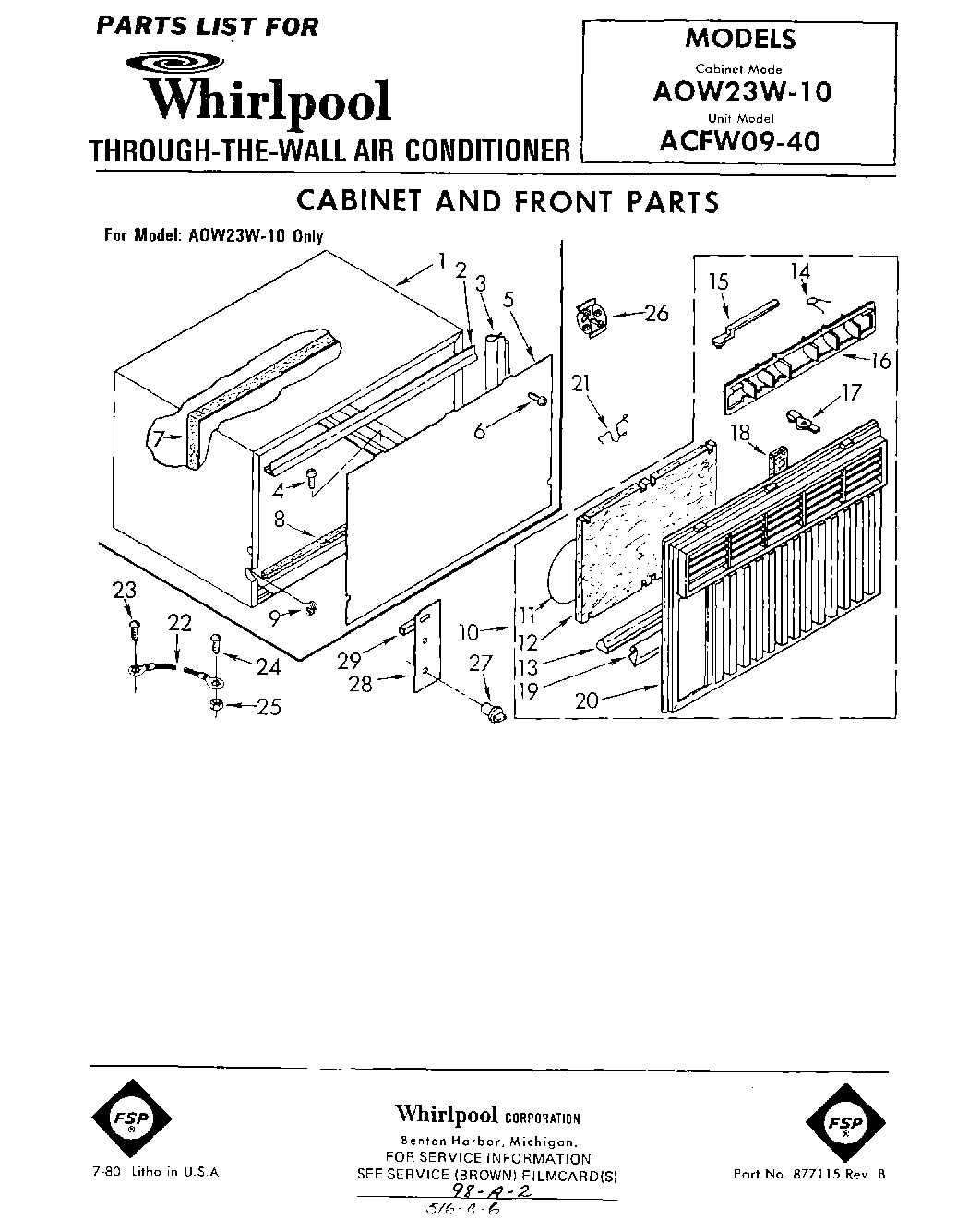

ACFW0940 01 – CABINET AND FRONT
Products
Position
Product
1
cabinet (requires insulation no. 649939)
4
Screw (Window Lock Bracket)
5
Panel, Front
6
WP487353 Whirlpool Refrigerator Screw
7
seal, weather
8
Seal
9
Grommet, Appliance Cable
10
Front, Cabinet Assembly
11
Retainer, Filter
12
Filter
13
Seal
14
Detent Spring (2)
15
Link, Vertical Louver (2)
16
Louver, Vertical
17
Handle, Vertical Louver (2)
18
Seal
19
WP854334 Whirlpool Air Conditioner Sealing Strip
20
front, cabinet
21
Clip (2)
22
Wire, Ground
23
Screw, 8 x 3/8
24
Screw, 8 x 3/8
25
WP486255 Whirlpool Air Conditioner Nut
26
accessory bag
27
Knob, Control
28
Plate, Escutcheon
29
Spacer, Escutcheon Plate (3)
←
