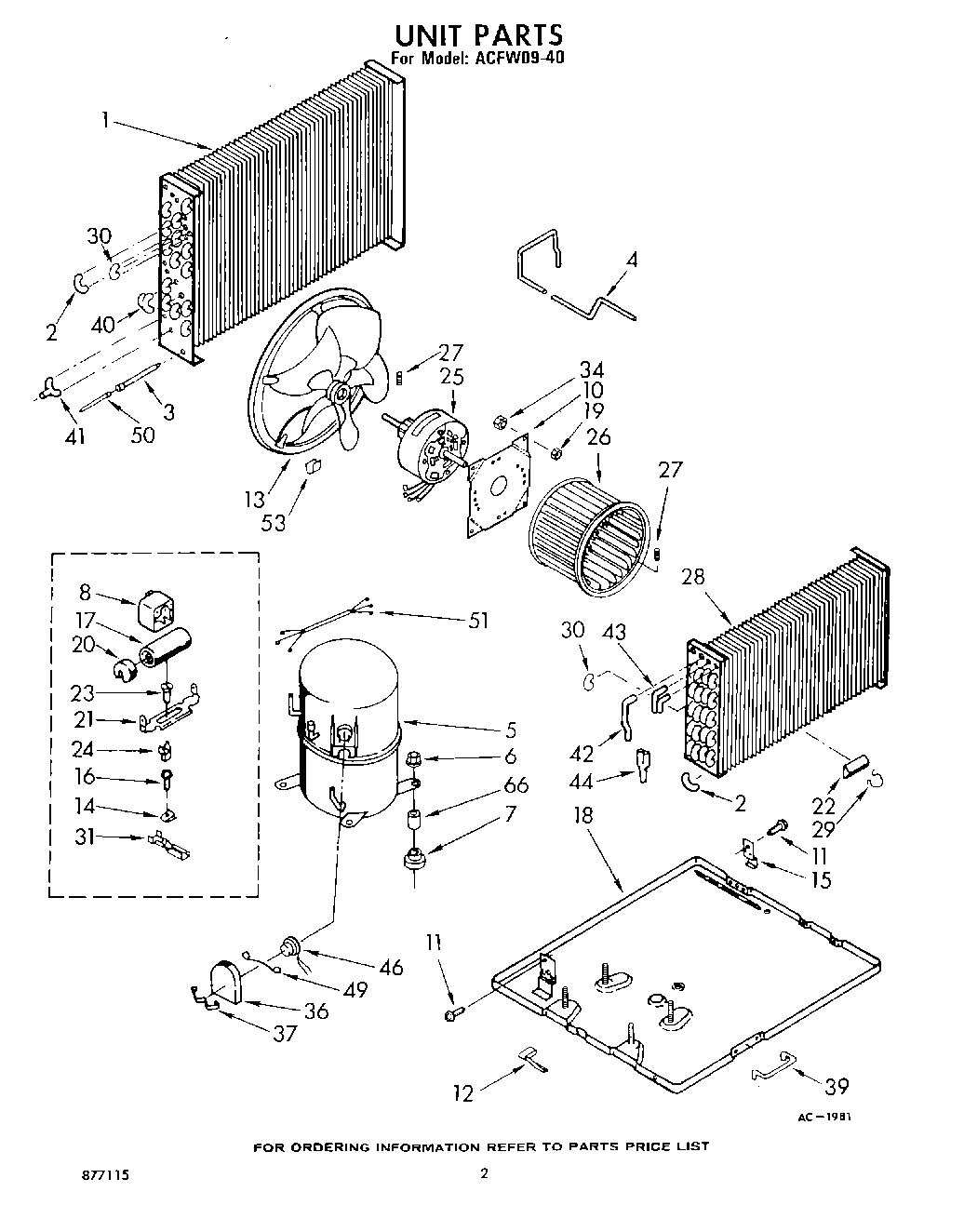

ACFW0940 02 – UNIT , LIT/OPTIONAL

ACFW0940 02 – UNIT , LIT/OPTIONAL

Written by

in

ACFW0940 02 – UNIT , LIT/OPTIONAL

Products

PositionProduct
1Condenser
2Bend, Return Evaporator (4)
3Tube & Strainer (Includes Item 23)
4Tube, Restrictor
5Compressor
6Locknut (3)
7Grommet, Compressor (3)
8Relay (Component Of Start Kit)
10WPL 998024
11Screw, Repair
11WP489069 Whirlpool Compactor Screw
12Clamp, Restrictor Tube
13Blade, Fan
14488660 Whirlpool Refrigerator Nut
15WPL 647824
16WP965173 Whirlpool Dishwasher Screw
17Capacitor, 41-53 MFD (Component Of Start Kit)
18Base
19WP488130 Whirlpool Air Conditioner Nut
20Cap, Capacitor (Component Of Start Kit)
21Bracket, Capacitor (Component Of Start Kit)
22Anticipator, Temperature
23Screw, 10 x 5/8 (Component Of Start Kit)
24Multiplier, Terminal (Component Of Start Kit)
25Motor
26Wheel, Blower
27Setscrew, 5/16 x 1/4
28Evaporator
29Clip, Anticipator
30Bend, Return Evaporator (11)
31Clip, Terminal (Component Of Start Kit)
34Nut, Hex (4)
36Cover, Terminal
37Strap, Terminal Cover
39WPL 647971
40Bend, Return 3-Way
41Bend, Return (3-Way)
42Tube, Outlet (Rear)
43Tube, Outlet (Front)
44Tube, Flow Divider
46Overload
49Retainer, Overload
50Strainer
51Harness, Wiring
53Clip, Balancing
66Wire, Red, (25 Ft.)
66978027 Whirlpool Refrigerator Primary Valve
66WP978025 Whirlpool Refrigerator Valve
66978026 Whirlpool Refrigerator Primary Valve
66WPL 484220
66212643 Whirlpool Refrigerator Permagum Sealer
66WPL 649939
66Sleeve, Compressor (3)
66WPL 484366
66WPL 877115
66978030 Whirlpool Refrigerator Valve
66VALVE, ACCESS (1/2“)
66Lacquer, Starlight Gray (1/2 Pt. Uncut)
66Oil, Turbine 1 Fl. Oz.
66No Drip Tape (For Sweating Tubes)
66VALVE, ACCESS (5/8“)
66Cover, Winter (27 x 19 x 6 to 27“)
66WPL 799351
66Wire, 25“ Roll (White 12 GA.)
66Wire, 25“ Roll (Black 12 GA.)
66WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
66WPL 947601
