ACFW0940 03 – AIRFLOW
Written by
in

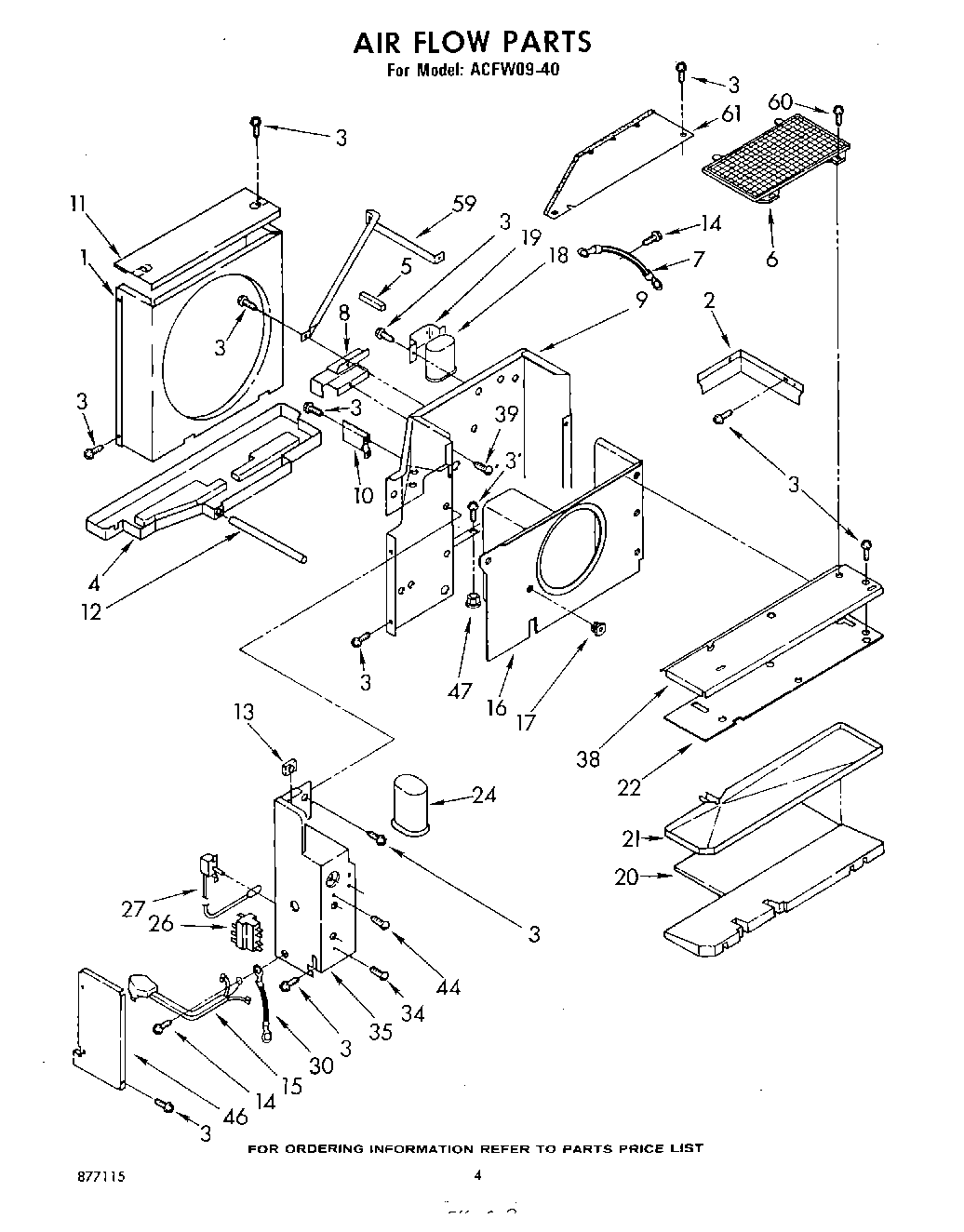

ACFW0940 03 – AIRFLOW
Products
Position
Product
1
Shroud
2
Channel, Wiring
3
WP489069 Whirlpool Compactor Screw
3
Screw, Repair
4
Pan, Condensate
5
WP854334 Whirlpool Air Conditioner Sealing Strip
6
Guard, Evaporator Impeller
7
Ground Wire
8
Bracket, Fan Motor Capacitor
9
Wall
10
Baffle
11
Cover, Shroud (Condenser)
12
Tube, Condensate
13
Grommet
14
WPW10141604 Whirlpool Screw
15
Cable
16
Housing, Blower Wheel
17
Fastener, snap (2)
18
Capacitor, Compressor Running
19
Bracket (Upper)
19
Bracket (Lower)
20
Insulation, Condensate Pan
21
Pan, Evaporator Condensate
22
Insulation, Evaporator Cover
24
Capacitor, Fan
26
Switch, Pushbutton
27
Control, Temperature
30
Wire, Ground
34
Screw, 6-20 x .362
35
Box, Control
38
Cover, Evaporator
44
Screw, 6-32 x .175
46
Dividing Wall Assembly, L.S.
47
Clip, Speed
59
Support, Unit
60
WP488729 Whirlpool Refrigerator Door Screw
61
Cover, Discharge Assembly
←
