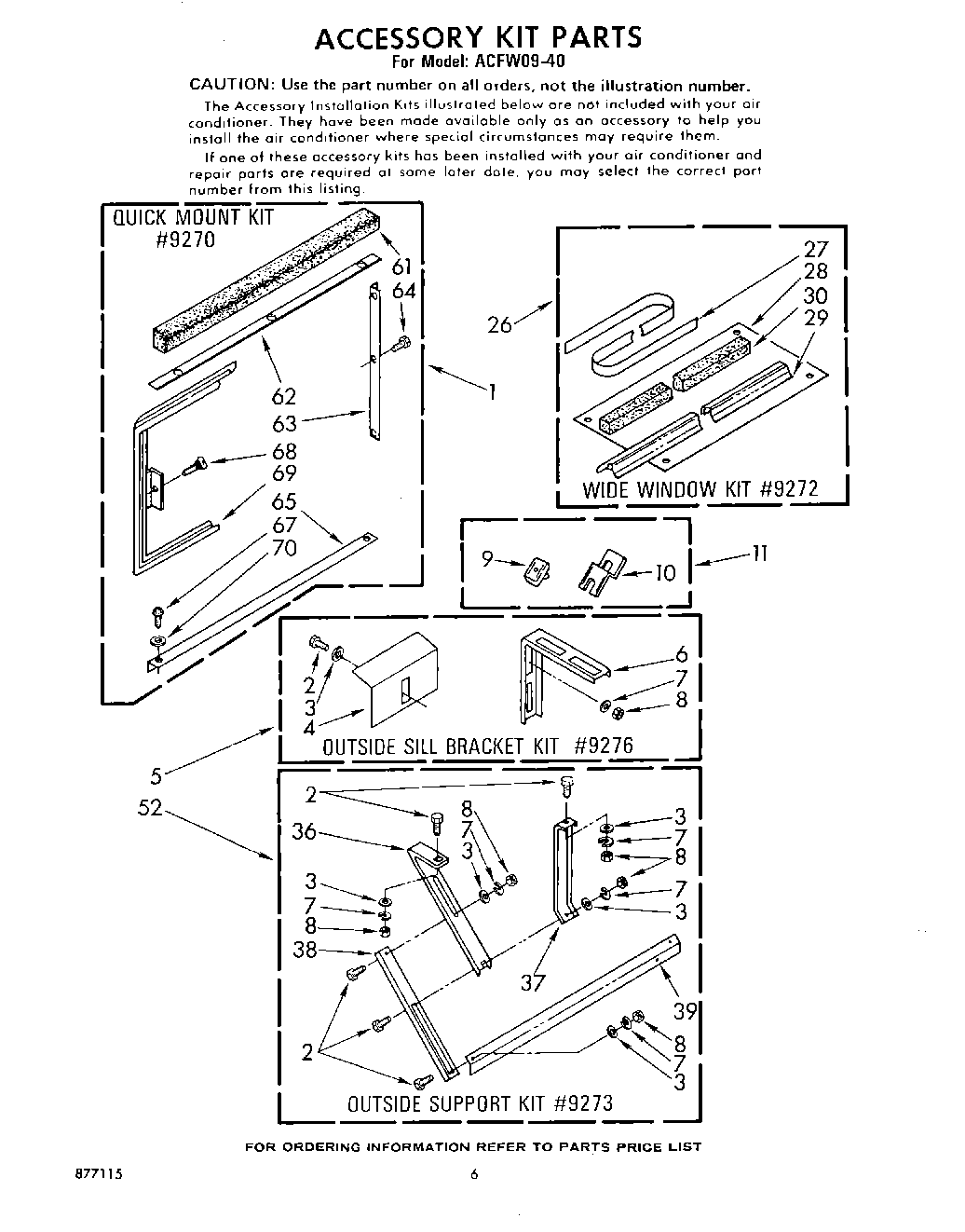

ACFW0940 04 – ACCESSORY KIT

Products

PositionProduct
1Kit, Quick Mount
2Bolt, 1/4 x 3/4 (6)
3WP120393 Whirlpool Washer Assembly
4Bracket, Sill Mounting (2)
5Kit, Outside Sill Bracket
6Bracket, Rail Support (2)
7Lockwasher (6)
8Nut, Hex (6)
9WPL 647850
10Support, Cup
11Kit, Condensate Cup
26Kit, Wide Window
27Strip, Seal
28Board, Filler
29Bracket, Mounting (R.S.)
29Bracket, Mounting (L.S.)
30Gasket, Meeting Rail
36Support, Cabinet (2)
37Retainer, Cabinet (2)
38Extension, Support (2)
39Bracket, Support
52Kit, Outside Support
61Gasket, Meeting Rail
62Strip, Seal
63Retainer, Curtain (2)
64Screw, 8 x 7/16
65Channel, Bottom
67WP308685 Whirlpool Microwave Screw
68Thumbscrew (2)
69Curtain Housing Assembly, R.S.
69Curtain Housing Assembly, L.S.
70Washer (2)
70Instructions, Installation (Kit, Quick Mount)
70Instructions, Installation (Kit, Wide Window)
70Instructions, Installation (Outside Sill Kit)
70Instructions, Installation (Kit, Outside Support)
70Instructions, Installation (Kit, Standard Installa
