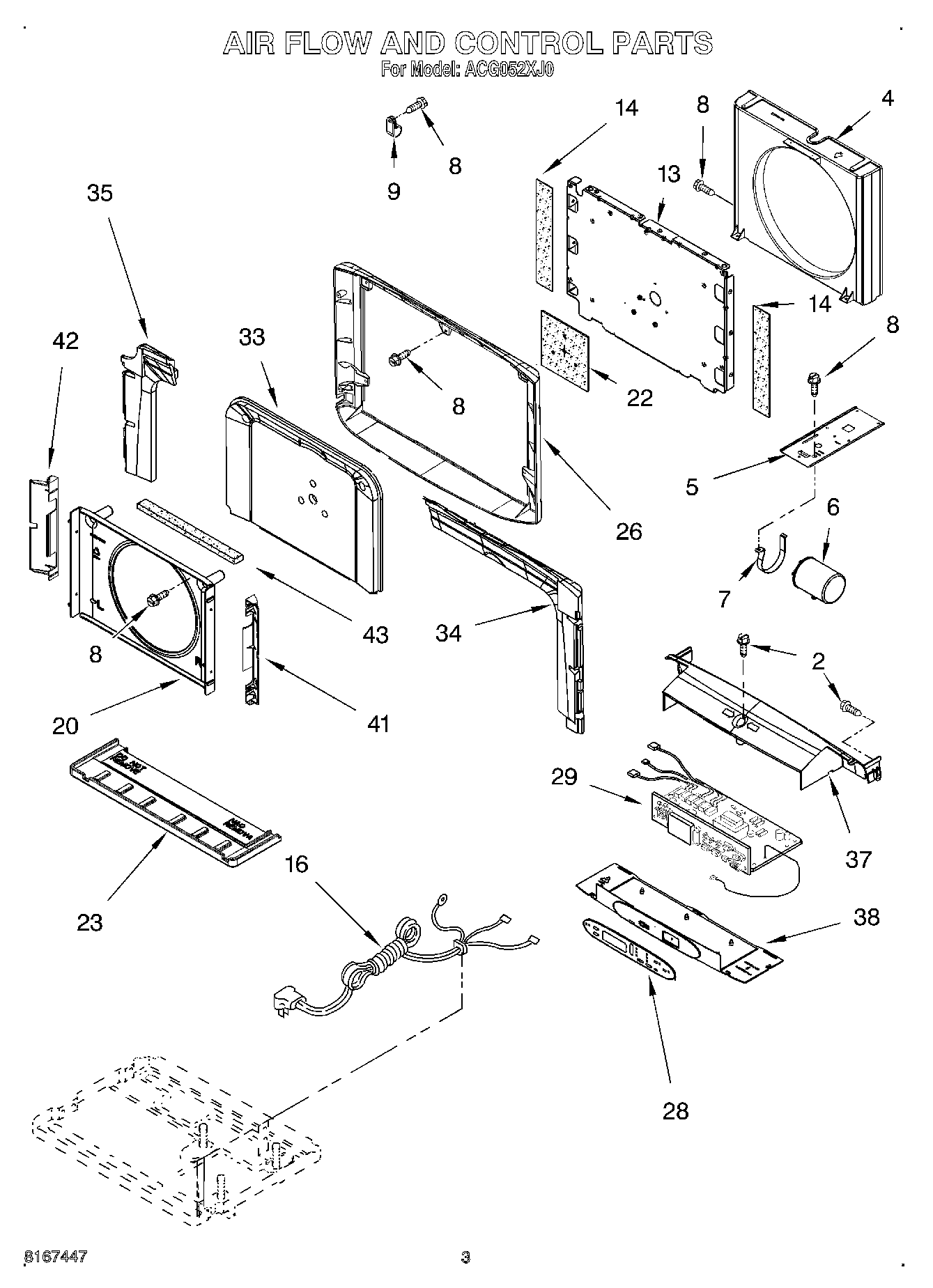

ACG052XJ0 02 – AIR FLOW AND CONTROL

Products

Position	Product
2	Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Screw,
9	Relief, Strain
13	Wall, Dividing
14	Insulation, Dividing Wall
16	Cord, Appliance
20	Shroud, Evaporator
22	Insulation, Motor Gasket
23	Pan, Drain
26	Collar, Front Mounting
28	Overlay
29	Circuit Board Assembly
33	Insulation, Center Dividing Wall
34	Insulation, Right Side
35	Insulation, Left Side
37	Top Enclosure Assembly
38	Bottom Enclosure Assembly
41	Shroud Extension, Right Side
42	Shroud Extension, Left Side
43	Seal
