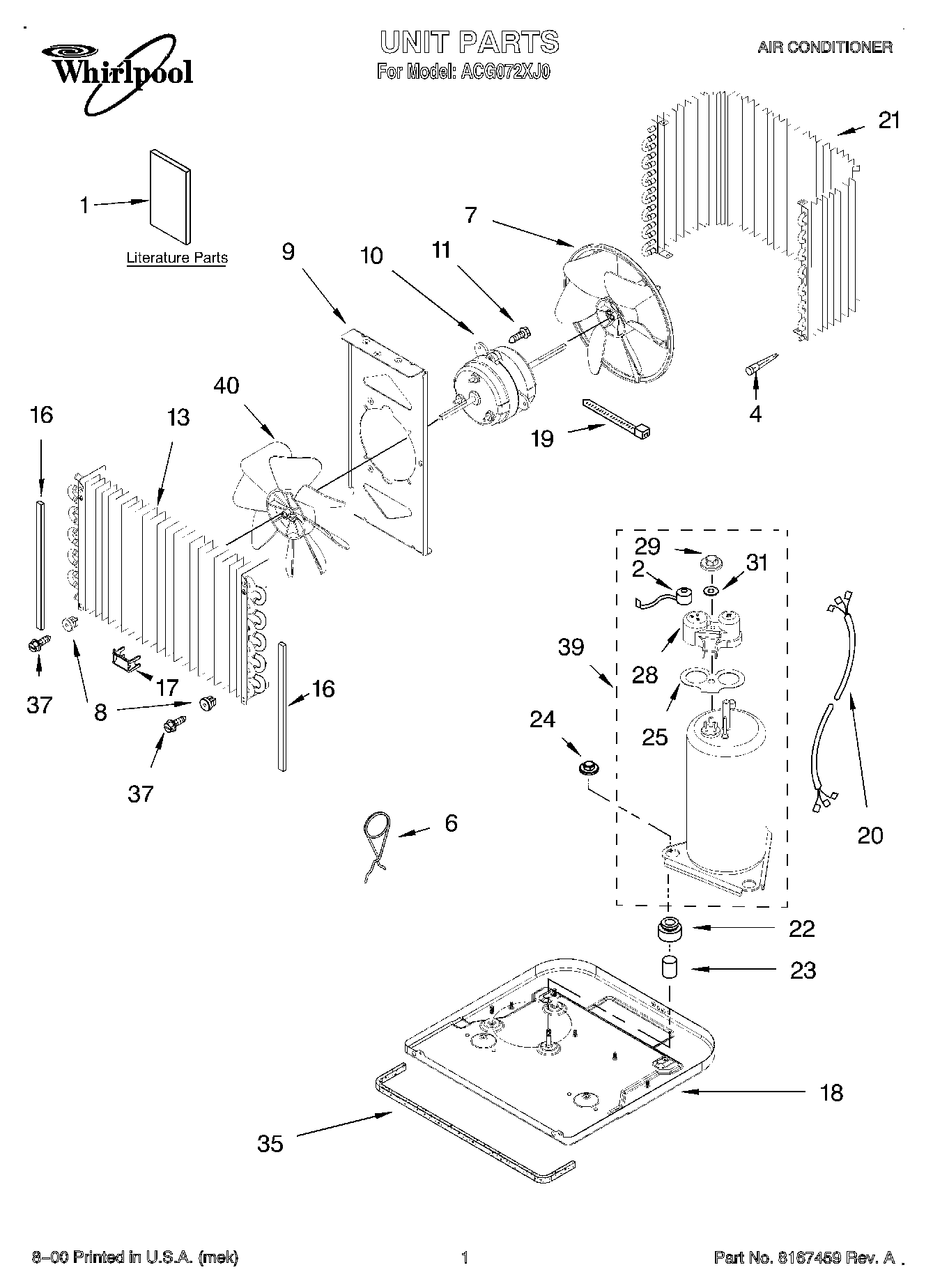

ACG072XJ0 01 – UNIT, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Use & Care Guide)
1	LITERATURE PARTS (Energy Hangtag)
1	LITERATURE PARTS (Wiring Diagram Label)
2	Overload
4	WP1162526 Whirlpool Air Conditioner Strainer
6	Tube, Restrictor
7	Fan Blade, Condenser
8	Grommet
9	Bracket, Motor
10	Motor, Fan
11	WP308685 Whirlpool Microwave Screw
13	Evaporator
16	Seal
17	Clip, Thermistor
18	Base
19	WPW10339879 Whirlpool Wire Tie
20	Harness, Wiring
21	Condenser
22	Grommet
23	Sleeve, Compressor Grommet
24	Locknut
25	WP950035 Whirlpool Cover Gasket
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
31	Gasket, Nut
35	Seal, Base
37	WP489069 Whirlpool Compactor Screw
39	Compressor Assembly
40	Fan Blade, Evaporator
