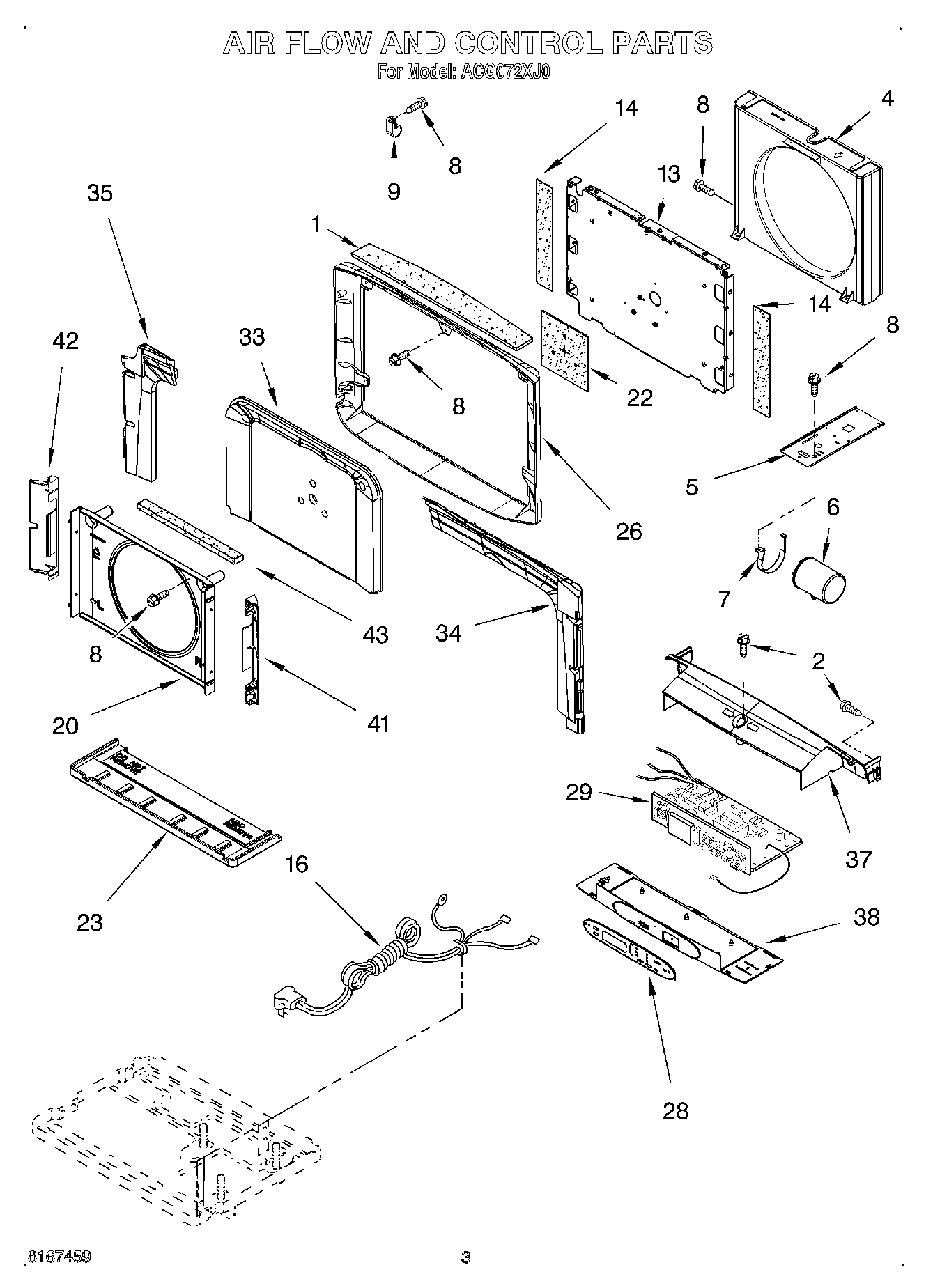

ACG072XJ0 02 – AIRFLOW AND CONTROL

Products

PositionProduct
1Insulation, Cover Top
2Screw
4Shroud, Condenser
5Support, Unit
6Capacitor, Running
7Bracket, Capacitor
8Screw,
9Relief, Strain
13Wall, Dividing
14Insulation, Dividing Wall
16Cord, Appliance
20Shroud, Evaporator
22Insulation, Motor Gasket
23Pan, Drain
26Collar, Front Mounting
28Overlay
29Circuit Board Assembly
33Insulation, Center Dividing Wall
34Insulation, Right Side
35Insulation, Left Side
37Top Enclosure Assembly
38Bottom Enclosure Assembly
41Shroud Extension, Right Side
42Shroud Extension, Left Side
43Seal
