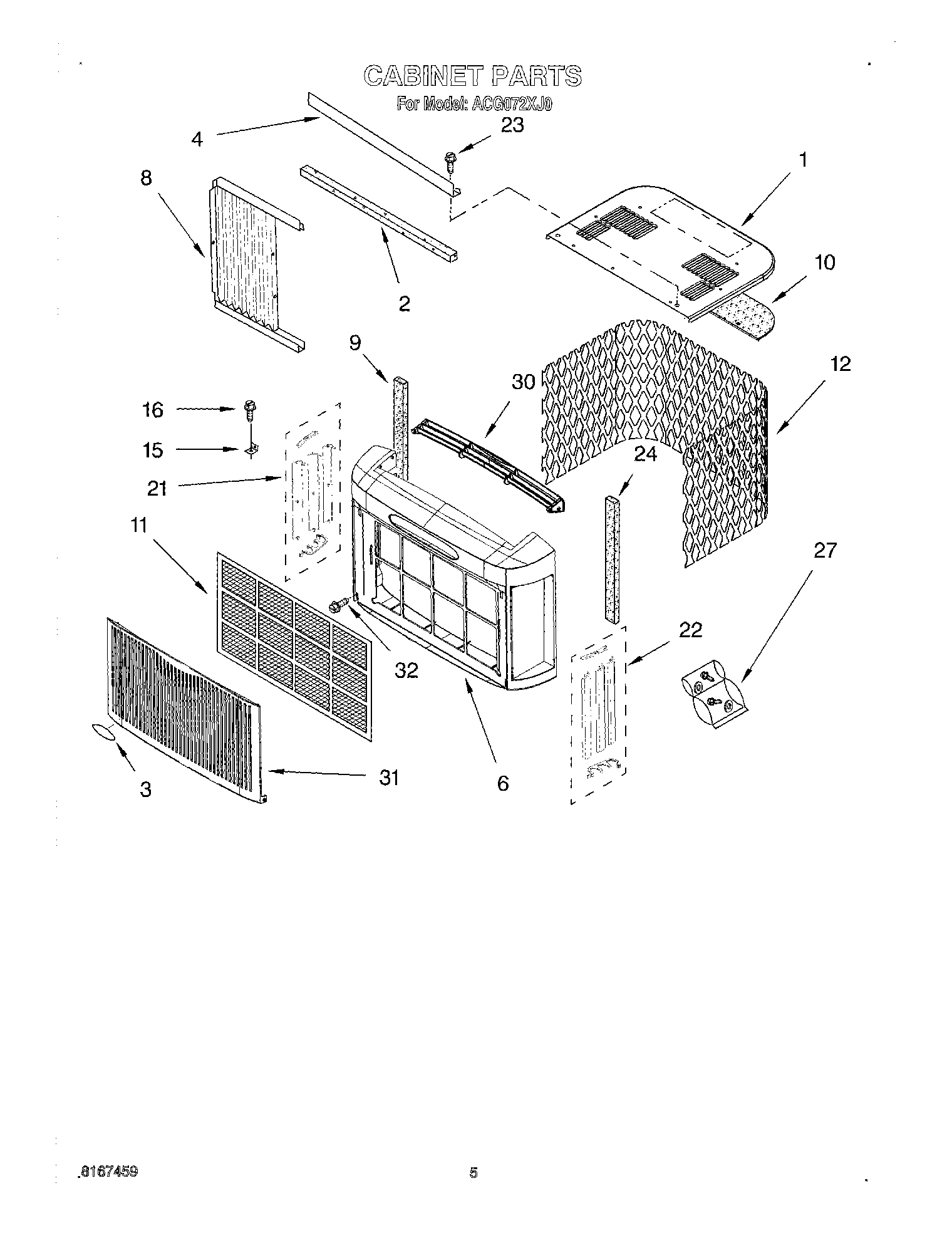

ACG072XJ0 03 – CABINETadmin2025-04-26T10:53:11+00:00ACG072XJ0 03 – CABINET
Products
| Position | Product |
|---|
| 1 | Top Cover |
| 2 | Gasket, Meeting Rail |
| 3 | Nameplate |
| 4 | Top Channel |
| 6 | Front, Cabinet |
| 8 | Curtain (L.S.) |
| 8 | Curtain (R.S.) |
| 9 | Seal |
| 10 | Insulation, Top |
| 11 | Filter, Woven |
| 12 | Rear Grille |
| 15 | Bracket |
| 16 | Screw, Wood 8-15 x .750 |
| 21 | Louver, Assembly Left |
| 22 | Louver, Assembly Right |
| 23 | Screw, 8-18 x 3/8 |
| 24 | Seal, Header Plate |
| 27 | Bag, Accessory |
| 30 | Louver, Top |
| 31 | Front Grille |
| 32 | Condensate, Drain Kit |
| 32 | Screw |
| 32 | Remote Control |
