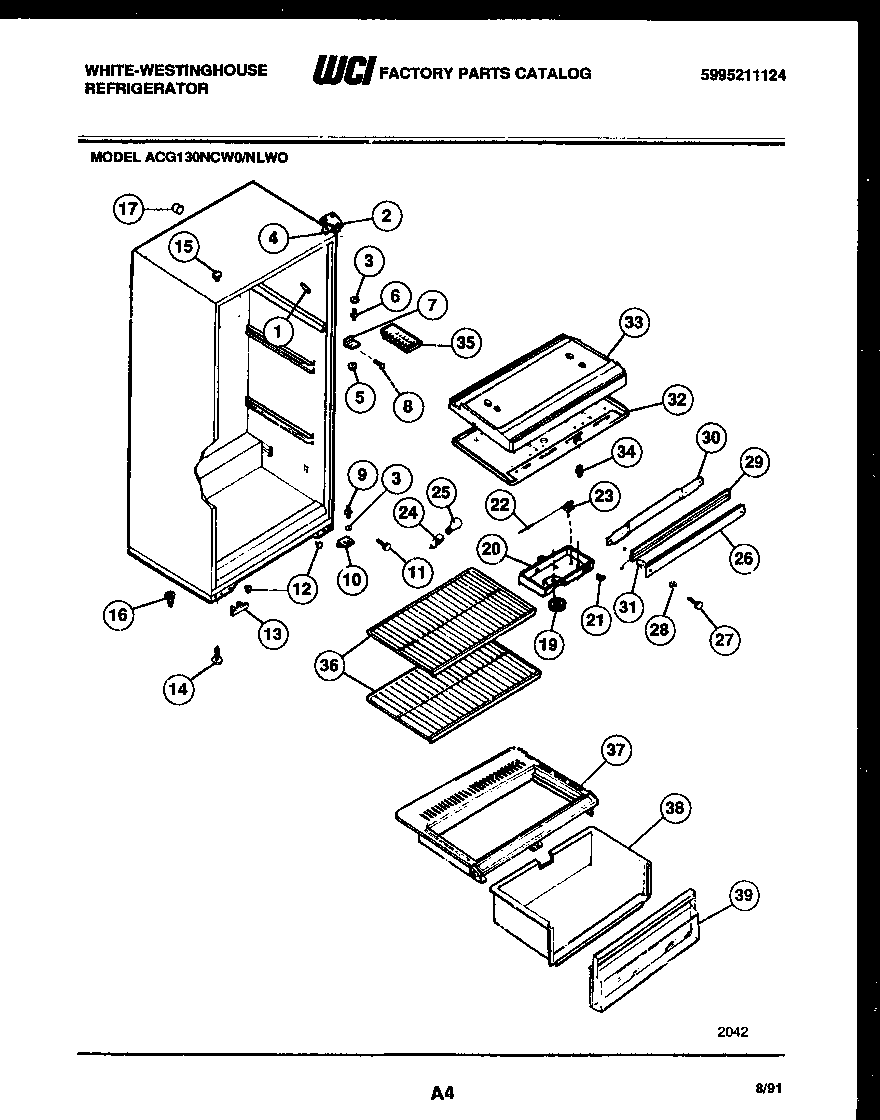

ACG130NCW0 03 – CABINET PARTS

Products

Position	Product
1	TRIM-CABINET CORNER, WHITE
2	WCI 3206100
3	WASHER, .34 X .62 X .05, NYLON
4	SHIM - UPPER HINGE
5	WCI 5308000186
6	WCI 5308000184
7	BRACKET-CTR HINGE
9	5303001321 Frigidaire Refrigerator Lower Hinge Pin
10	WCI 3206136
11	241710601 Frigidaire Refrigerator Screw
12	PLUG-BUTTON
13	WCI 3206135
14	SCREW-LEVELING, (2)
15	PLUG-BUTTON, WHITE
16	WCI 5303211514
17A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
17	TUBE-RUBBER
19	WCI 5303209251
20A	PLUG-BUTTON, CONTROL BOX (NON-ILLUSTRATED)
20	WCI 5303211508
20B	5304455650 Frigidaire Refrigerator Screw
21	WCI 3206129
22	TUBE
23A	WCI 5303001260
23	WCI 5303211506
24	218906802 Frigidaire Light Lamp Socket
25	316538904 Frigidaire Oven Lamp Light
26	WCI 3206121
27	SCREW - MULLION (2)
28	WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
29	WCI 3206120
30	WCI 5308003604
31	SPACER-MULLION MTG, STEEL
32	WCI 5303271490
32A	WCI 5303001380
33	WCI 5303271492
33B	WCI 5303271494
33A	3205266 Frigidaire Refrigerator Edge Protector
34	5309918806 Frigidaire Refrigerator Light Switch Door
35	215667501 Frigidaire Refrigerator Ice Tray Primary
36	WCI 5303275954
37	COVER-CRISPER PAN
38	PAN-CRISPER, FULL-WIDTH
39	WCI 3206106
