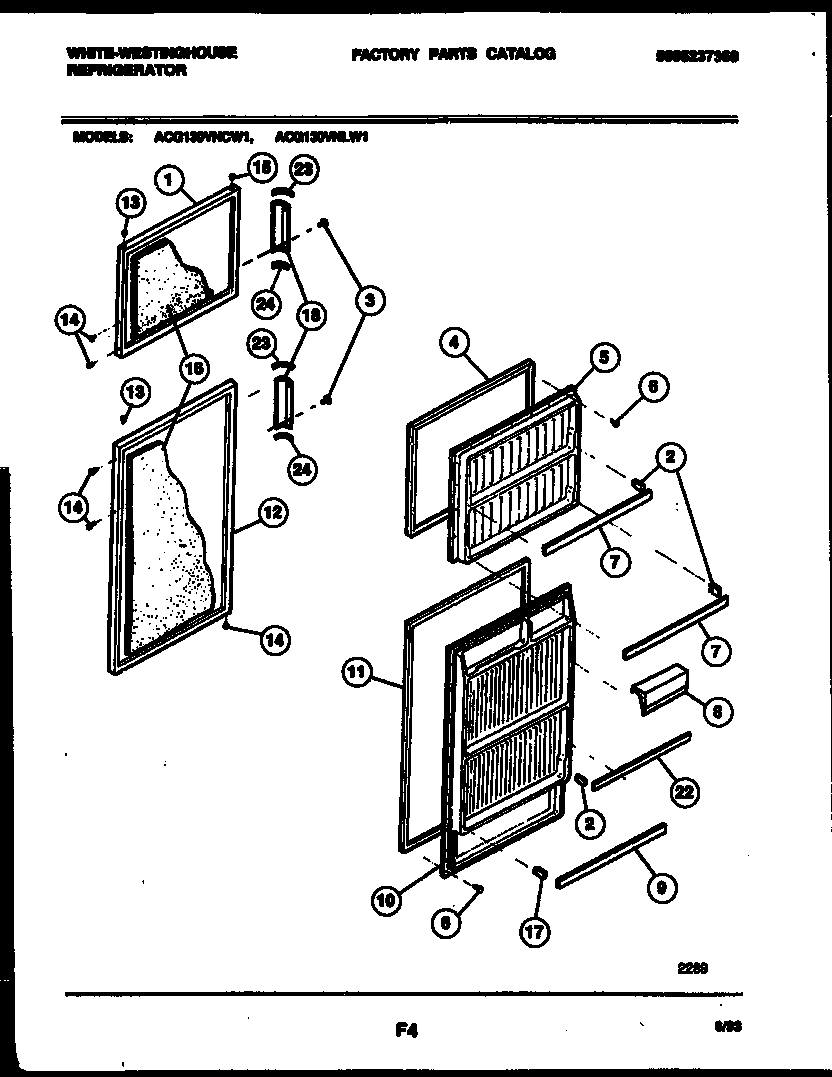

ACG130VNCD1 02 – DOOR PARTS

Products

PositionProduct
*77444CONTAINER-EGG
1WCI 5303916965
2A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
23206165 Frigidaire Bar Endcap Right Hand
3WCI 3508013645
4GASKET, FRZR DOOR, BROWN, MAGNETIC
5PANEL-INNER DOOR, FRZR
65304455651 Frigidaire Refrigerator Screw
8DOOR-DAIRY
9RACK-DOOR, FULL-WIDTH, WIDE
10PANEL-INNER DOOR, REFR
11GASKET-REFR DOOR, MAGNETIC
12WCI 5303916962
13BEARING-HINGE
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PLUG-BUTTON, ALMOND, HINGE BRG HOLE
16INSULATION-BULK (NON-ILLUSTRATED)
17WCI 3206151
17AWCI 3206150
18HANDLE
22RACK-DOOR, 23.16“ X 1.12“
23WCI 5308010239
24END CAP-BOTTOM (2)
