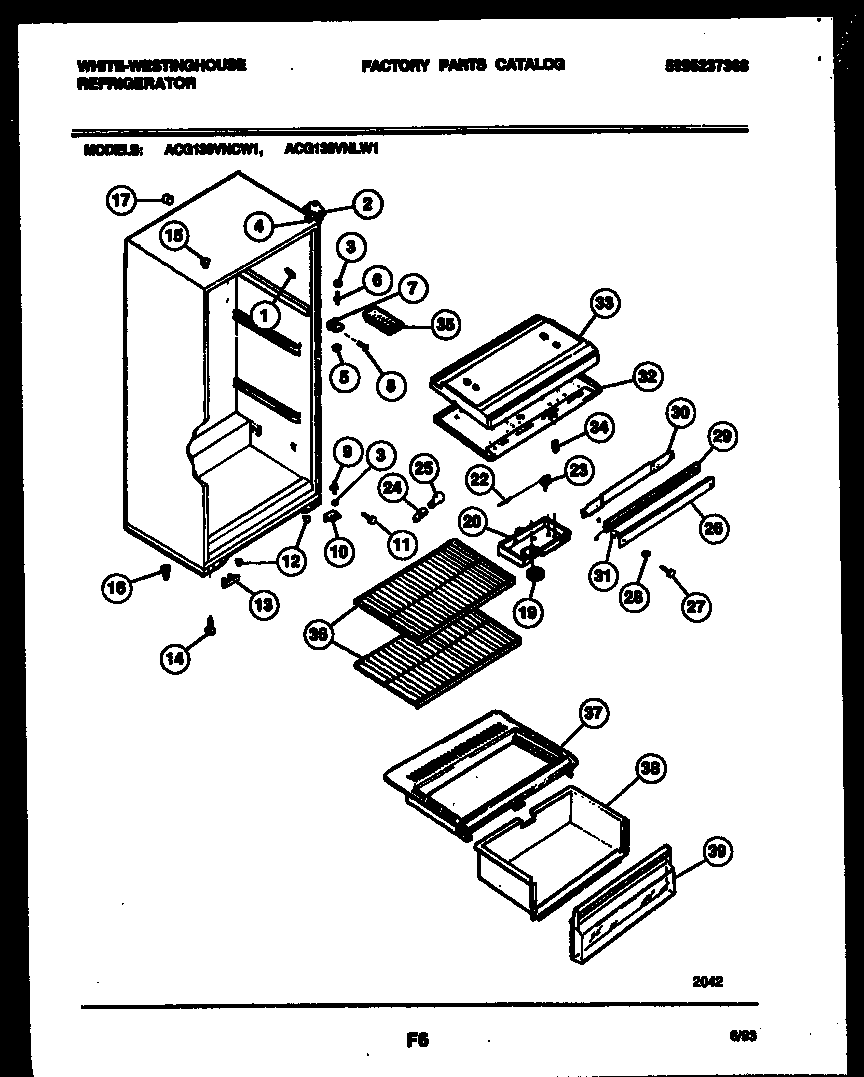

ACG130VNCD1 03 – CABINET PARTS

Products

Position	Product
1	TRIM-CABINET CORNER, ALMOND
2	WCI 3206100
3	WASHER, .34 X .62 X .05, NYLON
4	SHIM – UPPER HINGE
5	WCI 5308000186
6	WCI 5308000184
7	BRACKET-CTR HINGE
9	5303001321 Frigidaire Refrigerator Lower Hinge Pin
10	WCI 5303917250
11	241710601 Frigidaire Refrigerator Screw
12	PLUG-BUTTON
13	WCI 3206135
14	SCREW-LEVELING, (2)
15	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
16	WCI 5303211514
17A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
17	TUBE-RUBBER
19	WCI 5303206678
20A	PLUG-BUTTON, CONTROL BOX (NON-ILLUSTRATED)
20B	5304455650 Frigidaire Refrigerator Screw
20	WCI 5303283673
22	TUBE
23	WCI 5303211506
23A	WCI 5303001260
24	218906802 Frigidaire Light Lamp Socket
25	LIGHT BULB/LAMP, INCAND, OVEN, 250 V
26	WCI 3206125
27	SCREW – MULLION (2)
28	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
29	WCI 5303269640
30	WCI 215170801
31	SPACER-MULLION MTG, STEEL
32	WCI 5303271490
32A	WCI 5303001380
33B	WCI 5303283674
33	WCI 5303271492
33A	3205266 Frigidaire Refrigerator Edge Protector
34	5309918806 Frigidaire Refrigerator Light Switch Door
35	215667501 Frigidaire Refrigerator Ice Tray Primary
36	SHELF-SLIDING, WIRE, REFR SECTION
37	WCI 5303271471
38	PAN-CRISPER, FULL-WIDTH
39	WCI 5303298526
