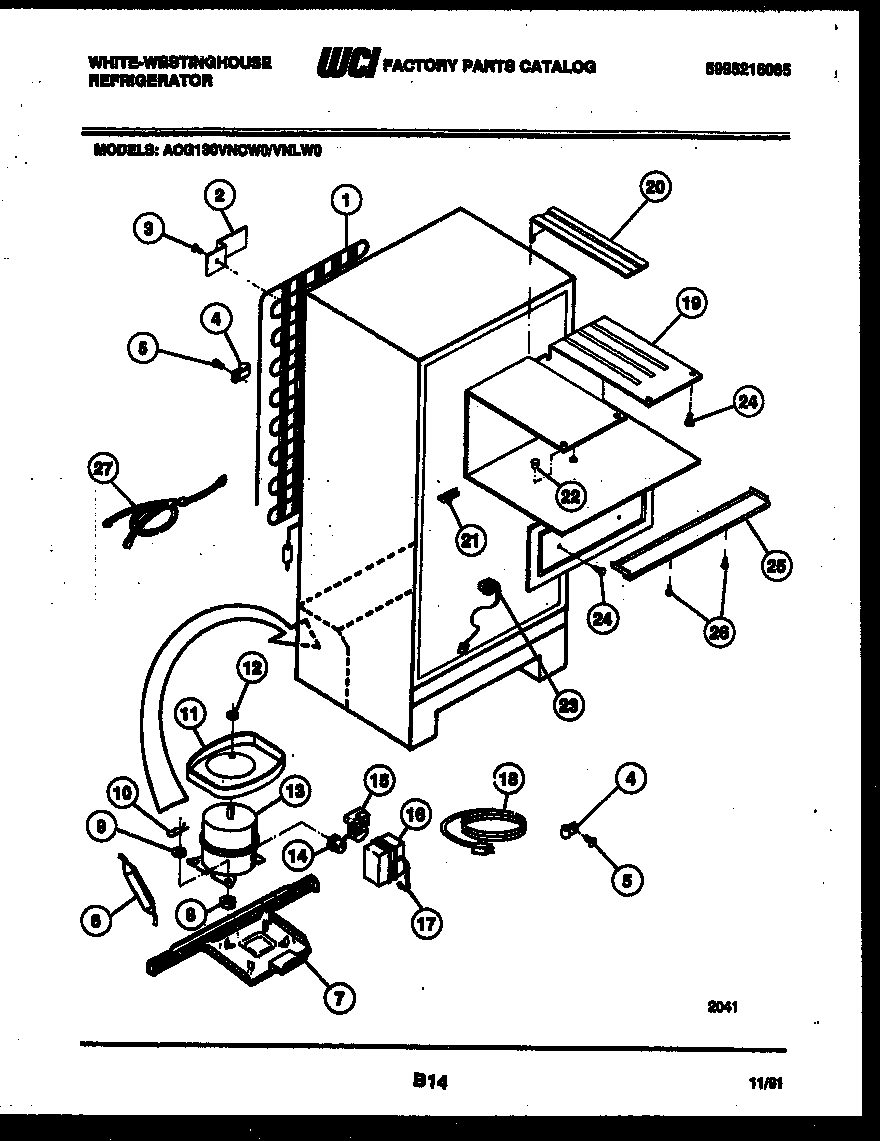

ACG130VNLD0 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*56261HOT TUBE REPAIR KIT, SERVICE (NI)
*56261BRACKET, GROUNDING (NI)
*56261NUT, 8-32 HEX, (2) (NI)
1WCI 215066900
2BRACKET-MTG (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
35308000039 Frigidaire Refrigerator Screw
45303001199 Frigidaire Refrigerator Wiring Harness Clamp
4ACLAMP, SERVICE CORD, ALUMINUM, W/ INSULATOR
55304455651 Frigidaire Refrigerator Screw
65303305677 Frigidaire Replacement Filter Dryer Filters
7A5304500008 Frigidaire Oven Screw
7WCI 3206126
8218513300 Frigidaire Refrigerator Compressor Mount Grommet
9WASHER-COMPR MTG
10CLIP – COMPRESSOR MTG
11BPAN RETAINER KIT, SERVICE
11PAN-DEFROST DRAIN, ORIG/SVCE COMPR
11A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
12Nut,lock `1/4-20 ,drain pan mtg
13WCI 3916023
14WCI 5303283672
15WCI 5303211376
175303006412 Frigidaire Refrigerator Cover Mounting Strap
18CORD-ELECTRIC POWER
19WCI 5303271496
20WCI 3200734
21CLAMP-CONTROL BULB (NON-ILLUSTRATED)
22WCI 08006983
23WCI 5303283675
245304455650 Frigidaire Refrigerator Screw
26WCI 5303001380
27WCI 5303211512
