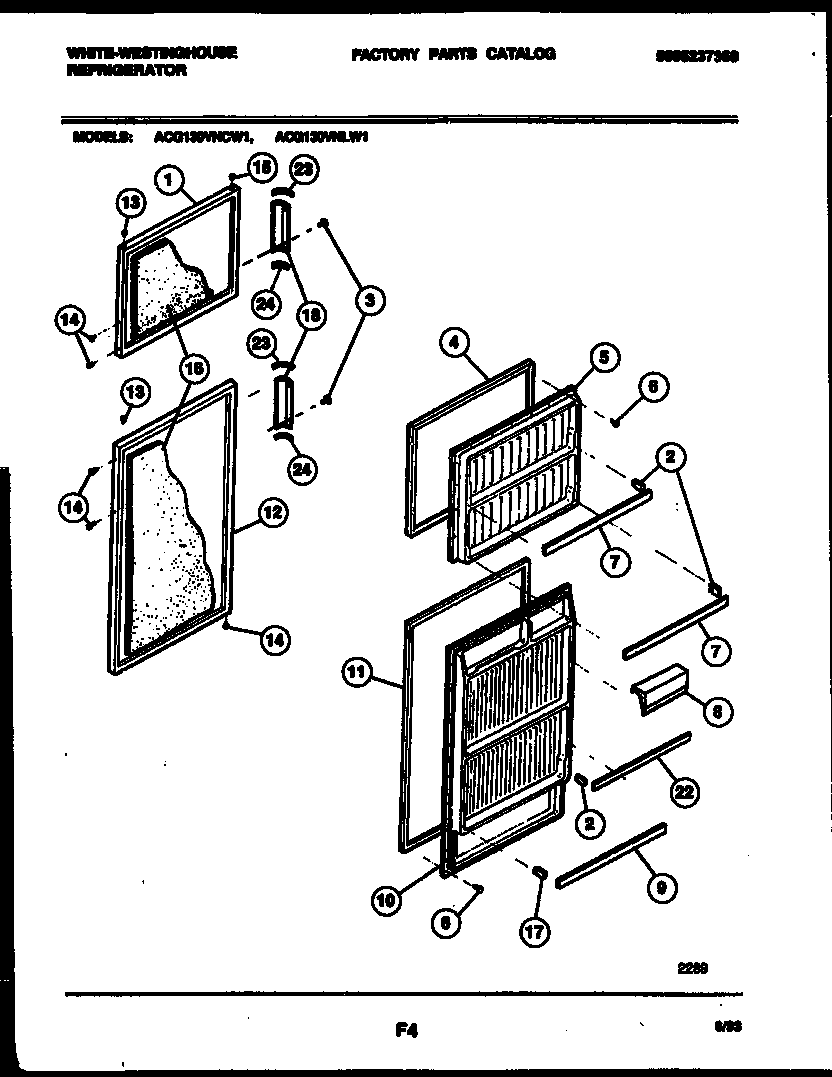

ACG130VNLD1 02 – DOOR PARTS

Products

Position	Product
*77444	CONTAINER-EGG
1	WCI 5303916965
2A	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
2	3206165 Frigidaire Bar Endcap Right Hand
3	WCI 3508013645
4	GASKET, FRZR DOOR, BROWN, MAGNETIC
5	PANEL-INNER DOOR, FRZR
6	5304455651 Frigidaire Refrigerator Screw
8	DOOR-DAIRY
9	RACK-DOOR, FULL-WIDTH, WIDE
10	PANEL-INNER DOOR, REFR
11	GASKET-REFR DOOR, MAGNETIC
12	WCI 5303916962
13	BEARING-HINGE
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
16	INSULATION-BULK (NON-ILLUSTRATED)
17	WCI 3206151
17A	WCI 3206150
18	HANDLE
22	RACK-DOOR, 23.16`` X 1.12``
23	WCI 5308010239
24	END CAP-BOTTOM (2)
