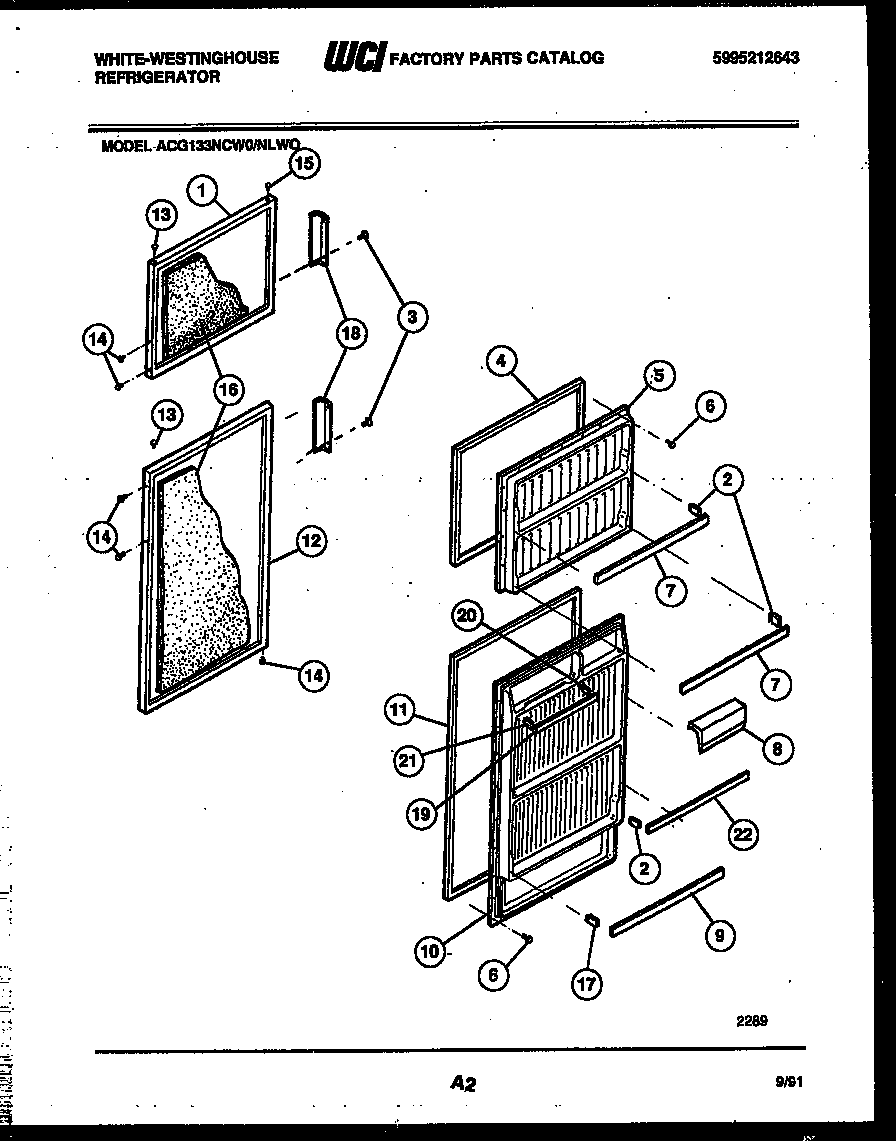

ACG133NCD0 02 – DOOR PARTS

Products

Position	Product
*50744	WCI 3204522
1	WCI 5303916965
2A	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
2	3206165 Frigidaire Bar Endcap Right Hand
3	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
4	GASKET, FRZR DOOR, BROWN, MAGNETIC
5	PANEL-INNER DOOR, FRZR
6	5304455651 Frigidaire Refrigerator Screw
7	RACK-DOOR, NARROW, (2)
8	WCI 5303206149
9	215366002 Frigidaire Refrigerator Door Wide Rack
10	WCI 5303276182
11	GASKET-REFR DOOR, MAGNETIC
12	WCI 5303916962
13	BEARING-HINGE
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
16	INSULATION-BULK (NON-ILLUSTRATED)
17	WCI 3206151
17A	WCI 3206150
18	HANDLE
19	WCI 5303281601
20	SUPPORT-DOOR RACK, EXTENDS .56``, RH
21	SUPPORT-DOOR RACK, EXTENDS .56``, LH
22	RACK-DOOR, 23.16`` X 1.12``
