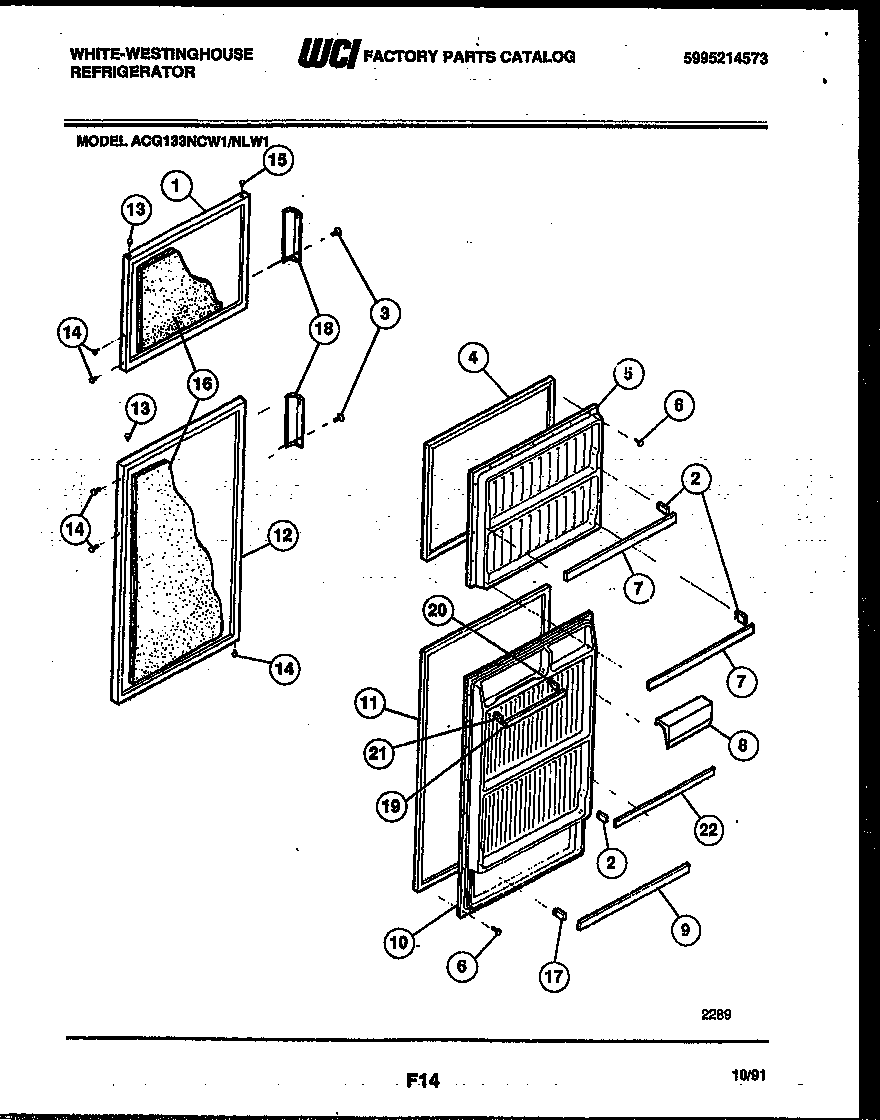

ACG133NLW1 02 – DOOR PARTSadmin2025-04-26T08:42:22+00:00ACG133NLW1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *49127 | WCI 3204522 |
| 1 | WCI 5303916963 |
| 2A | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 2 | 3206165 Frigidaire Bar Endcap Right Hand |
| 3 | SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2 |
| 4 | GASKET, FRZR DOOR, BROWN, MAGNETIC |
| 5 | PANEL-INNER DOOR, FRZR |
| 6 | 5304455651 Frigidaire Refrigerator Screw |
| 7 | RACK-DOOR, NARROW, (2) |
| 8 | WCI 5303206149 |
| 9 | 215366002 Frigidaire Refrigerator Door Wide Rack |
| 10 | WCI 5303276182 |
| 11 | GASKET-REFR DOOR, MAGNETIC |
| 12 | WCI 5303916960 |
| 13 | BEARING-HINGE |
| 14 | 240494001 Frigidaire Refrigerator Plug Button |
| 15 | PLUG-BUTTON, WHITE, HINGE BRG HOLE |
| 16 | INSULATION-BULK (NON-ILLUSTRATED) |
| 17 | WCI 3206151 |
| 17A | WCI 3206150 |
| 18 | HANDLE |
| 19 | WCI 5303281601 |
| 20 | SUPPORT-DOOR RACK, EXTENDS .56``, RH |
| 21 | SUPPORT-DOOR RACK, EXTENDS .56``, LH |
| 22 | RACK-DOOR, 23.16`` X 1.12`` |
