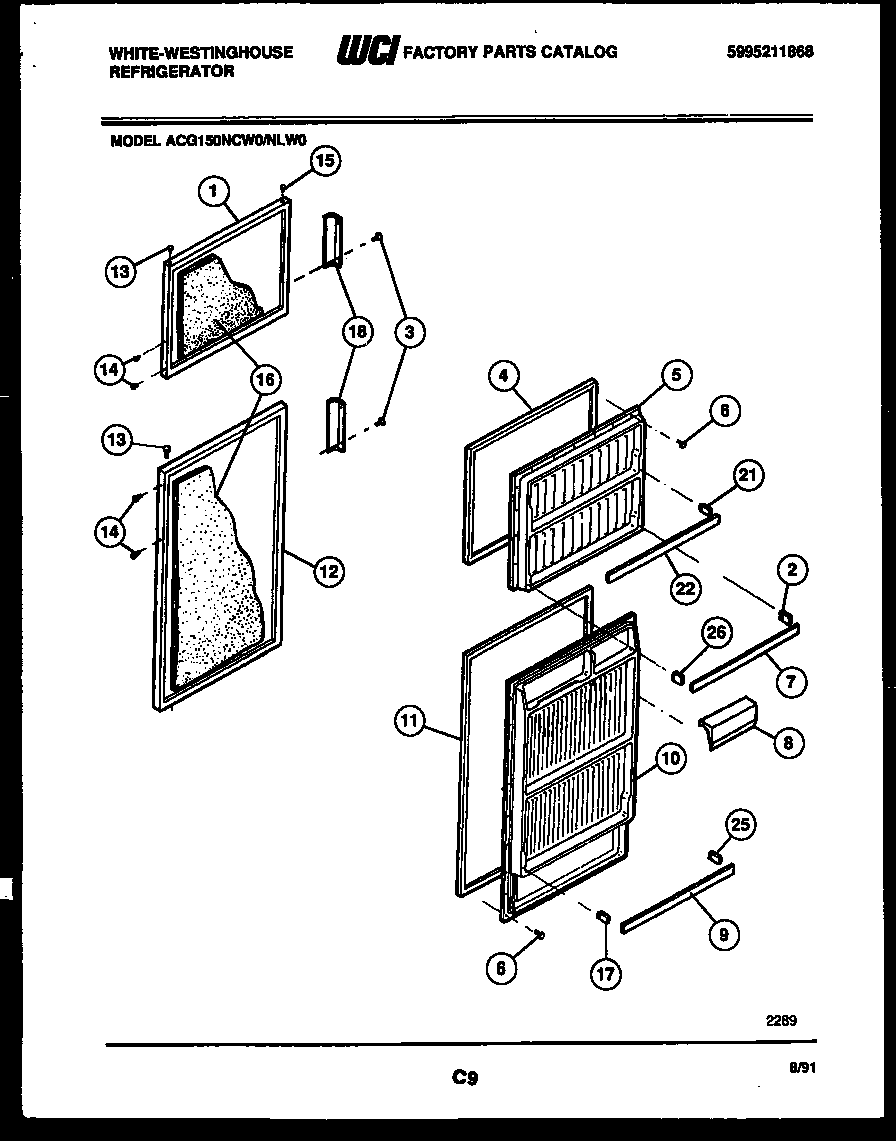

ACG150NCD0 02 – DOOR PARTS

Products

Position	Product
1	WCI 5303916965
2	SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
3	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
4	GASKET, FRZR DOOR, BROWN, MAGNETIC
5	WCI 5303276517
6	5304455651 Frigidaire Refrigerator Screw
8	WCI 5303206149
9	215366002 Frigidaire Refrigerator Door Wide Rack
10	WCI 5303280624
11	218730603 Frigidaire Door Gasket
12	WCI 5303916980
13	BEARING-HINGE
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
16	INSULATION-BULK (NON-ILLUSTRATED)
17	WCI 3206151
18	HANDLE
21A	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
21	3206165 Frigidaire Bar Endcap Right Hand
22	RACK-DOOR, 22.59“ X 1.12“
25	WCI 3206150
26	SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
