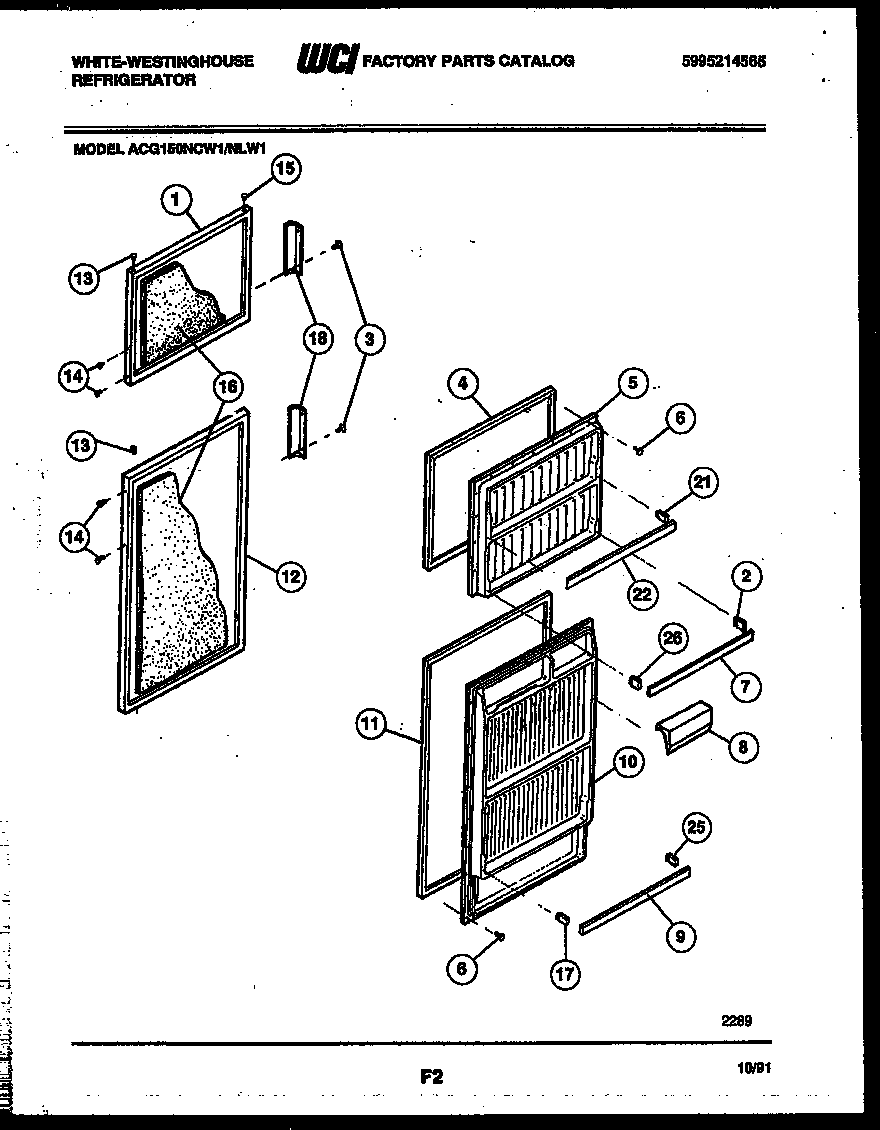

ACG150NCD1 02 – DOOR PARTSadmin2025-04-26T08:42:24+00:00ACG150NCD1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WCI 5303916965 |
| 2 | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 3 | SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2 |
| 4 | GASKET, FRZR DOOR, BROWN, MAGNETIC |
| 5 | WCI 5303276517 |
| 6 | 5304455651 Frigidaire Refrigerator Screw |
| 8 | WCI 5303206149 |
| 9 | 215366002 Frigidaire Refrigerator Door Wide Rack |
| 10 | WCI 5303280624 |
| 11 | 218730603 Frigidaire Door Gasket |
| 12 | WCI 5303916980 |
| 13 | BEARING-HINGE |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 15 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 16 | INSULATION-BULK (NON-ILLUSTRATED) |
| 17 | WCI 3206151 |
| 18 | HANDLE |
| 21 | 3206165 Frigidaire Bar Endcap Right Hand |
| 21A | WCI 320616 |
| 22 | RACK-DOOR, 22.59`` X 1.12`` |
| 25 | WCI 3206150 |
| 26 | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
