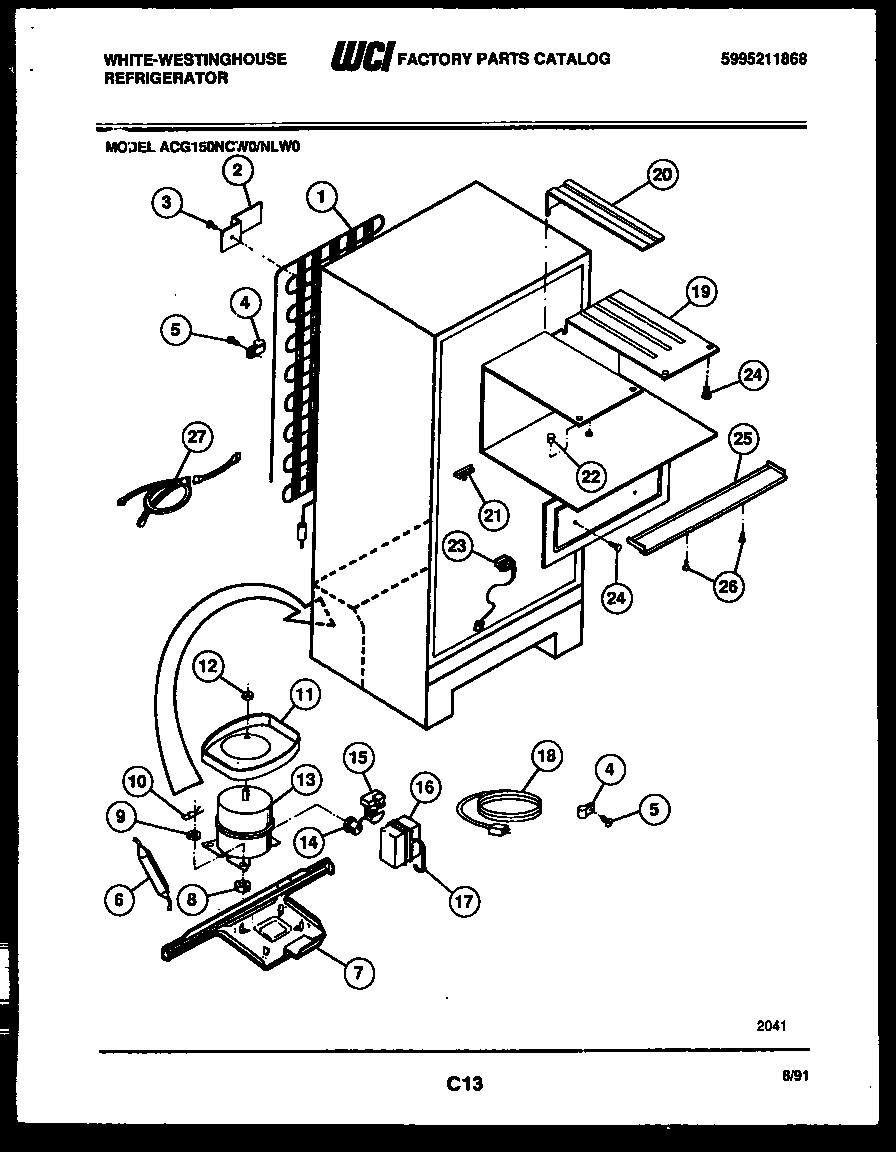

ACG150NLW0 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

ACG150NLW0 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

ACG150NLW0 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*50302WCI 3916557
1WCI 5303001341
2BRACKET-MTG (4)
35308000039 Frigidaire Refrigerator Screw
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
45303001199 Frigidaire Refrigerator Wiring Harness Clamp
55304455651 Frigidaire Refrigerator Screw
65303305677 Frigidaire Replacement Filter Dryer Filters
7WCI 3206126
7A5304500008 Frigidaire Oven Screw
8218513300 Frigidaire Refrigerator Compressor Mount Grommet
9WASHER-COMPR MTG
10CLIP – COMPRESSOR MTG
11BPAN RETAINER KIT, SERVICE
11A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
11PAN-DEFROST DRAIN, ORIG/SVCE COMPR
12Nut,lock `1/4-20 ,drain pan mtg
13COMPRESSOR WITH ELECTRICALS
13ACAPACITOR-RUN (NON-ILLUSTRATED)
14WCI 5303276514
15RELAY-TL
175303006412 Frigidaire Refrigerator Cover Mounting Strap
18CORD-ELECTRIC POWER
19WCI 5303211497
20WCI 3200734
21CLAMP-CONTROL BULB (NON-ILLUSTRATED)
22WCI 08006983
23WCI 5303211511
245304455650 Frigidaire Refrigerator Screw
25WCI 5303211504
26WCI 5303001380
27WCI 5303211512
