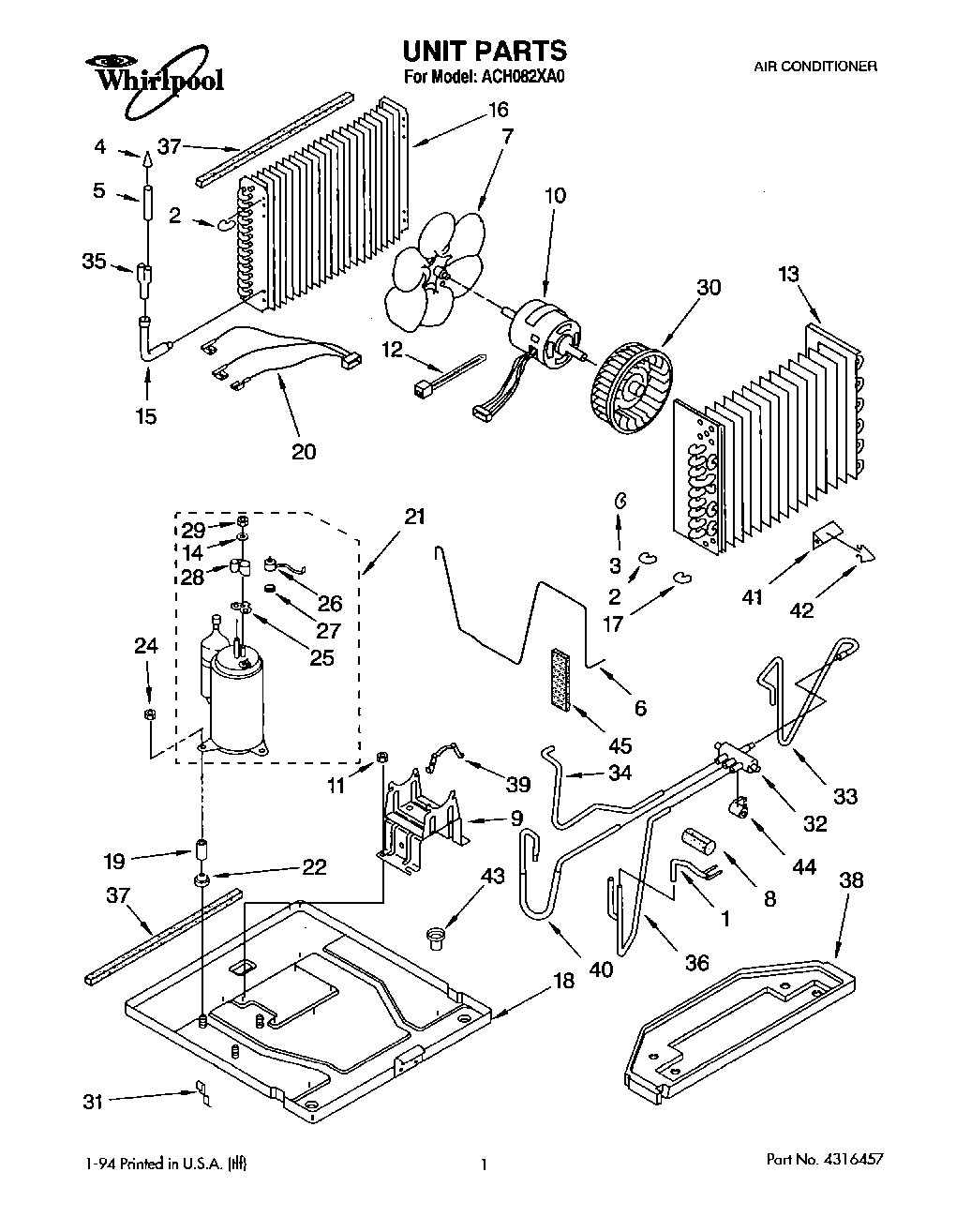

ACH082XA0 01 – UNIT, LITERATURE

Products

Position	Product
	Wiring Diagram
	Instructions, Installation
	Use & Care Guide
	Tech Sheet
1	Tube, Suction
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes No. 26)
6	Tube, Restrictor
7	Blade, Fan (Condenser)
8	Insulation, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Tube, Connecting
16	Condenser
17	Tube, Riser (2)
18	Base
19	Sleeve, Compressor (3)
20	Harness, Wiring (Compressor Service)
21	4317916 Whirlpool Air Conditioner Compressor
22	Grommet
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	WP1161170 Whirlpool Air Conditioner Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
31	Clamp (2)
32	Reversing, Valve
33	Tube, Valve /Disc.
34	Tube, Valve/Cond.
35	Tube, Flow Divider
36	Tube, Valve/ Evap.
37	Seal, Condenser Bottom
37	WP854334 Whirlpool Air Conditioner Sealing Strip
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Tube / Valve to Accum.
41	Anticipator, Temperature
42	Clip, Anticipator
43	Cup, Condensate Drain
44	Coil, Solenoid
45	Seal, Anti-Rub
