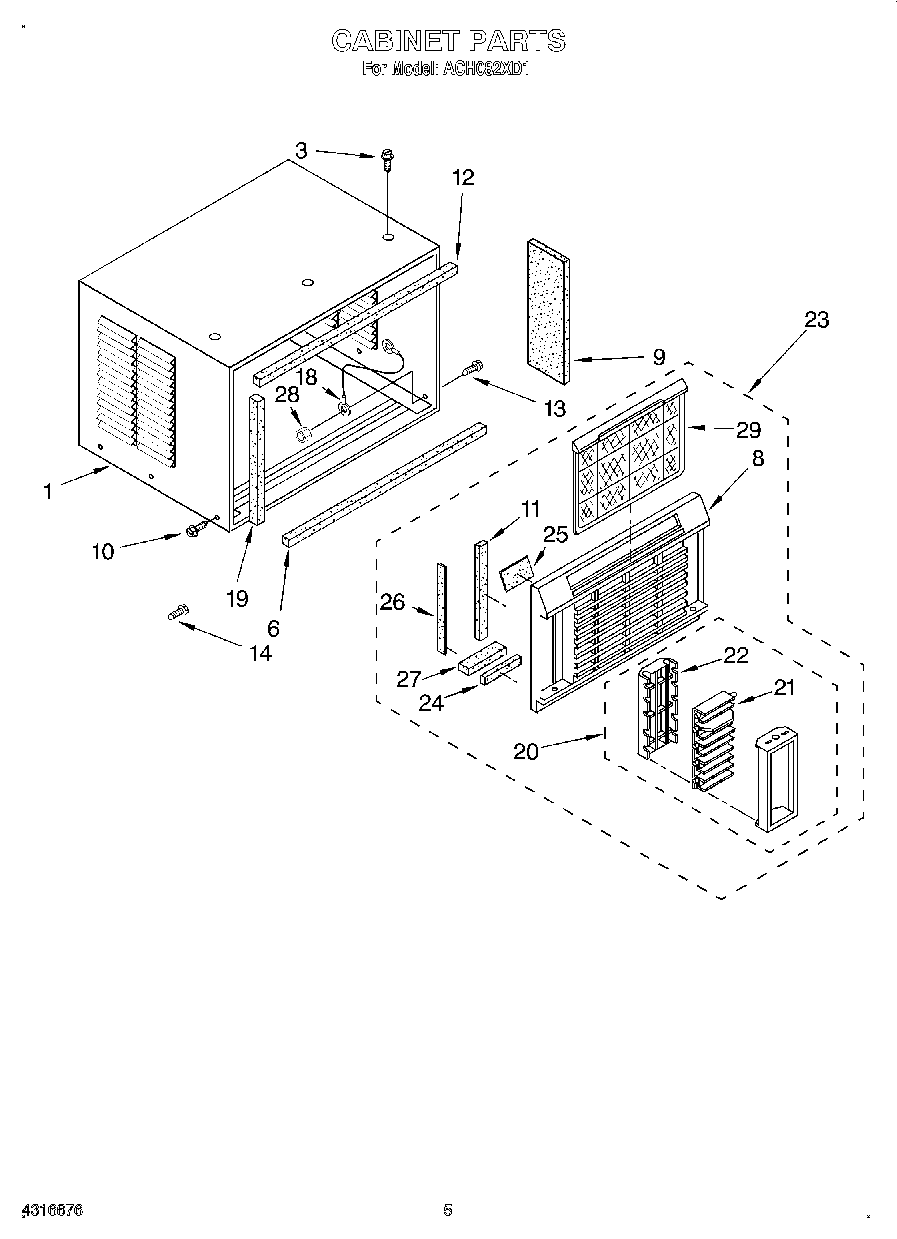

ACH082XD1 03 – CABINET

Products

Position	Product
1	Cabinet
3	WP489069 Whirlpool Compactor Screw
6	Seal
8	Cabinet Front
9	Insulation (2)
10	Screw, 8-18 x 3/8
11	Seal, Side (2)
12	Seal, Cabinet Top
13	Screw, 8 x 3/8
14	Screw (Window Lock Bracket)
18	Wire, Ground
19	Seal, Strip (2)
20	Cartridge, Complete
21	Horzontal Louver
22	Ribs, Vertical
23	Front, Complete
24	Seal, (2)
25	Seal, Front
26	Seal, Front – Sides (2)
27	Seal, Front
28	WP486255 Whirlpool Air Conditioner Nut
29	Filter
