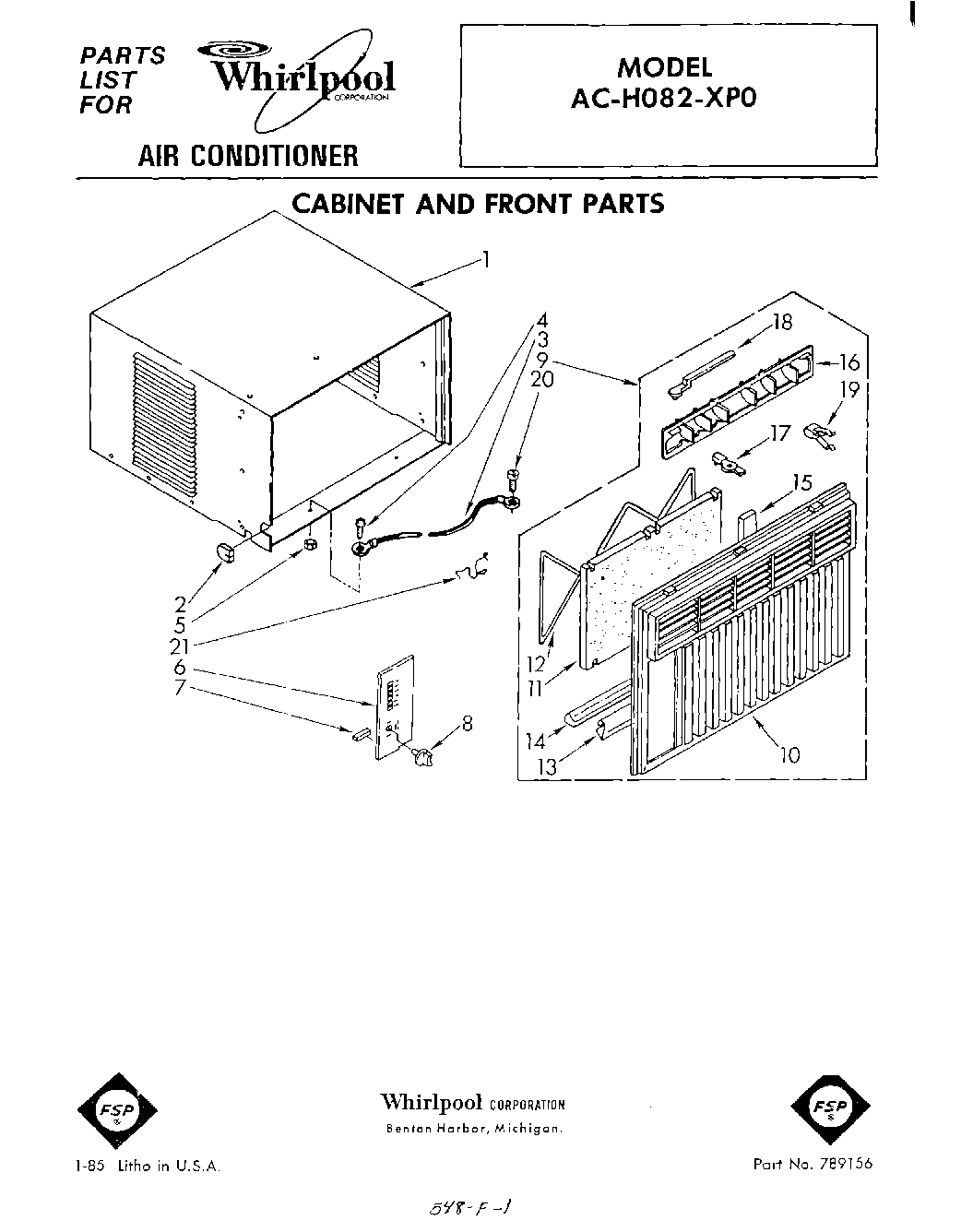

ACH082XP0 01 – CABINET AND FRONT PARTS

Products

Position	Product
1	Cabinet
2	Grommet, Appliance Cable
3	Wire, Ground
4	Screw, 8 x 3/8
5	WP486255 Whirlpool Air Conditioner Nut
6	Plate, Escutcheon
7	Spacer, Escutcheon Plate (3)
8	Knob, Control
9	Front Assembly, Cabinet (Complete)
10	Front, Cabinet
11	Filter
12	Retainer, Filter
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Seal
15	Seal
16	Louver, Vertical
17	Handle, Vertical Louver (2)
18	Link, Vertical Louver (2)
19	Detent Spring (2)
20	Screw, 8 x 3/8
21	Clip, Mtg. (2) (Base to Front)
