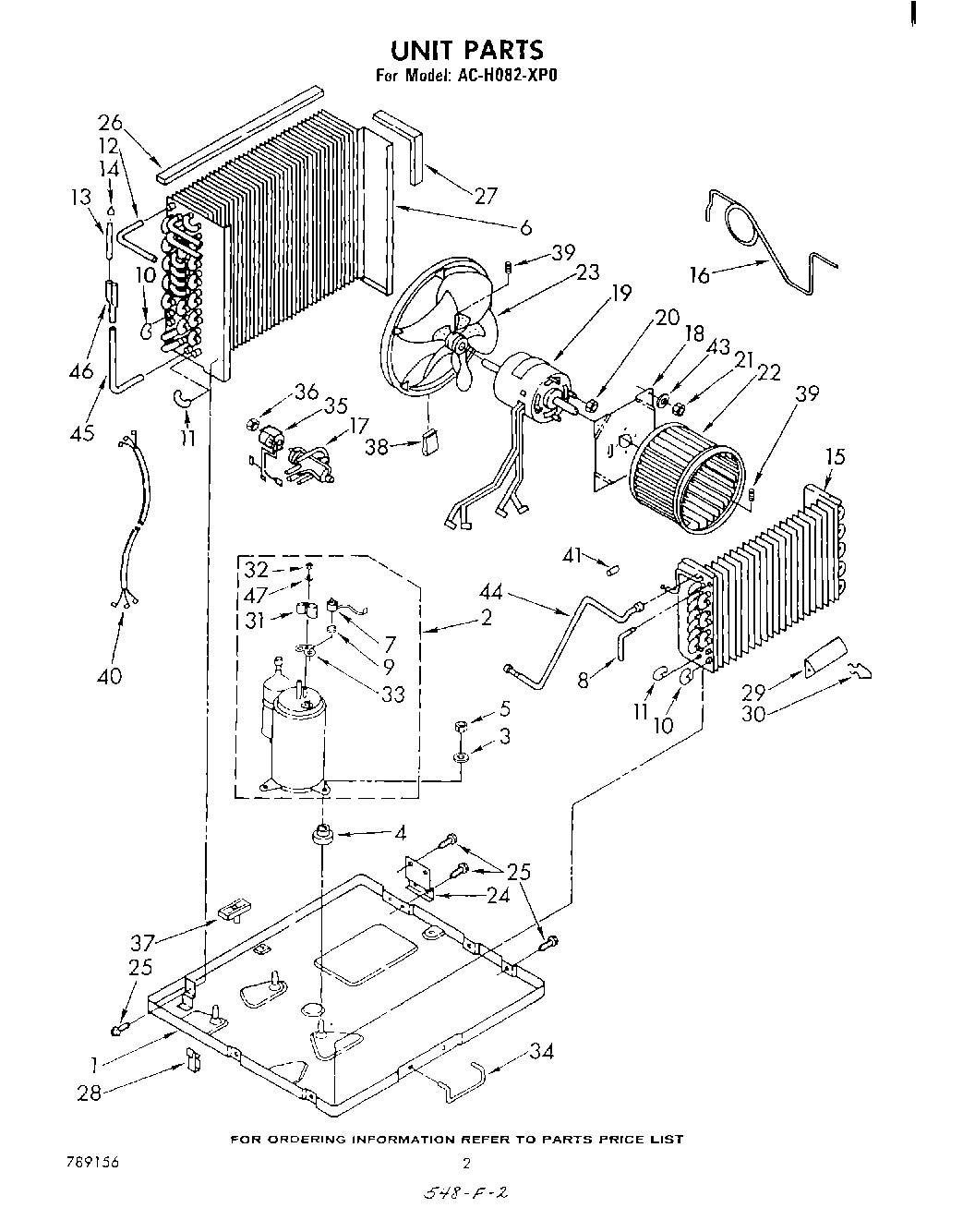

ACH082XP0 02 – UNIT PARTS

Products

Position	Product
1	Base
2	WPL 813556
3	WP120393 Whirlpool Washer Assembly
4	WP950021 Whirlpool Grommet
6	WPL 951449
7	WPL 951454
8	Bend, 90~
9	Spring, Overload
10	Bend, Return Evaporator (11)
11	Bend, Return Condenser (4) Evaportor (10)
12	Tube Inlet
13	Tube & Strainer (Includes Item 23)
14	Strainer
15	WPL 951446
16	WPL 951448
17	Reversing Valve (Use W/852978)
18	WPL 998024
19	Motor, Fan
20	WP488130 Whirlpool Air Conditioner Nut
21	Nut, Hex (4)
22	Wheel, Blower
23	Blade, Fan
24	WPL 647824
25	WP489069 Whirlpool Compactor Screw
26	WPL 649609
27	WPL 649610
28	Clamp (2)
29	Anticipator, Temperature
30	Clip, Anticipator
31	WP950036 Whirlpool Cover Assembly
32	WP950027 Whirlpool Mounting Nut
33	WP950035 Whirlpool Cover Gasket
34	WPL 647971
35	Solenoid Coil (Use W/467396)
36	WP488826 Whirlpool Nut
37	WPL 647850
38	Clip, Balancing
39	Setscrew, 5/16 x 1/4
40	Harness, Wiring
41	Strainer
43	Washer, Repair (4)
44	Muffler, Tube (Includes No. 41)
45	Tube, Outlet
46	Tube, Flow Divider
47	No Drip Tape (For Sweating Tubes)
47	978026 Whirlpool Refrigerator Primary Valve
47	978027 Whirlpool Refrigerator Primary Valve
47	978030 Whirlpool Refrigerator Valve
47	VALVE, ACCESS (1/2“)
47	WP978025 Whirlpool Refrigerator Valve
47	Gasket, Nut
47	Oil, Turbine 1 Fl. Oz.
47	Kit, Evaporator Repair (Aluminum Epoxy)
47	VALVE, ACCESS (5/8“)
