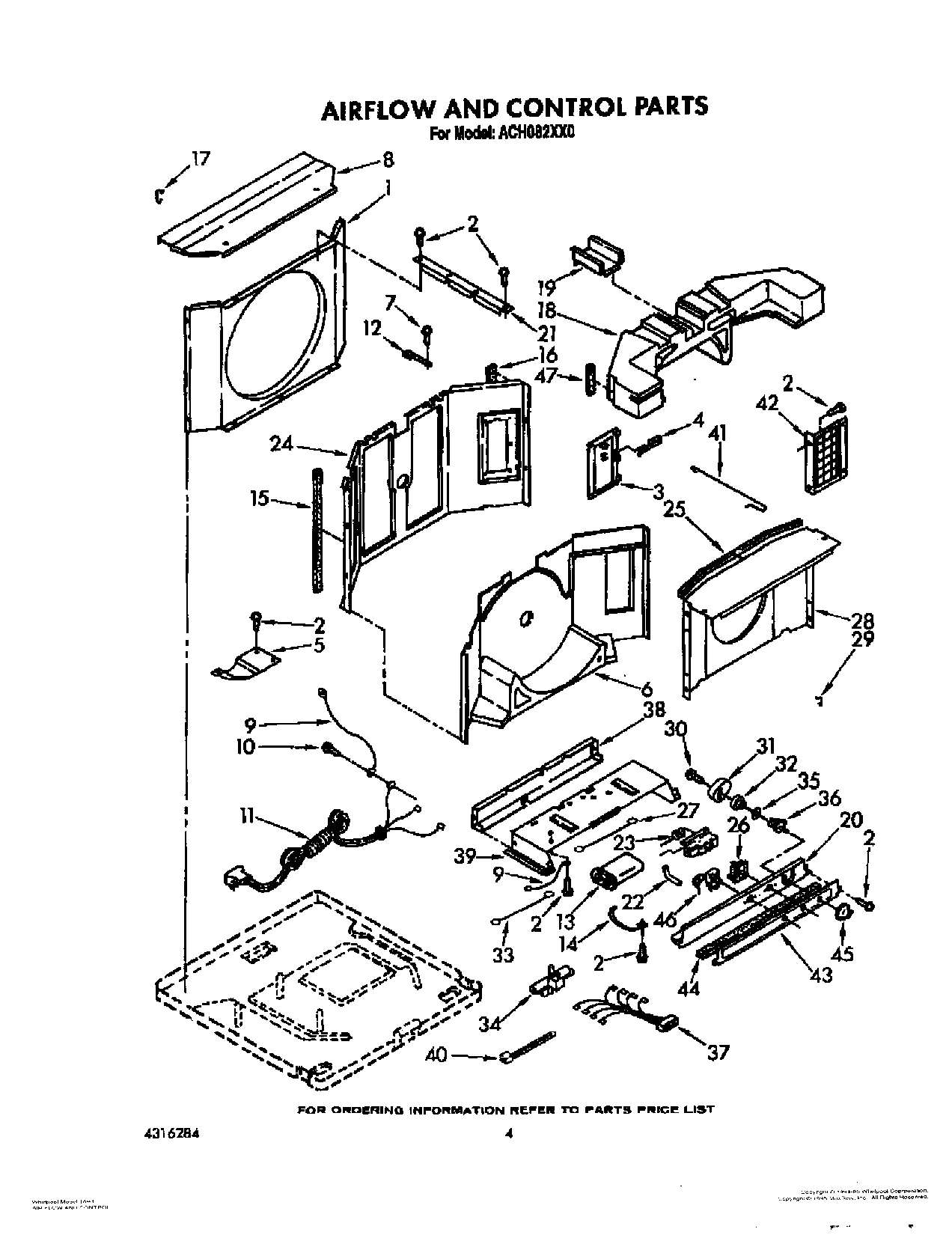

ACH082XX0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	WP489069 Whirlpool Compactor Screw
3	Door, Exhaust
4	Spring, Door
5	Cup, Condensate
6	Scroll (Lower)
7	WP488729 Whirlpool Refrigerator Door Screw
8	Top, Condenser
9	Wire, Ground
10	Screw, 6-32 x .175
11	Cord, Appliance
12	Strap, Dividing Wall
13	Capacitor, Running
14	Bracket, Capacitor
15	Seal, Left Side
16	Seal, Right Side
17	Clip, Shroud (2)
18	Scroll, Upper
19	Raceway, Wiring
20	Panel, Control
21	Support, Unit (2)
22	Insulation, Sleeve
23	Bracket – R.H. Door Stop
24	Wall, Dividing
25	Seal, Evaporator
26	Switch Rotary
28	Shroud Assembly, Evaporator
29	Clip, Shroud
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
33	Wire, Thermostat To Switch
34	Valve, Reversing
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring Control Box
38	Control Box
39	Back Panel, Control Box
40	WPW10339879 Whirlpool Wire Tie
41	Wire, Exhaust Door
42	Impeller Guard (2)
43	Escutcheon
44	WP854334 Whirlpool Air Conditioner Sealing Strip
45	Knob, Controls (4)
46	Control, Temperature
47	Seal, Housing
