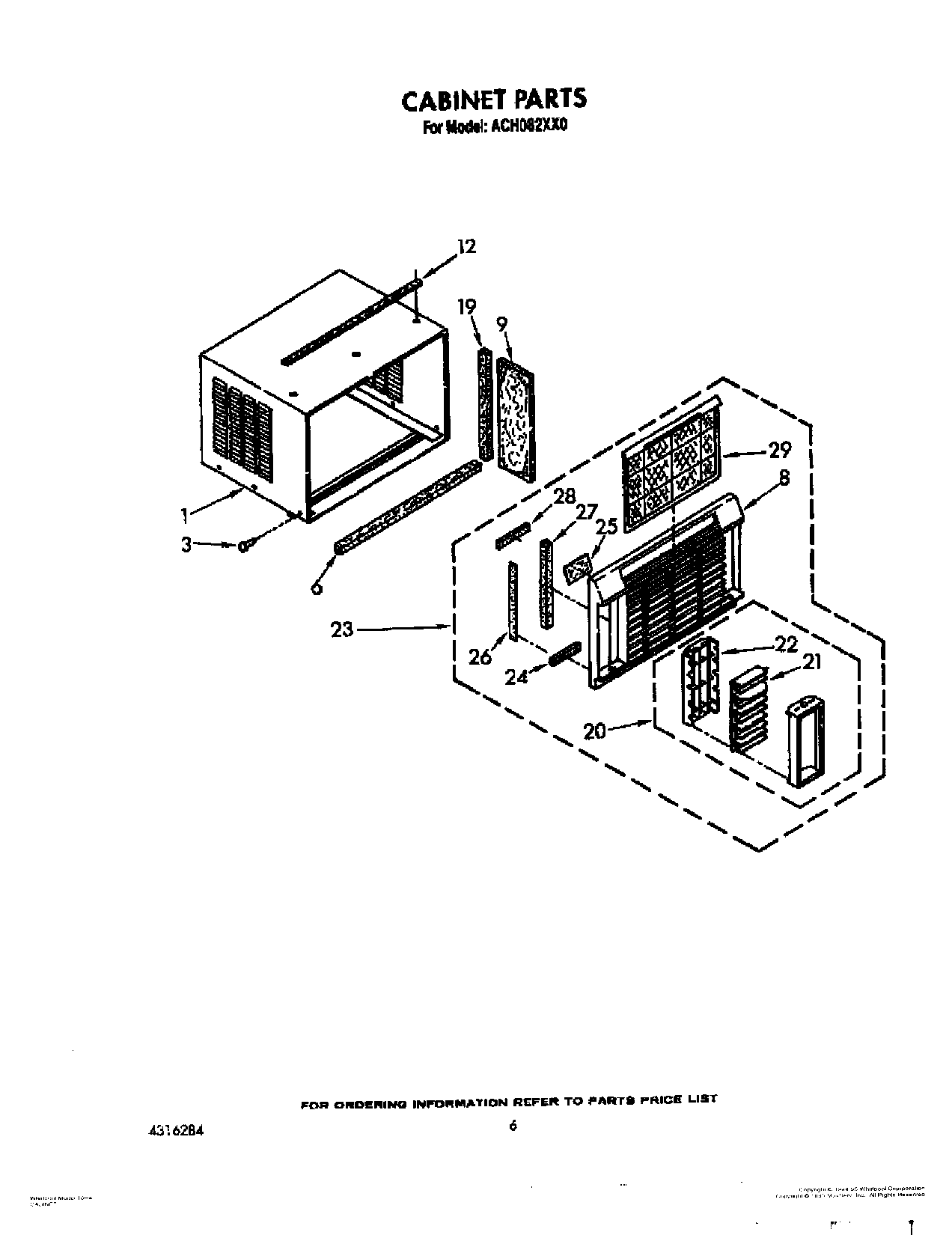

| 1 | Cabinet |
| 3 | WP489069 Whirlpool Compactor Screw |
| 6 | Seal |
| 8 | Cabinet Front |
| 9 | Insulation (2) |
| 12 | Seal, Cabinet Top |
| 19 | Seal, Strip (2) |
| 20 | Cartridge, Complete |
| 21 | Horizontal Louver |
| 22 | Ribs, Vertical |
| 23 | Front, Complete |
| 24 | Seal (2) |
| 25 | Seal, Front |
| 26 | Seal, Front - Sides (2) |
| 27 | Seal (2) |
| 28 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 29 | Filter |
