ACH102XX0 02 – UNIT

ACH102XX0 02 – UNIT

Written by

in

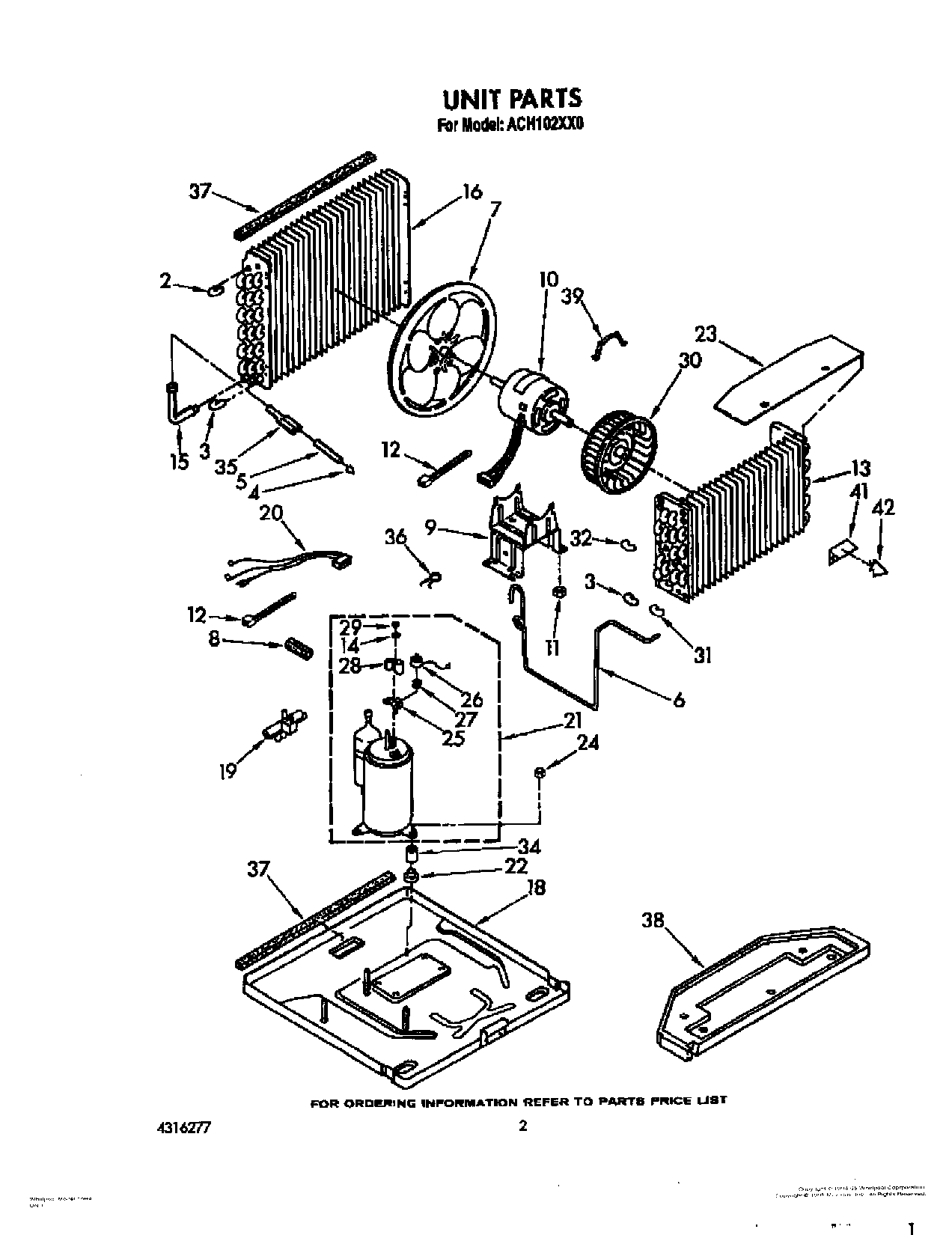

ACH102XX0 02 – UNIT

Products

PositionProduct
2Bend, Return Condenser (10)
3Bend, Return Condenser (4)
4Strainer
5Tube & Strainer (Includes Item 23)
6Tube, Restrictor (2)
7Blade, Fan (Condenser)
8Seal, Suction Tube
9Bracket, Fan Motor
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12WPW10339879 Whirlpool Wire Tie
13Evaporator
14Gasket, Nut
15Tube, Connecting
16Condenser
18Base
19Valve, Reversing
20Harness, Wiring (Compressor Service)
21Compressor
22WP950021 Whirlpool Grommet
23Insulation, Evaporator Shroud
24Locknut (3)
25WP950035 Whirlpool Cover Gasket
26Overload
27Spring, Overload
28WP950036 Whirlpool Cover Assembly
29WP950027 Whirlpool Mounting Nut
30Wheel, Blower (Evaporator)
31Bend Return
32Bend, Return Condenser (1)
34Sleeve (3)
35Tube, Flow Divider
36Clamp, Tube (2)
37Seal, Condenser Bottom
37WP854334 Whirlpool Air Conditioner Sealing Strip
38Pan, Drain
39WPY015825 Whirlpool Motor Clip
41Anticipator, Temperature
42Buy Guide
42Wiring Diagram
42Tech Sheet
42Use & Care Guide
42Instructions, Installation
42Clip, Anticipator
42Literature Parts (List, Repair Parts)
