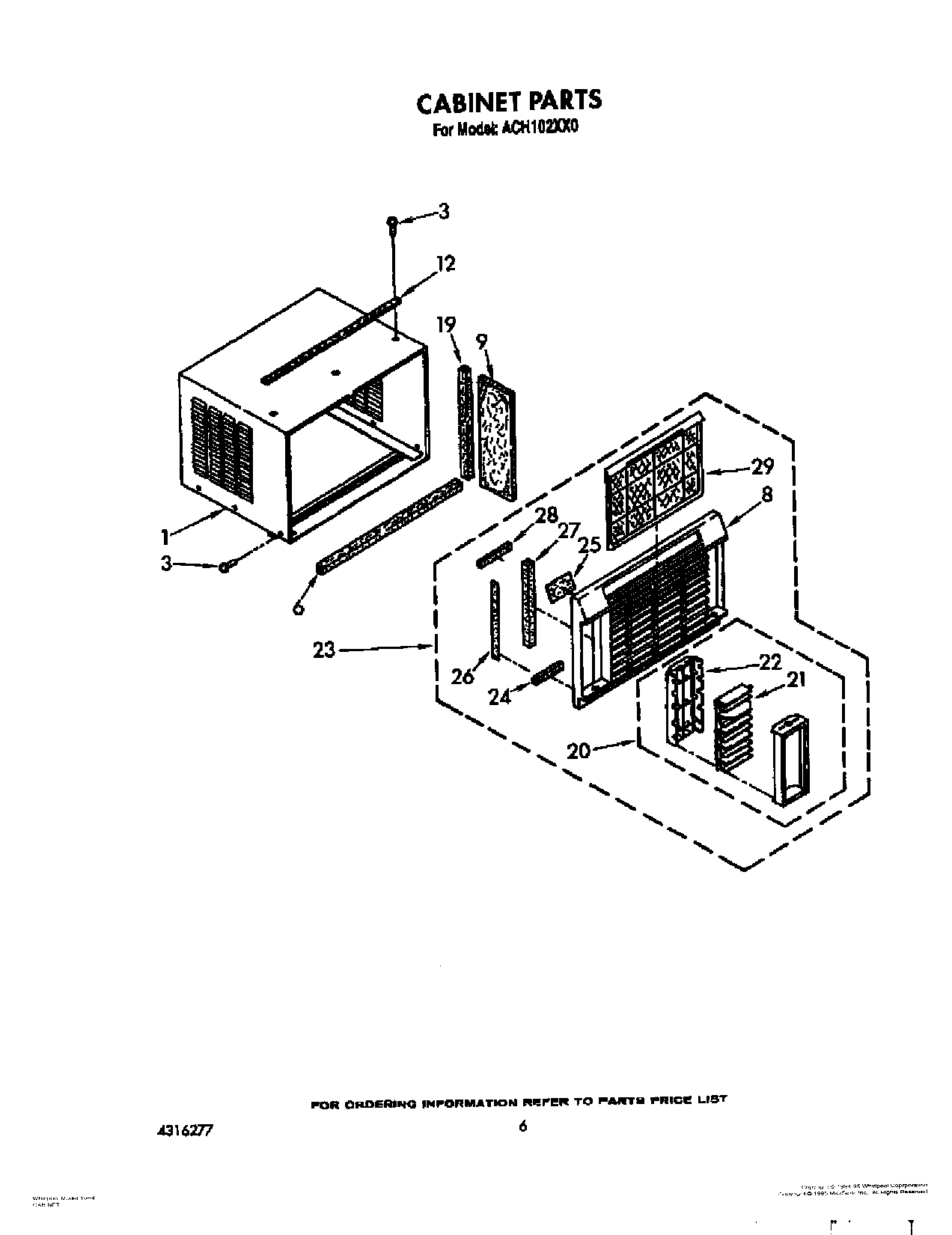

ACH102XX0 04 – CABINET

Written by

Products

Position	Product
1	Cabinet
3	WP489069 Whirlpool Compactor Screw
6	Seal
8	Cabinet Front
9	Insulation (2)
12	Seal, Cabinet Top
19	Seal, Strip (2)
20	Cartridge, Complete
21	Horizontal Louver
22	Ribs, Vertical
23	Front, Complete
24	Seal (2)
25	Seal, Front
26	Seal, Front – Sides (2)
27	Seal (2)
28	WP854334 Whirlpool Air Conditioner Sealing Strip
29	Filter
