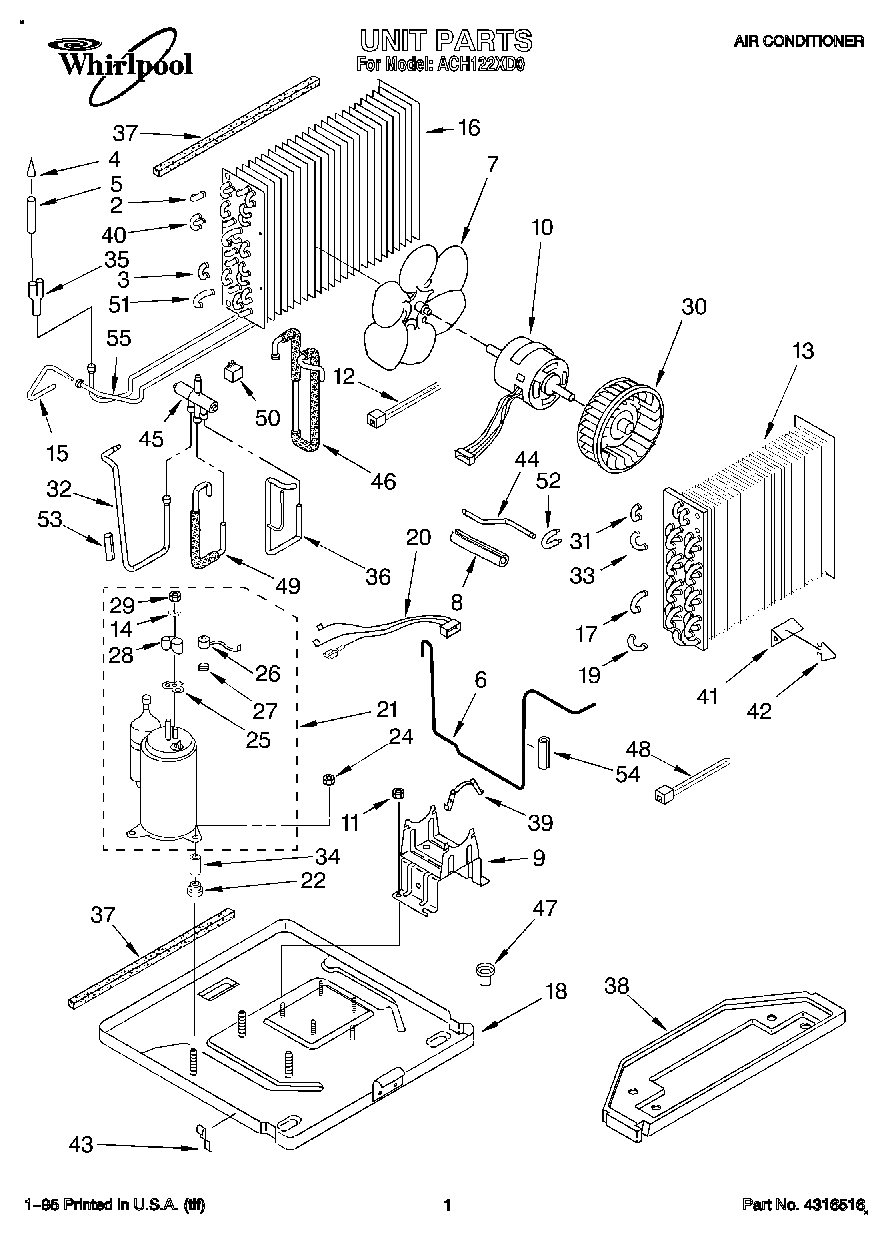

ACH122XD0 01 – UNIT, LITERATURE

ACH122XD0 01 – UNIT, LITERATURE

Written by

in

ACH122XD0 01 – UNIT, LITERATURE

Products

PositionProduct
Instructions, Installation
Use and Care Guide
Diagram, Wiring
Tech Sheet
2Bend, Return Condenser (10)
3Bend, Return Condenser (4)
4Strainer
5Tube, Outlet (Includes Item 4)
6Tube, Restrictor (2)
7Blade, Fan (Condenser)
8Insulation, Suction Tube
9Bracket, Fan Motor
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12WPW10339879 Whirlpool Wire Tie
13Evaporator
14Gasket, Nut
15Tube, Wet Loop Connect
16Condenser
17Bend, Return Evaporator (4)
18Base
19Return Bend (2)
20Harness, Wiring (Compressor Service)
21Compressor
22WP950021 Whirlpool Grommet
24Locknut (3)
25WP950035 Whirlpool Cover Gasket
26Overload (Production)
26Overload, Protector
27Spring, Overload
28WP950036 Whirlpool Cover Assembly
29WP950027 Whirlpool Mounting Nut
30Wheel, Blower (Evaporator)
31Bend, Return Evaporator (11)
32Tube Assy., Valve To Condenser
33Bend, Return Evaporator (4)
34Sleeve (3)
35Tube, Flow Divider
36Tube Assy., Valve to Evaporator
37Seal, Condenser Bottom
37WP854334 Whirlpool Air Conditioner Sealing Strip
38Pan, Drain
39WPY015825 Whirlpool Motor Clip
40Bend, Return (3-Way)
41Anticipator
42Clip, Anticipator
43Clamp (2)
44Tube, Suction
45Valve, Reversing
46Tube Assy., Valve to Discharge
47Cup, Condensate Drain
49Tube Assy., Valve to Accumulator
50Coil, Solenoid
51Tube, Riser (2)
52Bend Return Three-Way
53Dampener, T
54WPL 1162344
55Tube, Wet Loop
