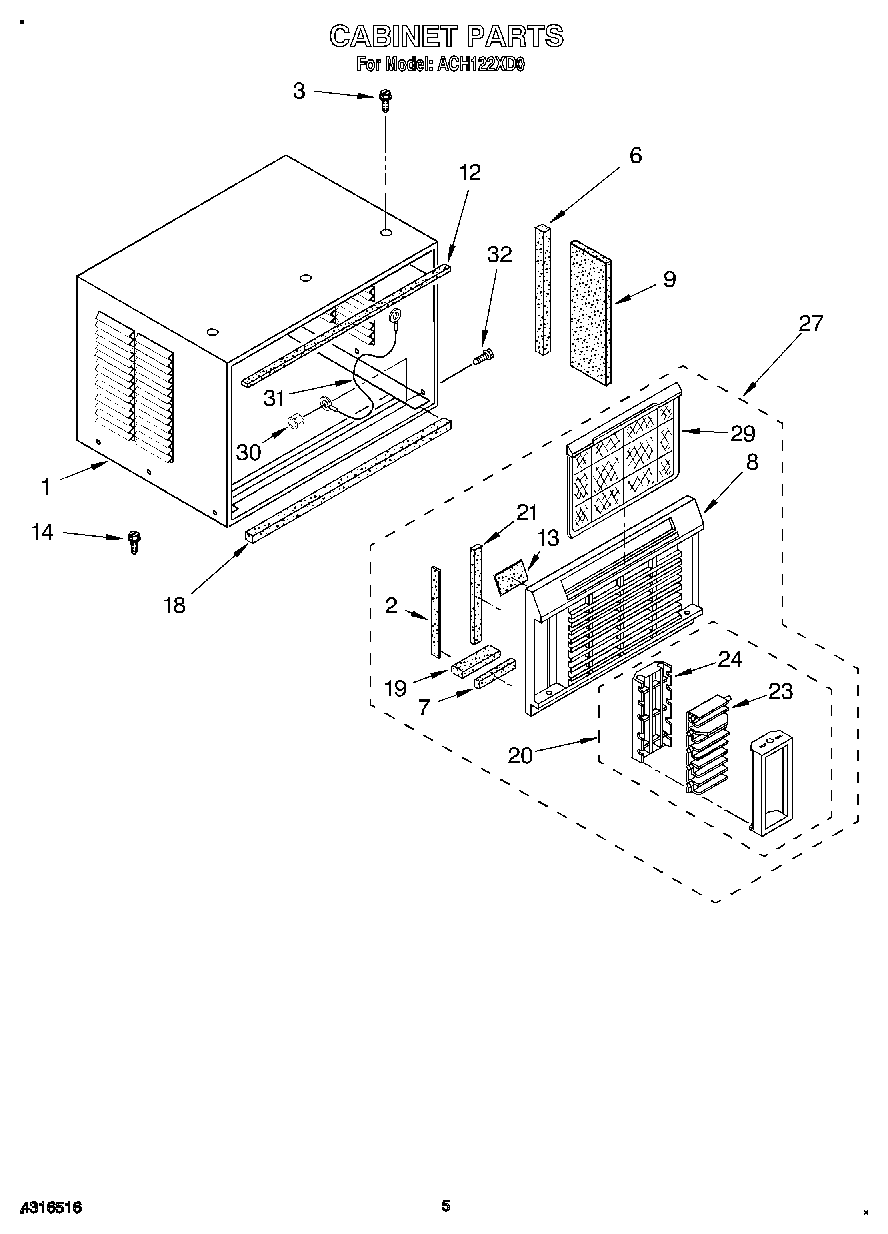

ACH122XD0 03 – CABINET

Products

PositionProduct
1Cabinet
2Seal, Front – Sides (2)
3WP489069 Whirlpool Compactor Screw
6Seal, Strip (2)
7Seal, (2)
8Cabinet Front
9Insulation (2)
12Seal, Cabinet Top
13Seal, Front
14Screw (Window Lock Bracket)
18Seal
19Seal, Front
20Cartridge, Complete
21Seal, Side (2)
23Horzontal Louver
24Ribs, Vertical
27Front, Complete
29Filter
30WP486255 Whirlpool Air Conditioner Nut
31Wire, Ground
32Screw, 8 x 3/8
