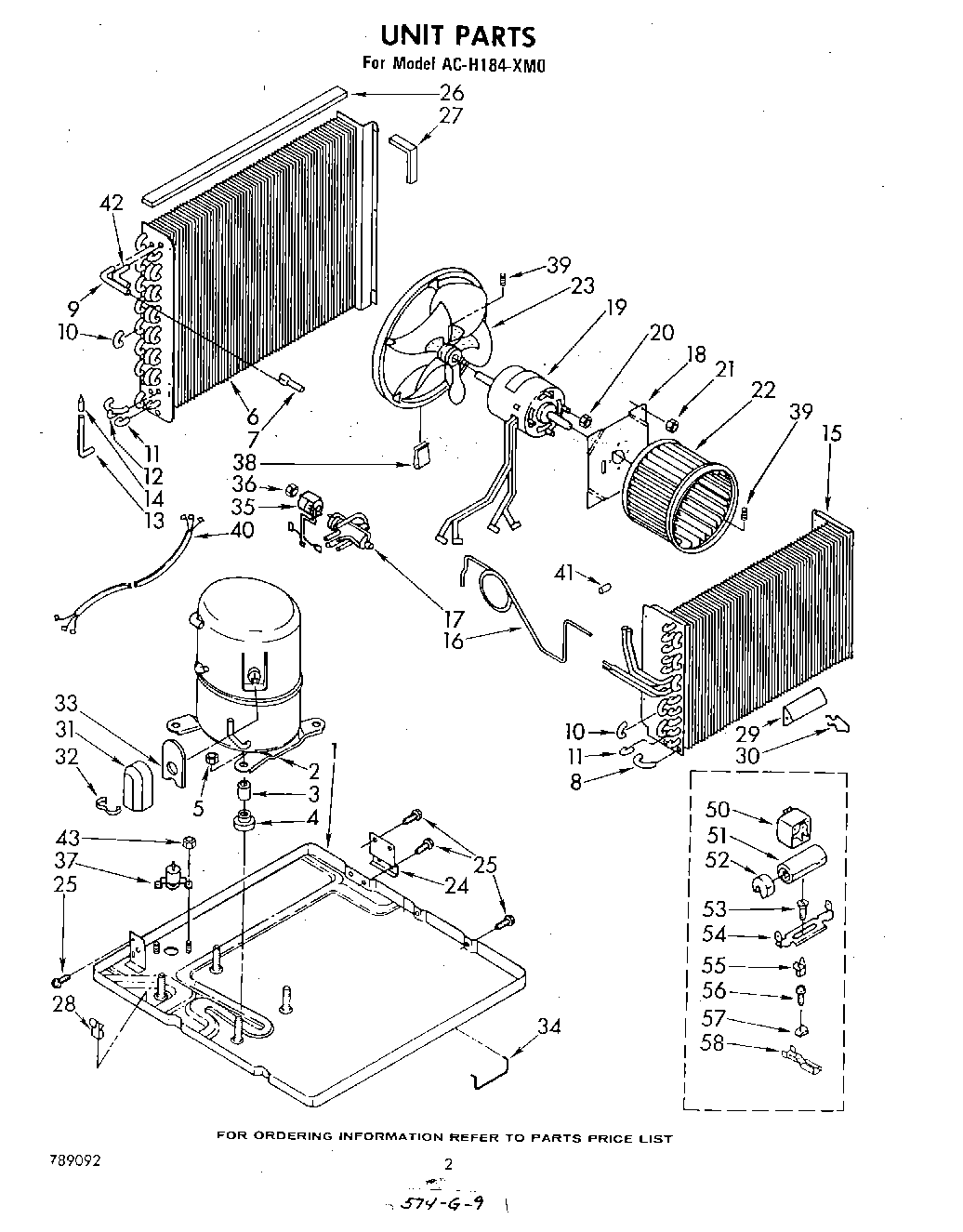

ACH184XM0 02 – UNIT PARTS

Products

Position	Product
1	Base, Unit
2	Compressor
3	Sleeve (4)
4	Grommet (4)
5	Locknut (3)
6	WPL 951048
7	Tube, Flow Divider
8	Bend, Return Condenser (3) Evaporator (1)
9	Tube, 90~ Connect
10	Bend, Return Evaporator (11)
11	WP855199 Whirlpool Bend Return
12	Bend, Return (3-Way)
13	Tube & Strainer (Includes Item 23)
14	Strainer
15	WPL 951046
16	Tube, Restrictor (41.0 Length) (2)
17	Valve, Reversing
18	WPL 998024
19	WPL 947215
20	WP488130 Whirlpool Air Conditioner Nut
21	Nut, Hex (4)
22	Wheel, Blower
23	Blade, Fan
24	WPL 647824
25	WP489069 Whirlpool Compactor Screw
26	WPL 649609
27	WPL 649610
28	Clamp (2)
29	Anticipator
30	Clip
31	Cover, Terminal
32	Strap, Terminal Cover
33	Gasket, Terminal
34	WPL 647971
35	WPL 947233
36	WP488826 Whirlpool Nut
37	Valve, Condensate
38	Clip, Balancing
39	Setscrew, 5/16 x 1/4
40	Harness, Wiring
41	Strainer
42	WPL 951051
43	Nut, Hex 1/4-20
50	Relay (Component Of Start Kit)
51	Capacitor (Component Of Start Kit)
52	Cap, Capacitor (Component Of Start Kit)
53	Screw, 10 x 5/8 (Component Of Start Kit)
54	xMultiplier, Terminal
55	Multiplier, Terminal (Component Of Start Kit)
56	WP965173 Whirlpool Dishwasher Screw
57	488660 Whirlpool Refrigerator Nut
58	978027 Whirlpool Refrigerator Primary Valve
58	WP978025 Whirlpool Refrigerator Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
58	WPL 485883
58	VALVE, ACCESS (1/2“)
58	Oil, Turbine 1 Fl. Oz.
58	Kit, Evaporator Repair (Aluminum Epoxy)
58	No Drip Tape (For Sweating Tubes)
58	WPL 484220
58	Clip, Terminal (Component Of Start Kit)
58	VALVE, ACCESS (5/8“)
