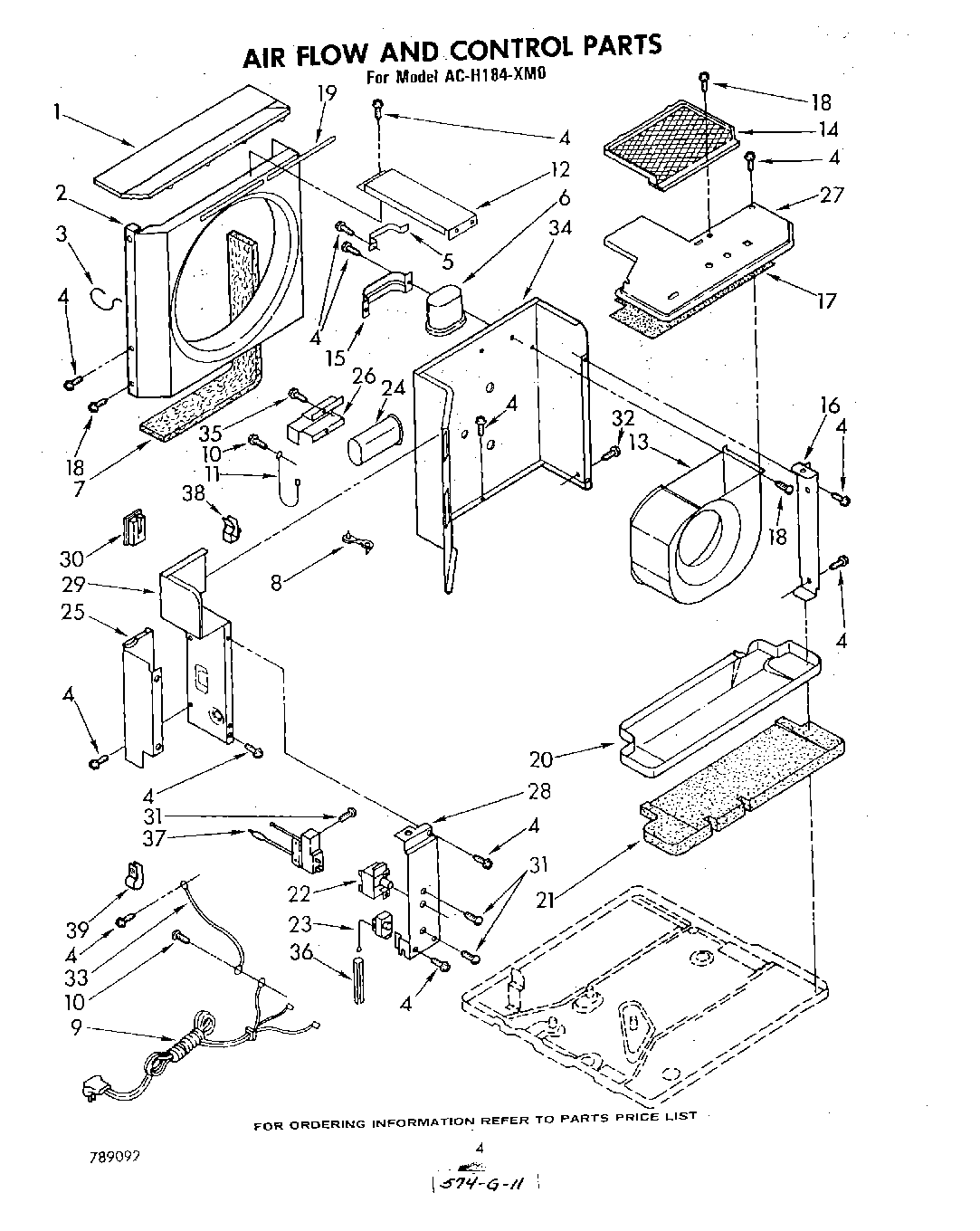

ACH184XM0 03 – AIRFLOW AND CONTROL PARTS

Products

Position	Product
1	Cover, Condenser Shroud
2	Shroud (Requires Insulation No. 469938)
3	Clip, Shroud (2)
4	WP489069 Whirlpool Compactor Screw
4	WP308685 Whirlpool Microwave Screw
5	Bracket (Lower)
6	Capacitor, Run
7	Seal, Condenser Fin
8	Clamp, Cable
9	WPL 648411
10	WPW10141604 Whirlpool Screw
11	Wire, Ground (2)
12	Support, Unit
13	Housing, Blower Wheel
14	Guard, Evaporator Impeller
15	Bracket (Upper)
16	Adapter, Evaporator Header Plate
17	WPL 948236
18	WP488729 Whirlpool Refrigerator Door Screw
19	WP854334 Whirlpool Air Conditioner Sealing Strip
19	seal, strip (shroud) (side)
20	Pan, Condensate
21	Insulation, Pan
22	WPL 950526
23	WPL 853749
24	Capacitor, Fan Motor
25	Cover, Control Access
26	Bracket, Fan Motor Capacitor
27	Cover, Evaporator
28	WPL 852219
29	Extension, Dividing Wall
30	Seal, Tube
31	Screw, 6-32 x .175
32	Screw, 8 x 3/8
33	Wire, Ground
34	Wall, Dividing (Requires 649939 Insulation)
36	Sleeve, Insulator
37	WPL 950635
38	Clamp (2)
39	Wire, 25“ Roll (Black 12 GA.)
39	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
39	WPL 950357
39	212643 Whirlpool Refrigerator Permagum Sealer
39	List, Repair Parts
39	WPL 950809
39	WPL 951058
39	WPL 855438
39	WPL 799351
39	WPL 854938
39	WPL 854937
39	Insulation, Base
39	Clamp, Cable
39	Wire, 25“ Roll (White 12 GA.)
39	Cover, Winter (27 x 19 x 6 to 27“)
39	Lacquer, Starlight Gray (1/2 Pt. Uncut)
39	Wire, Red, (25 Ft.)
39	WPL 951060
